Engine Controls - Engine (Diagnostics) (H4SO): Electrical Component Location: Location: Engine

Control module

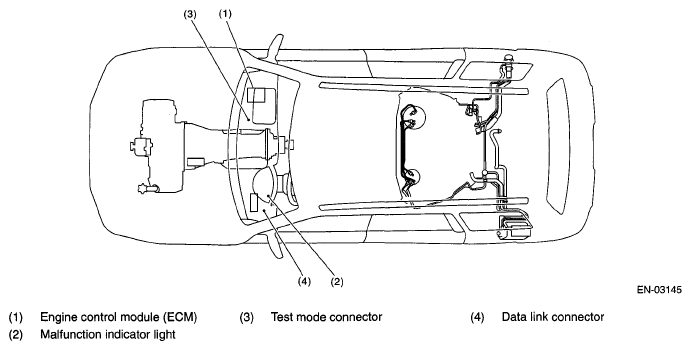

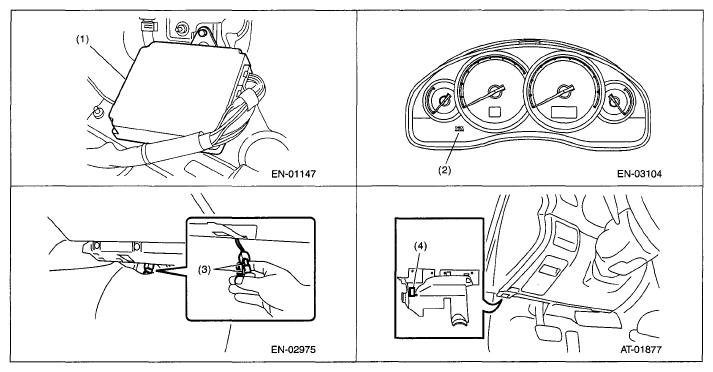

Fig 1: Identifying Control Module Electrical Component Location (1 Of 2)

Fig 2: Identifying Control Module Electrical Component Location (2 Of 2)

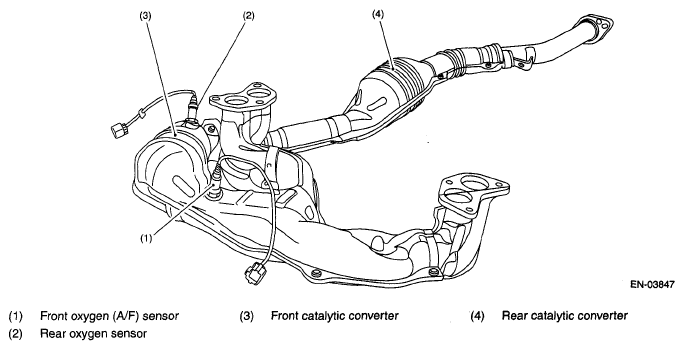

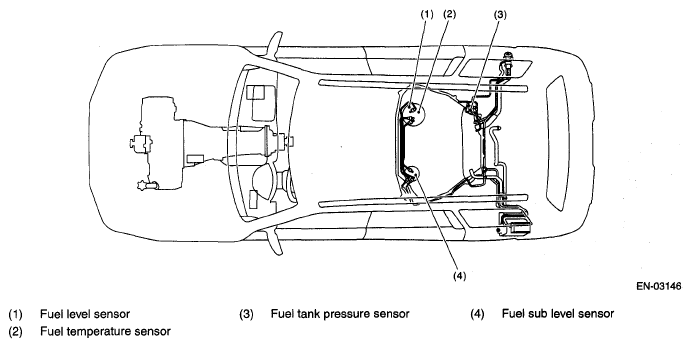

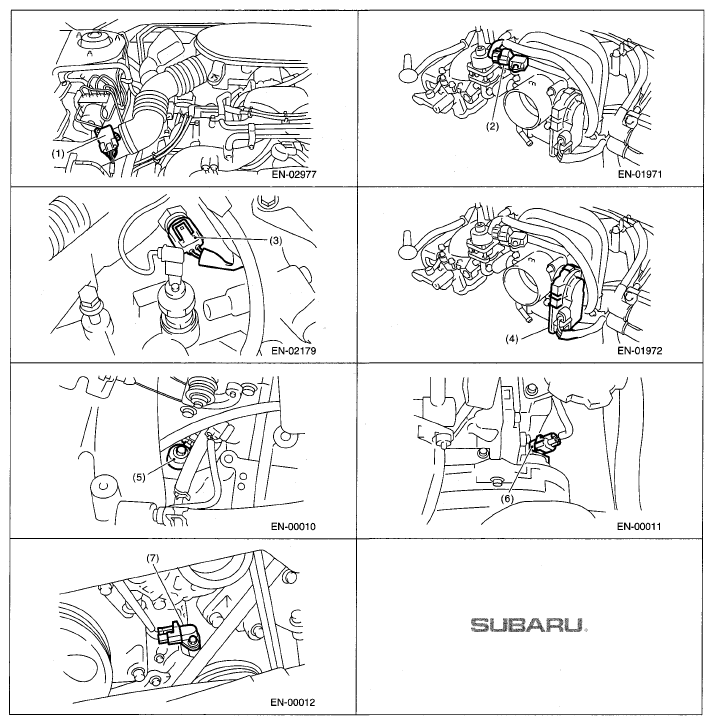

Sensor

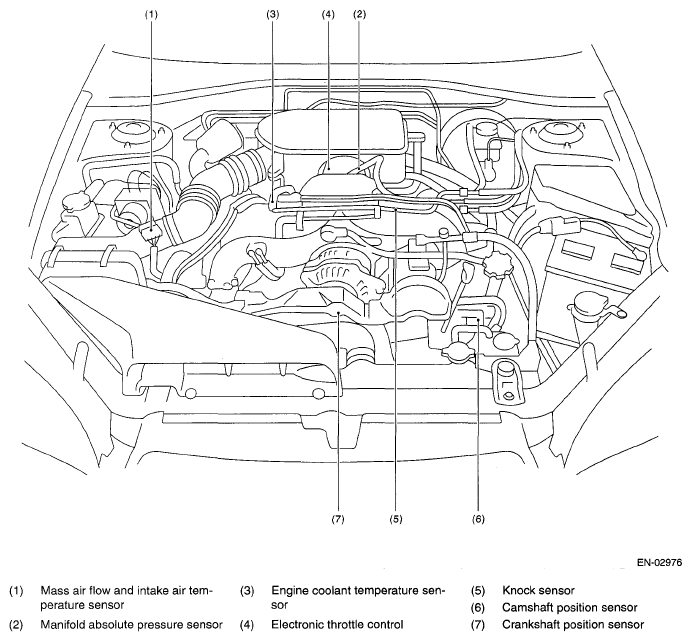

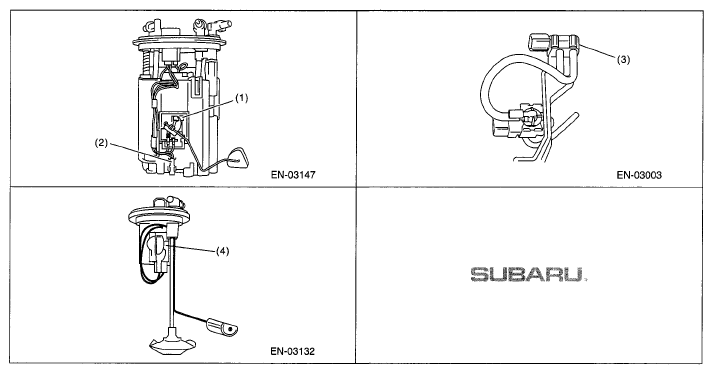

Fig 3: Identifying Sensor Electrical Component Location (1 Of 5)

Fig 4: Identifying Sensor Electrical Component Location (2 Of 5)

Fig 5: Identifying Sensor Electrical Component Location (3 Of 5)

Fig 6: Identifying Sensor Electrical Component Location (4 Of 5)

Fig 7: Identifying Sensor Electrical Component Location (5 Of 5)

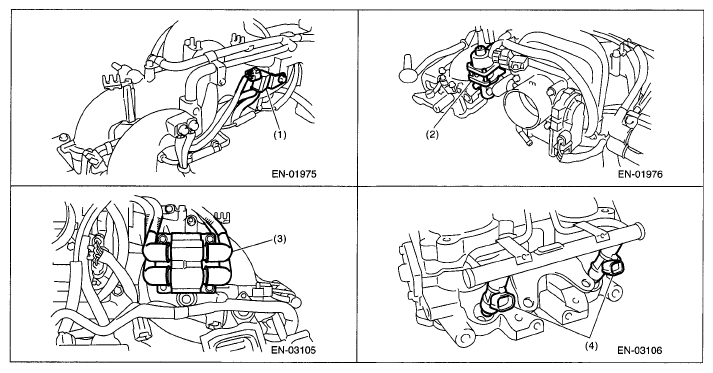

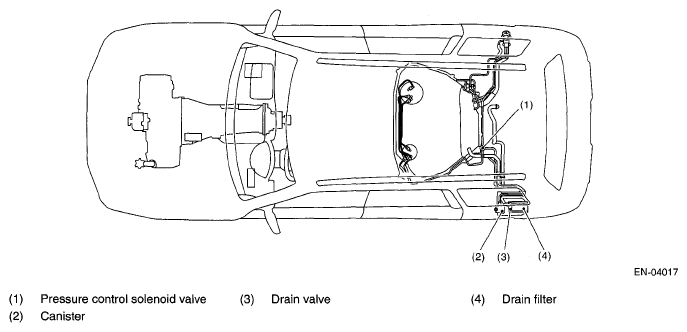

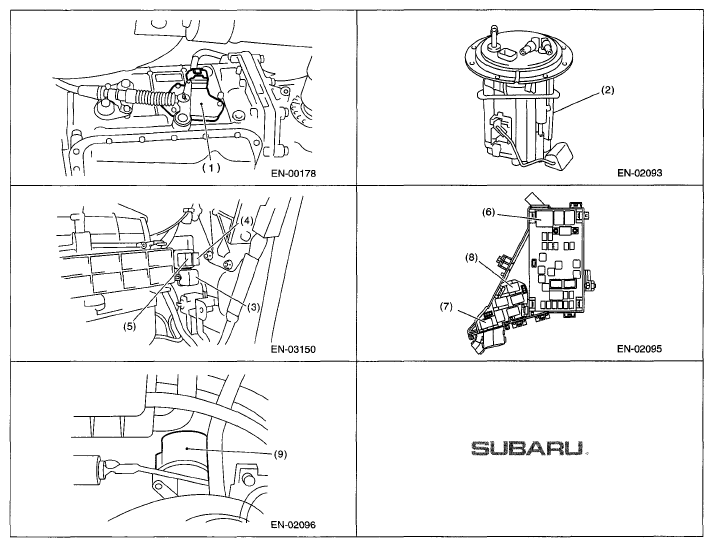

Solenoid valve, actuator, emission control system parts and ignition system parts

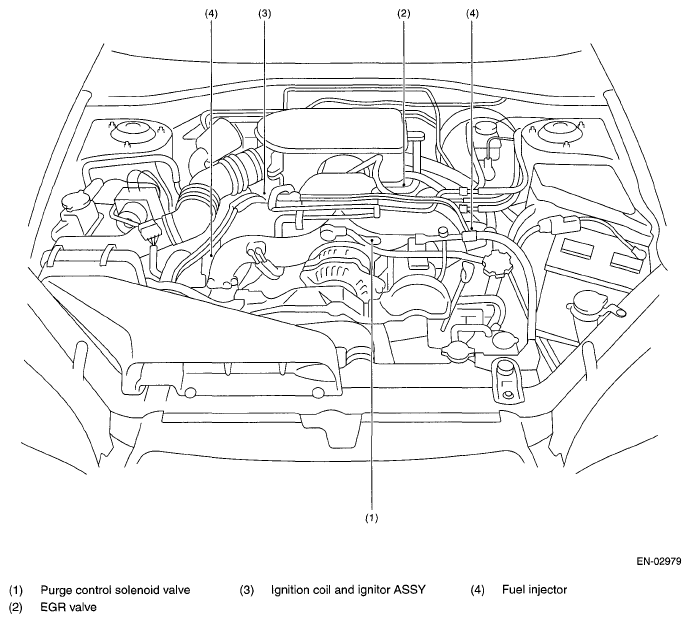

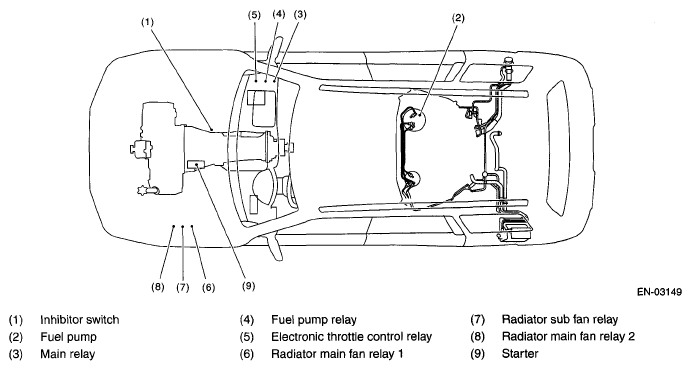

Fig 8: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts Electrical Component Location (1 Of 6)

Fig 9: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts Electrical Component Location (2 Of 6)

Fig 10: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts Electrical Component Location (3 Of 6)

Fig 11: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts Electrical Component Location (4 Of 6)

Fig 12: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts Electrical Component Location (5 Of 6)

Fig 13: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts Electrical Component Location (6 Of 6)
