Rear Gate Lock

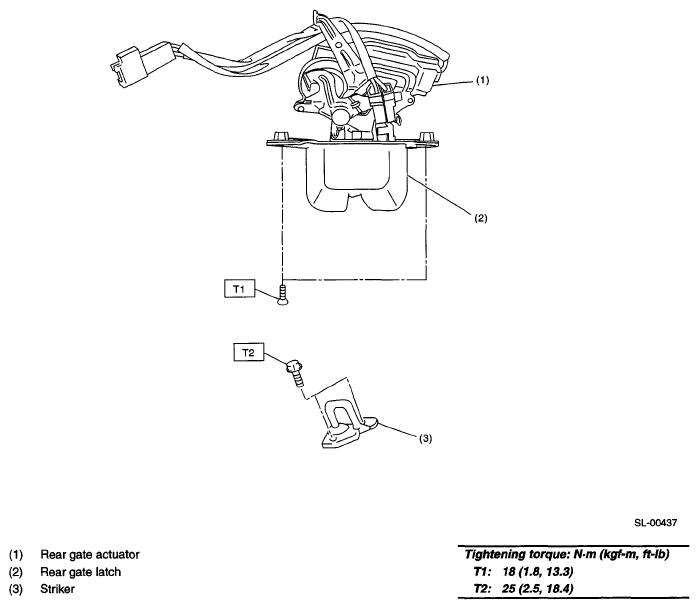

Fig 1: Rear Gate Lock Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
