Components With Torque Specifications

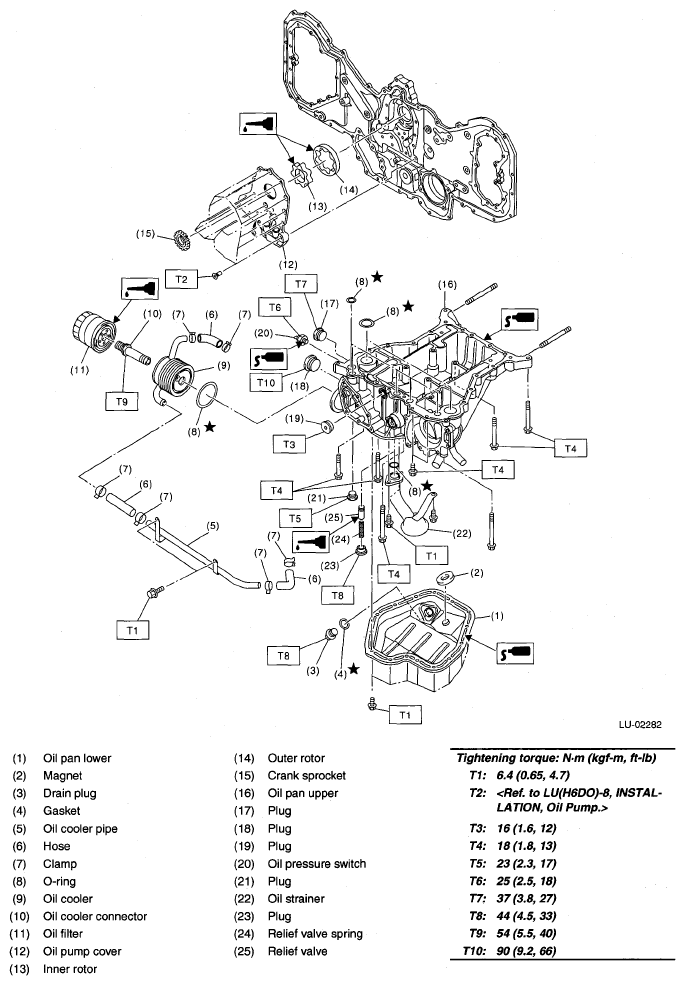

Fig 1: Oil Pan Replacement Components With Torque Specifications
G05345923Courtesy of SUBARU OF AMERICA, INC.
