Engine Controls (Diagnostics) (H6DO): Electrical Component Location: Location: Engine

• Control module

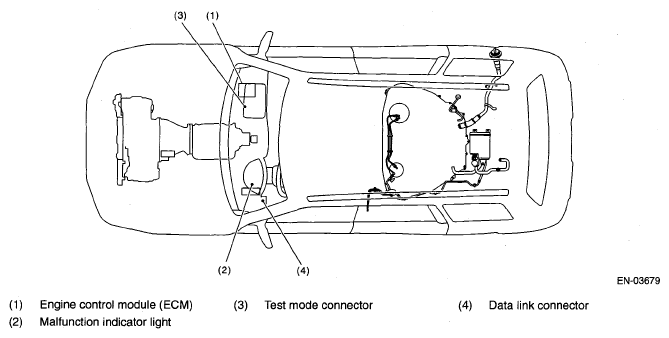

  Fig 1: Identifying Engine Electrical Component Location (1 Of 2)

  Courtesy of SUBARU OF AMERICA, INC.

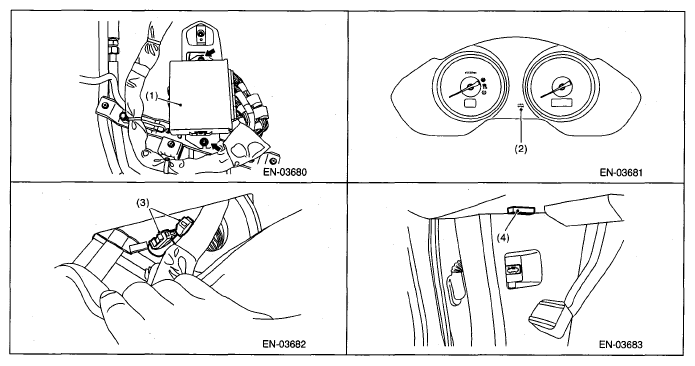

  Fig 2: Identifying Engine Electrical Component Location (2 Of 2)

  Courtesy of SUBARU OF AMERICA, INC.

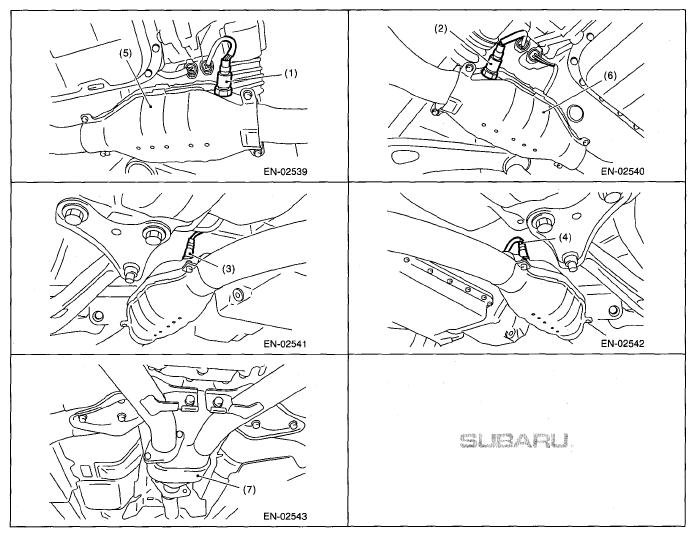

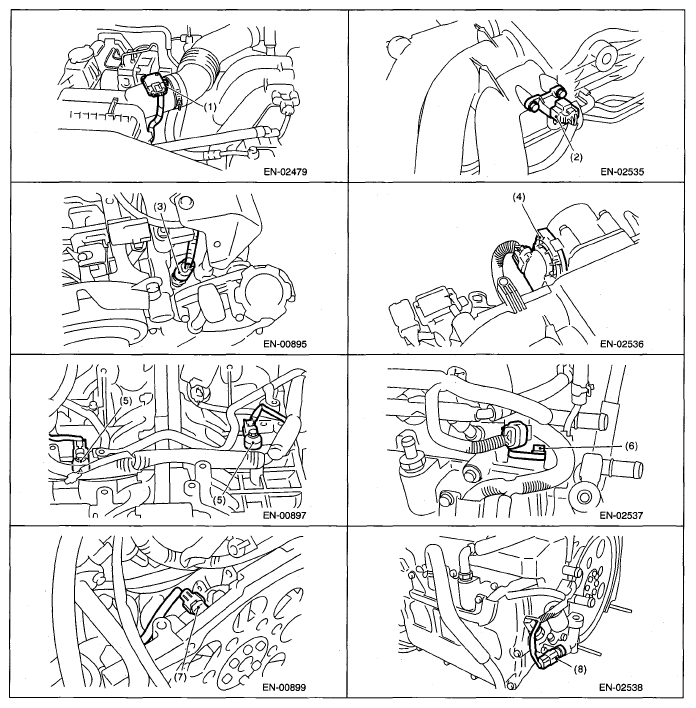

• Sensor

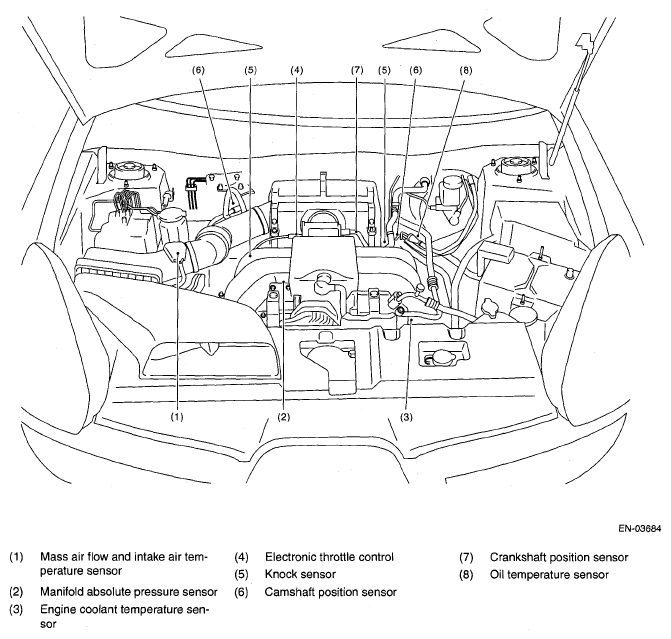

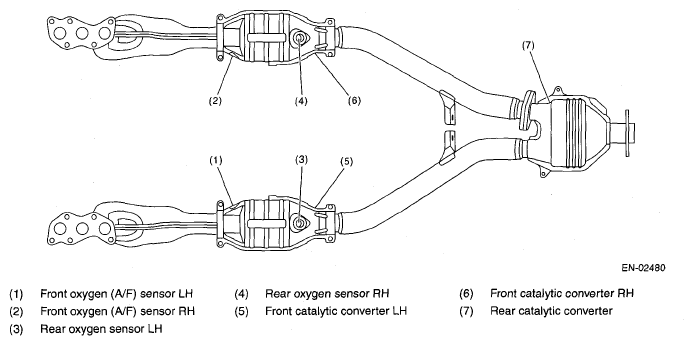

  Fig 3: Identifying Sensor Location (1 Of 6)

  Courtesy of SUBARU OF AMERICA, INC.

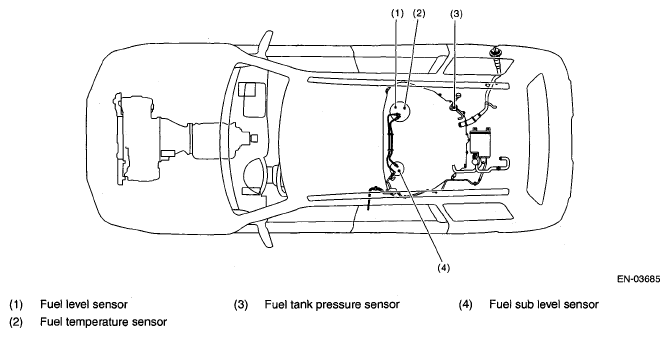

Fig 4: Identifying Sensor Location (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

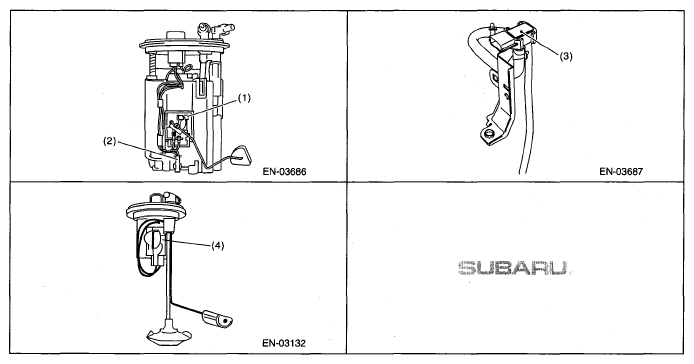

Fig 5: Identifying Sensor Location (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Identifying Sensor Location (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Identifying Sensor Location (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying Sensor Location (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

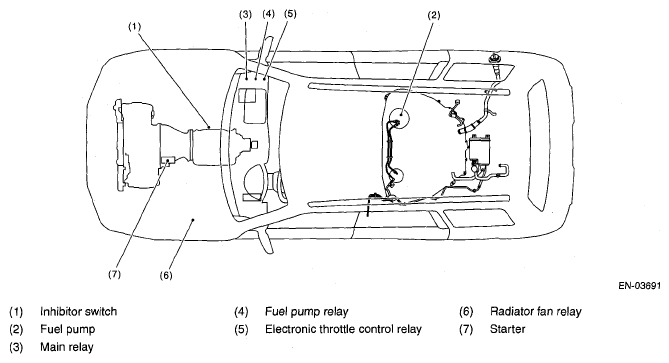

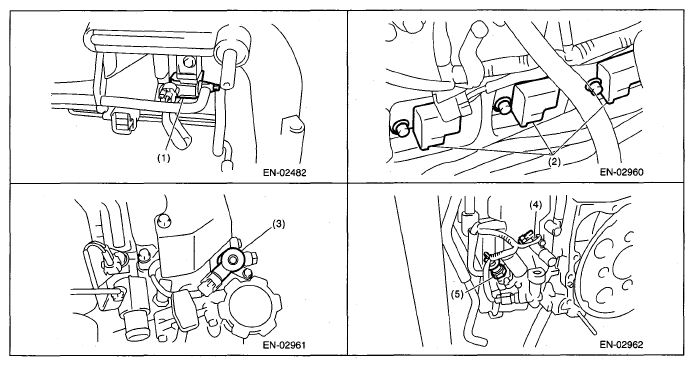

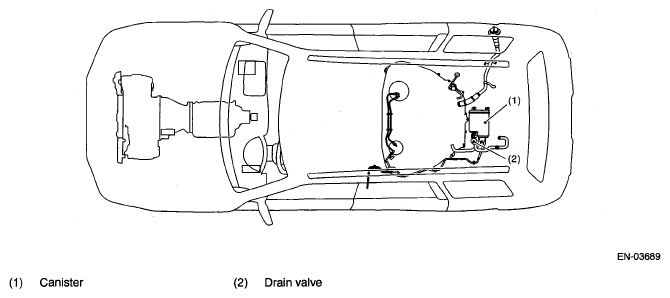

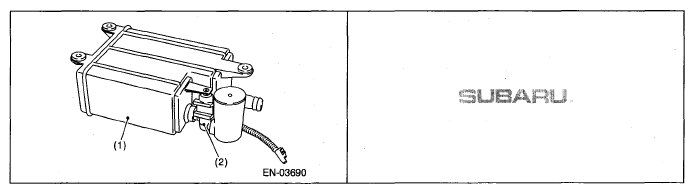

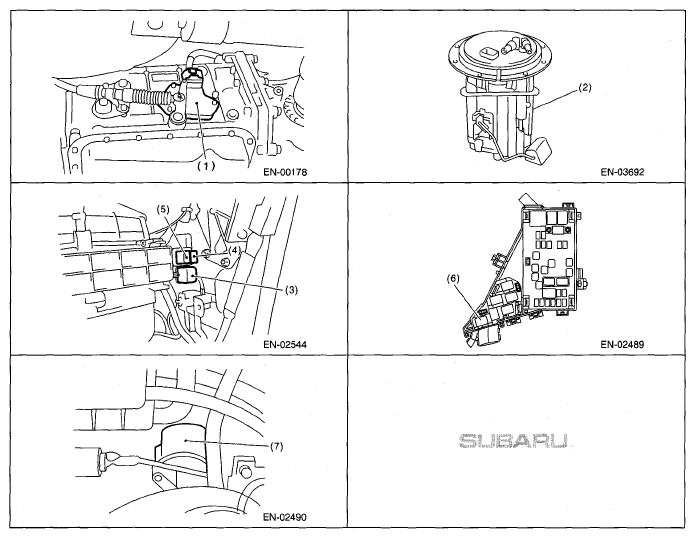

• Solenoid valve, actuator, emission control system parts and ignition system parts

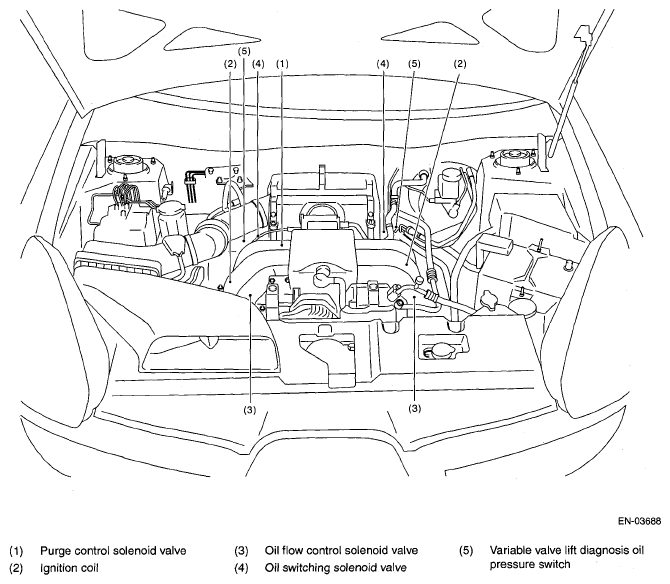

  Fig 9: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts Location (1 Of 6)

  Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts Location (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts Location (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 12: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts Location (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 13: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts Location (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 14: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts Location (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
