Cross Sectional View

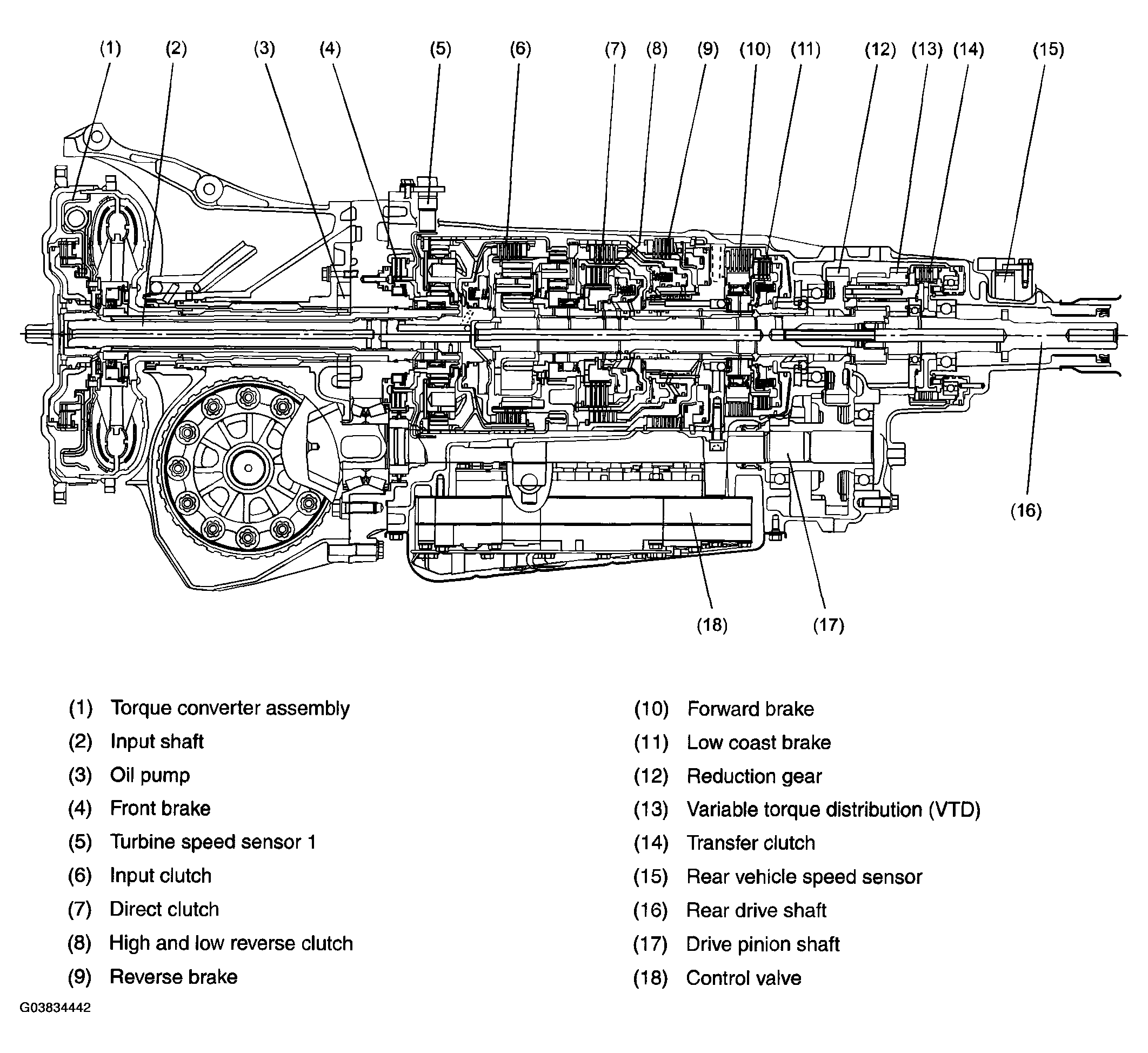

Fig 1: Cross Sectional View Of Automatic Transmission
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
