Computers and Control Systems: Locations

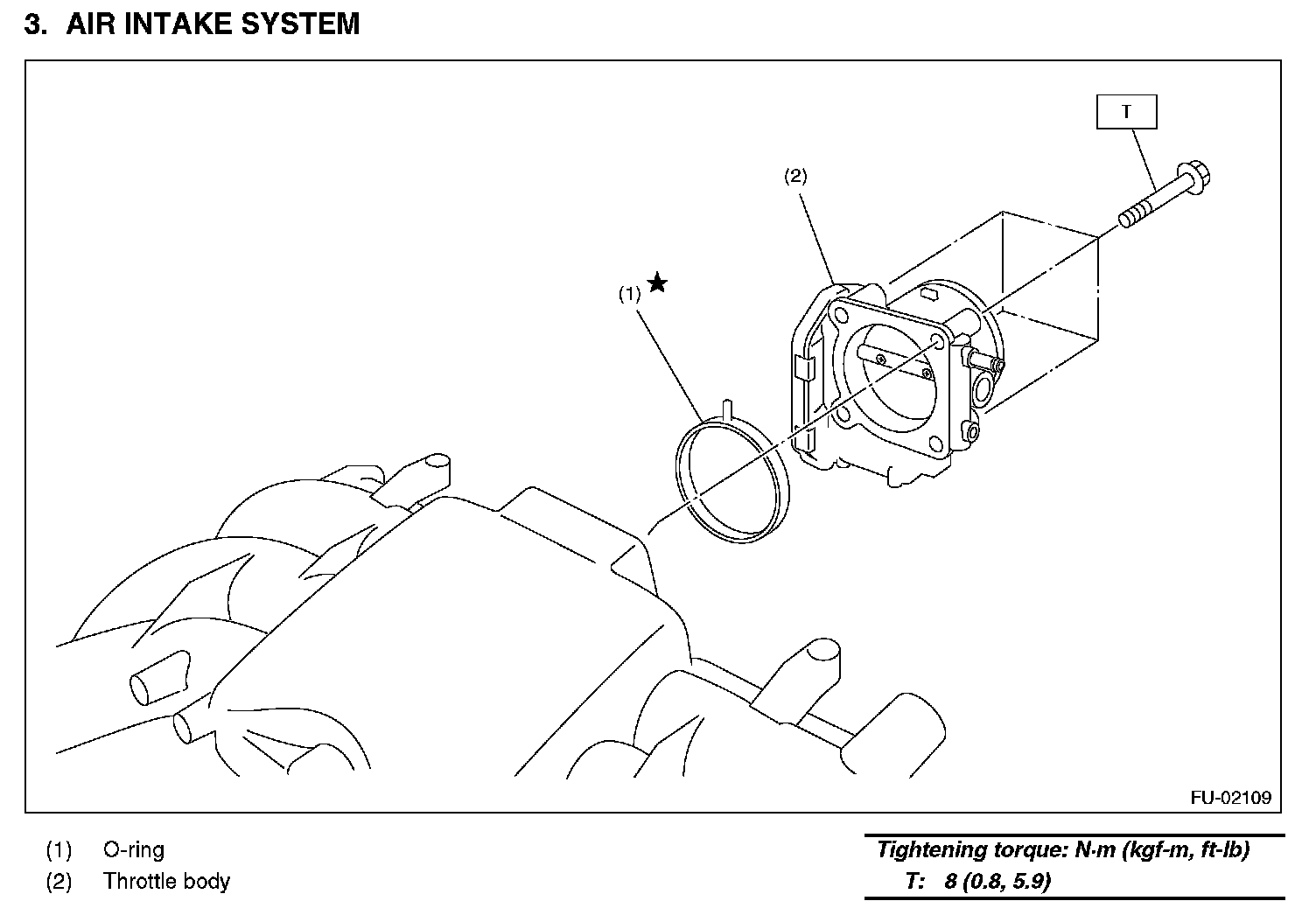

Air Intake System:

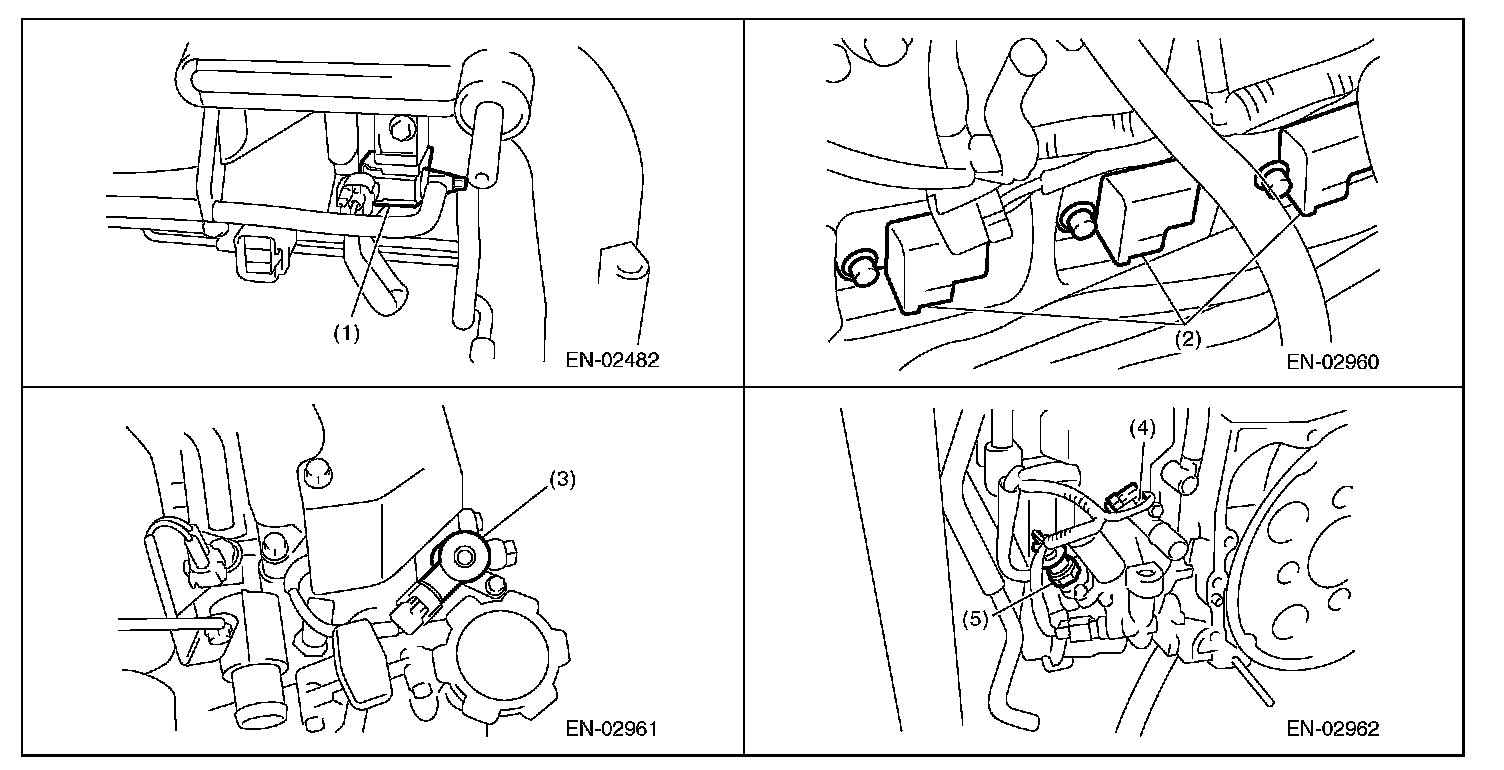

Crankshaft Position, Camshaft Position And Knock Sensors:

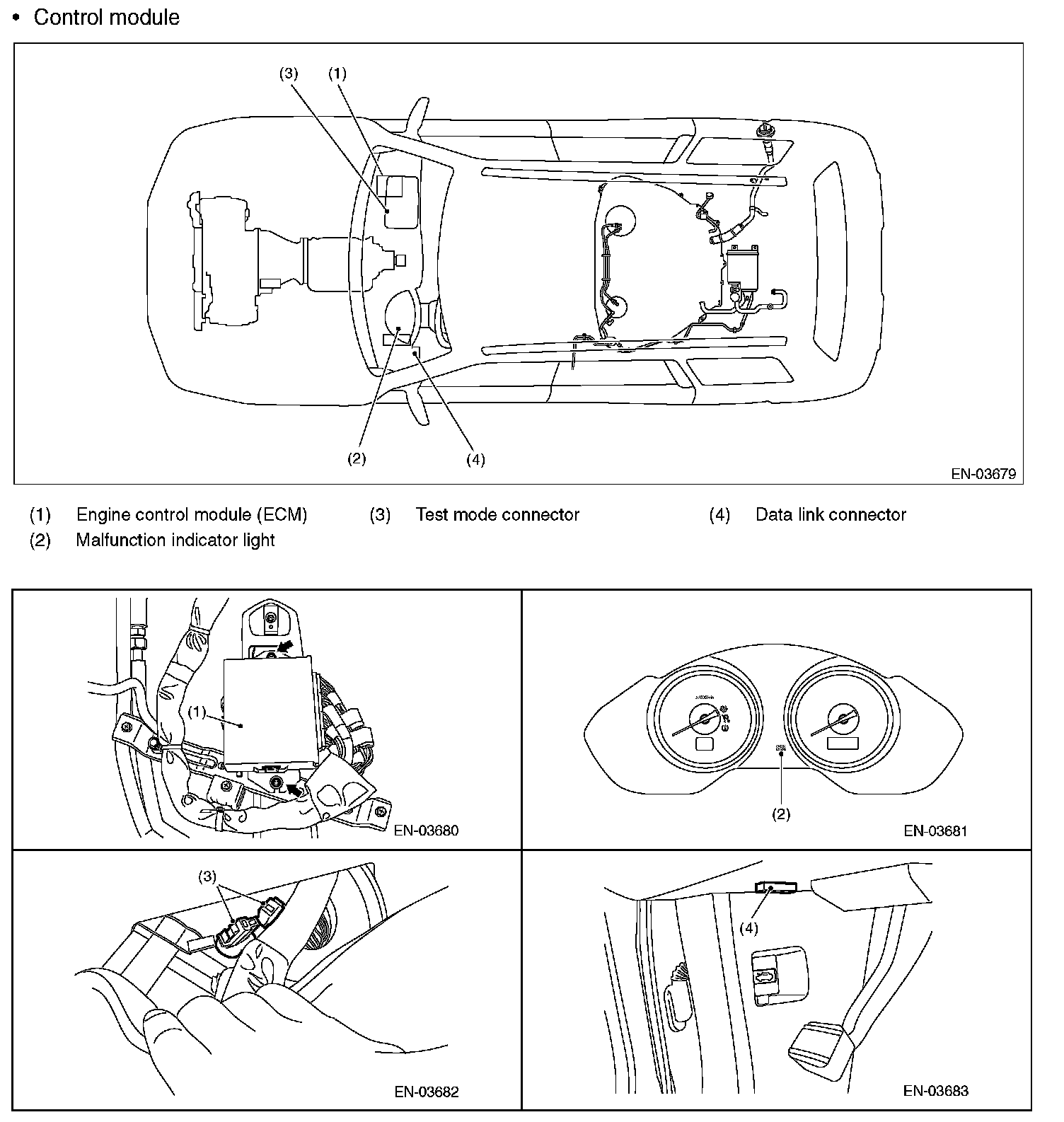

Engine Control Module:

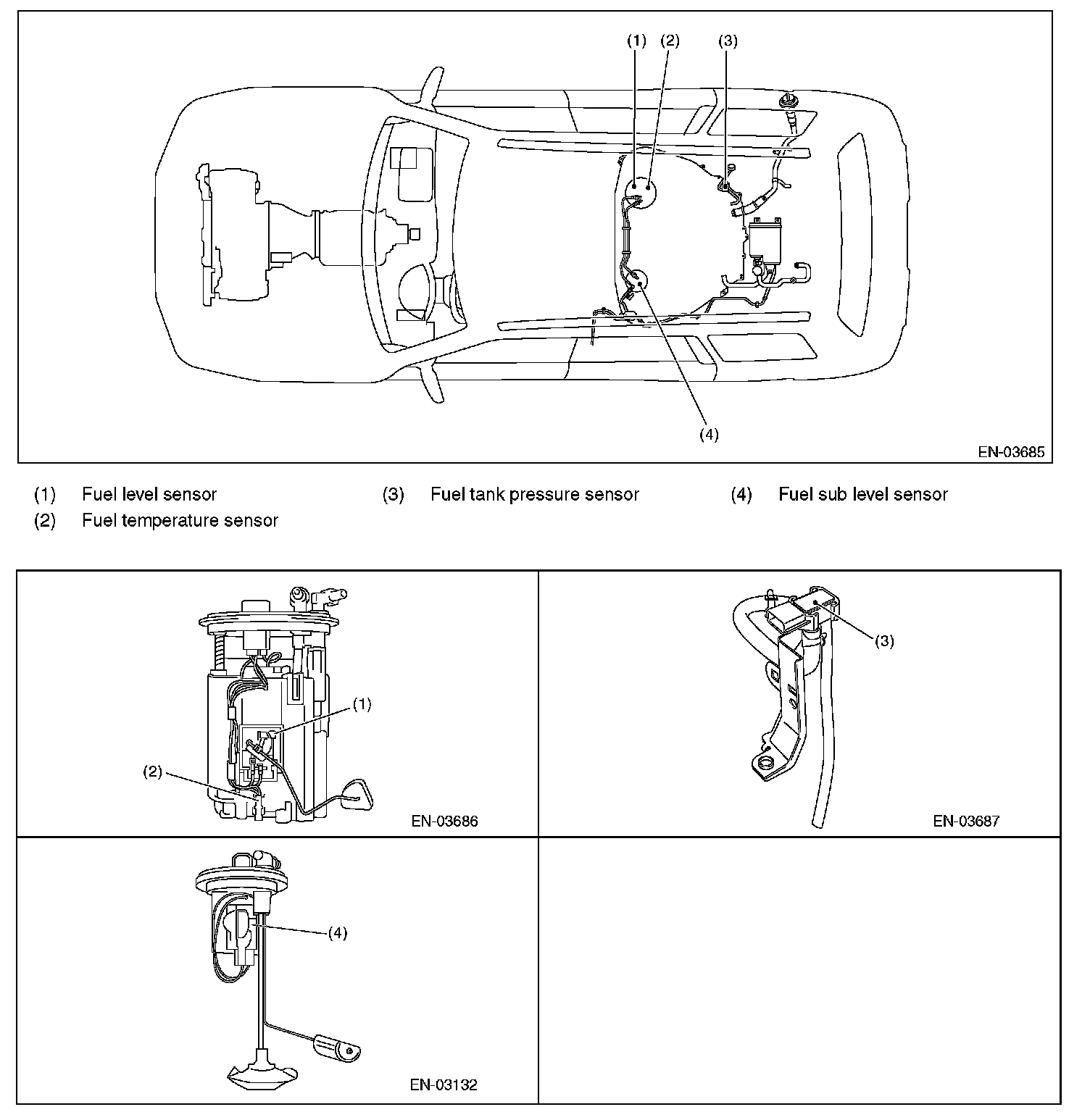

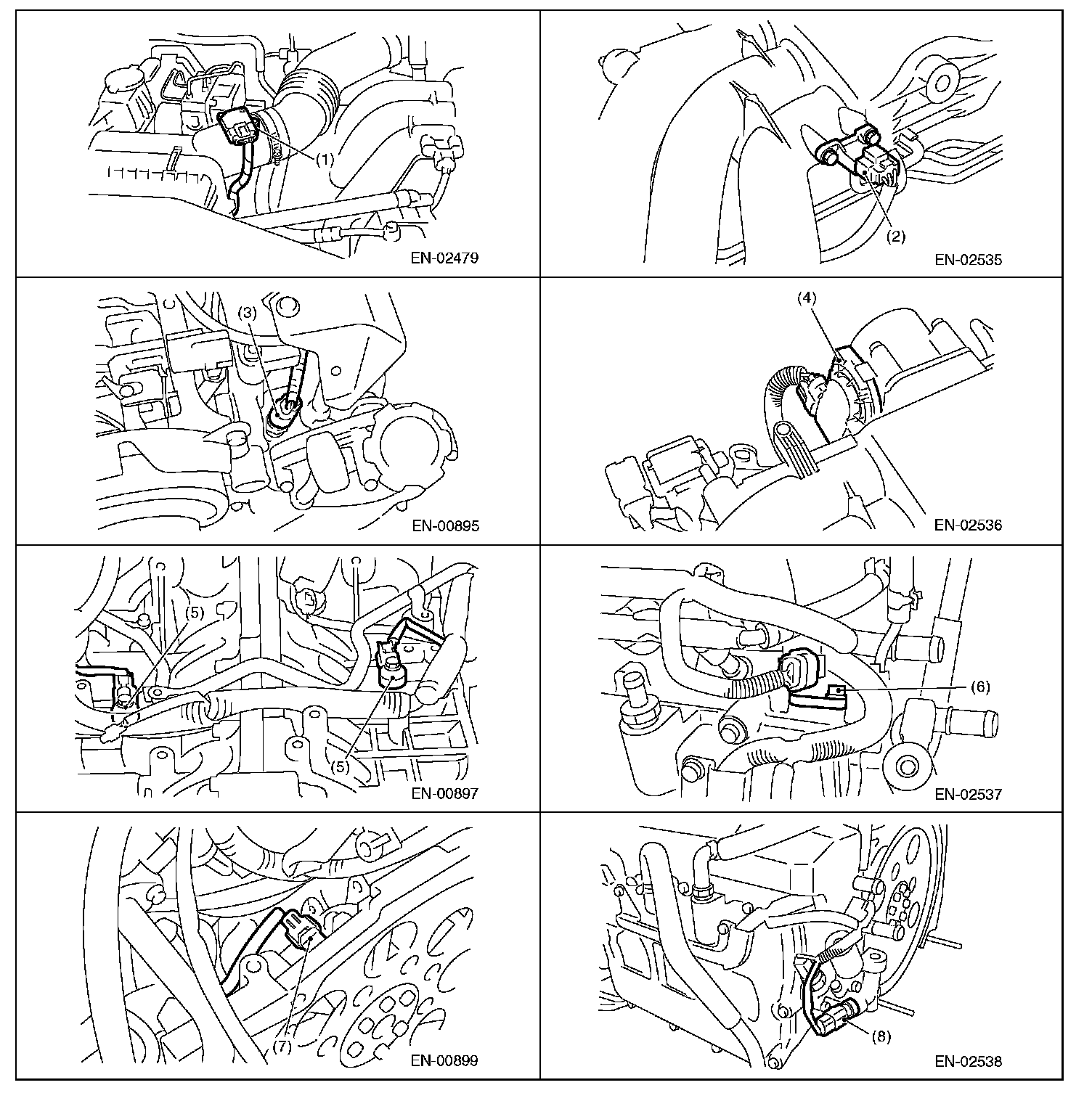

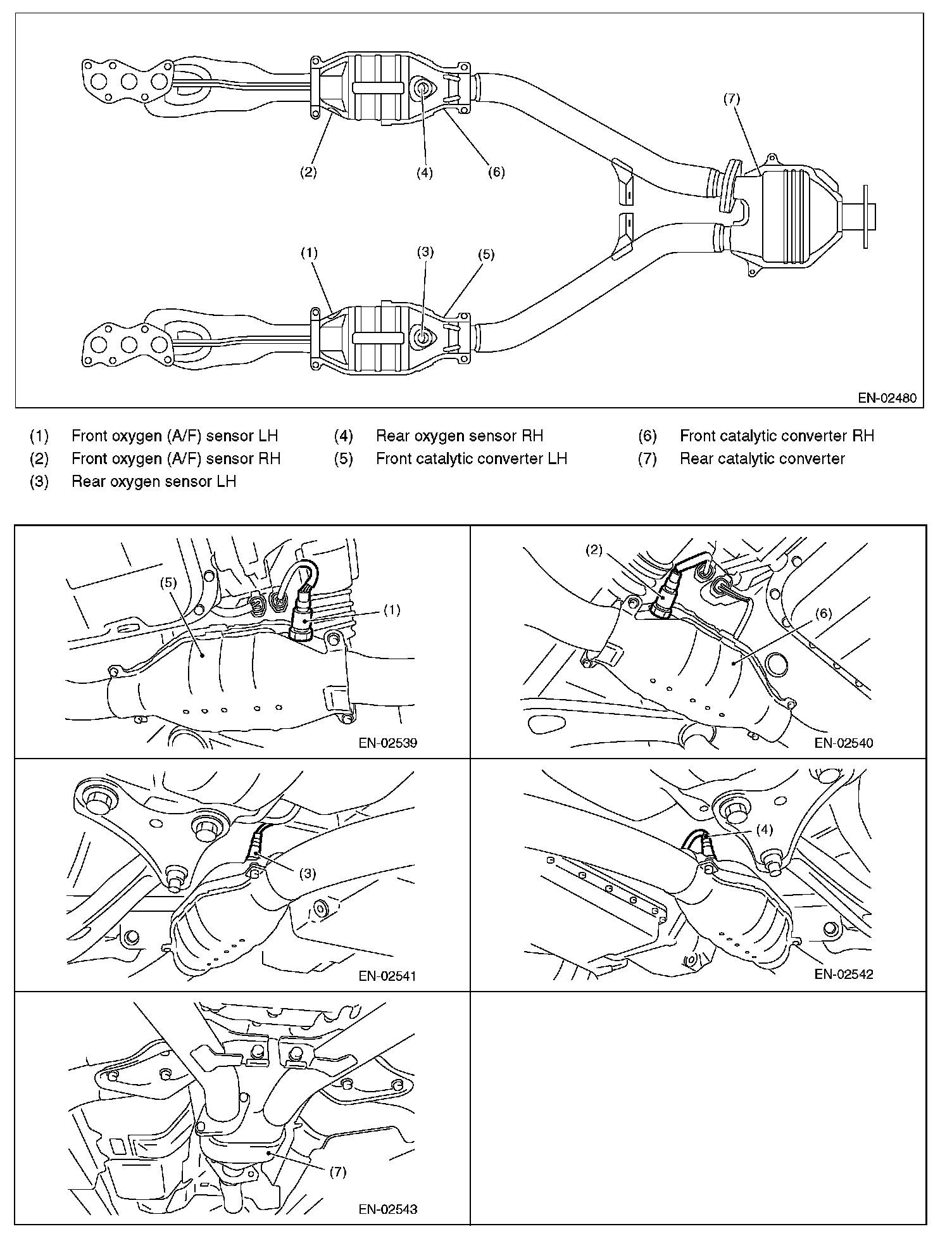

Sensor, Part 1:

Sensor, Part 2:

Sensor, Part 3:

Sensor, Part 4:

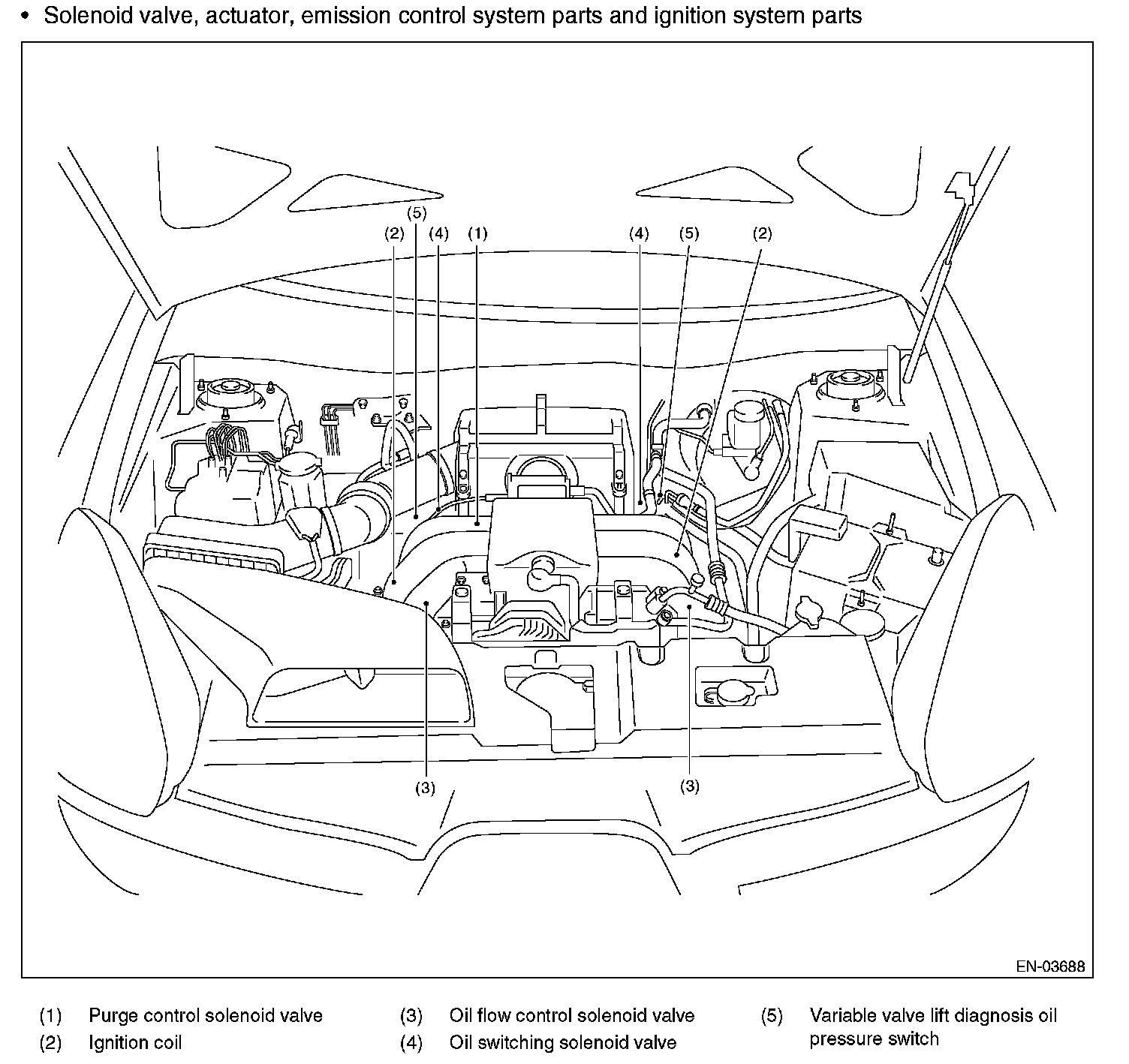

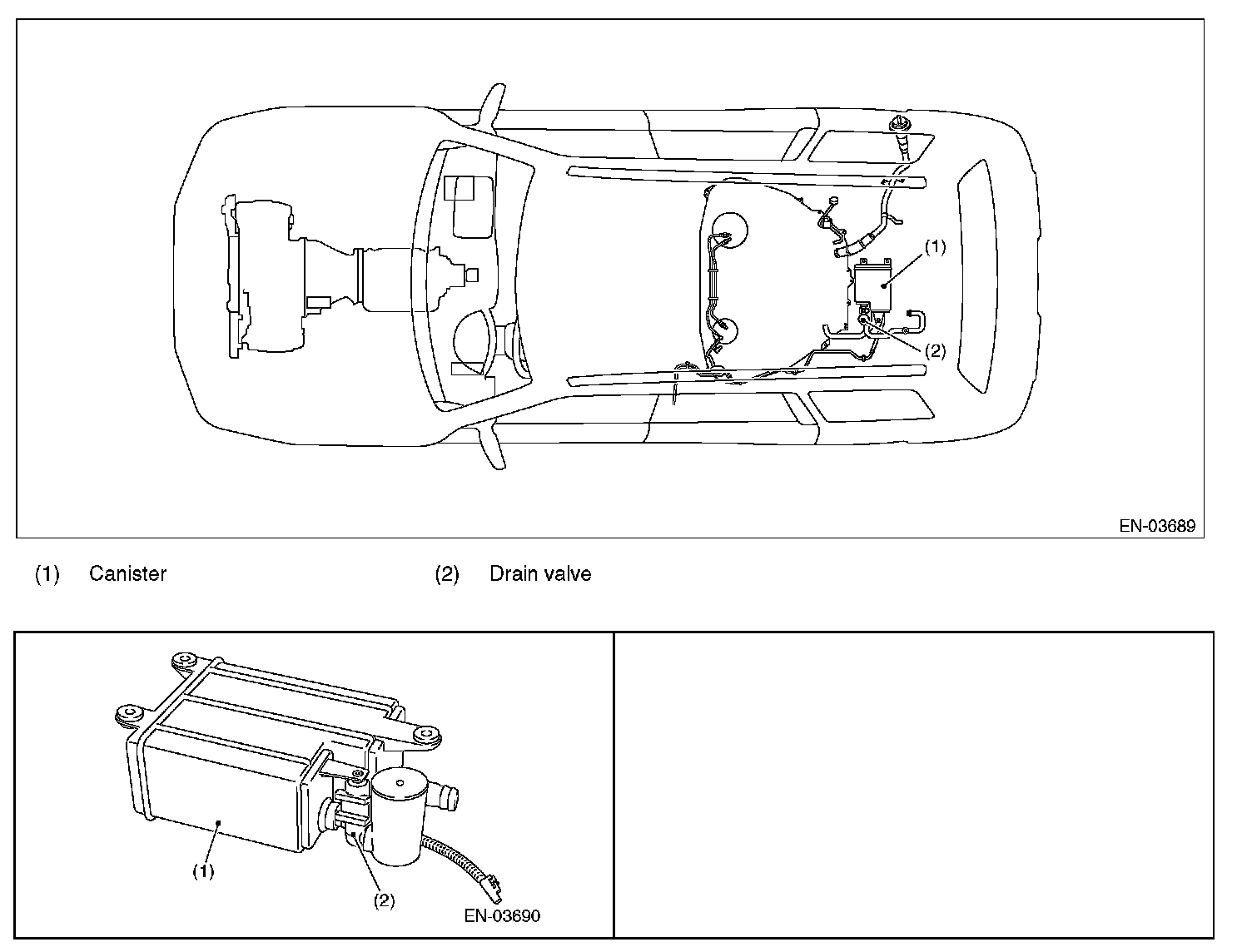

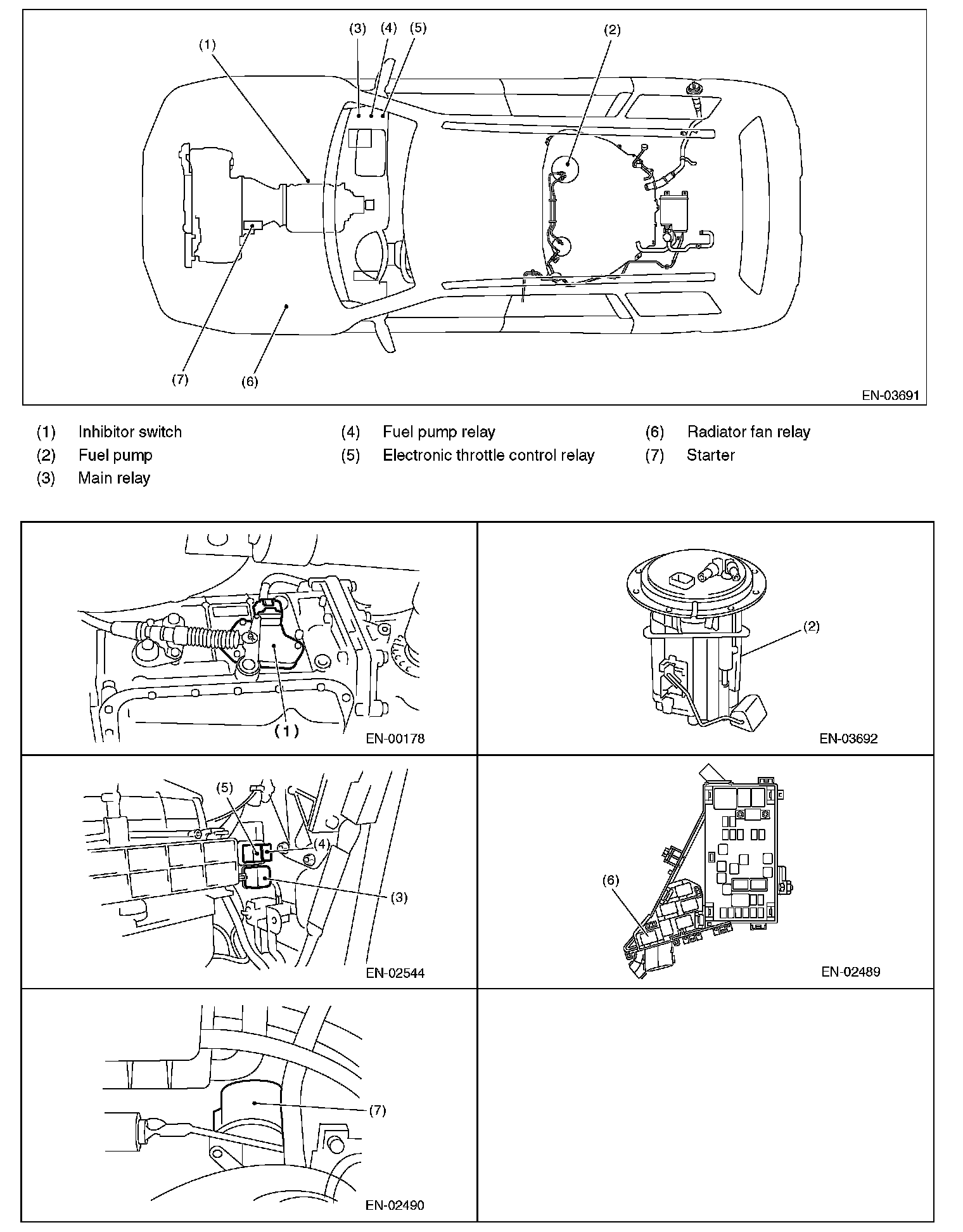

Solenoid Valve, Actuator, Emission Control Systems Parts And Ignition System Parts, Part 1:

Solenoid Valve, Actuator, Emission Control Systems Parts And Ignition System Parts, Part 2:

Solenoid Valve, Actuator, Emission Control Systems Parts And Ignition System Parts, Part 3:

Solenoid Valve, Actuator, Emission Control Systems Parts And Ignition System Parts, Part 4:
