Engine Control Module: Testing and Inspection

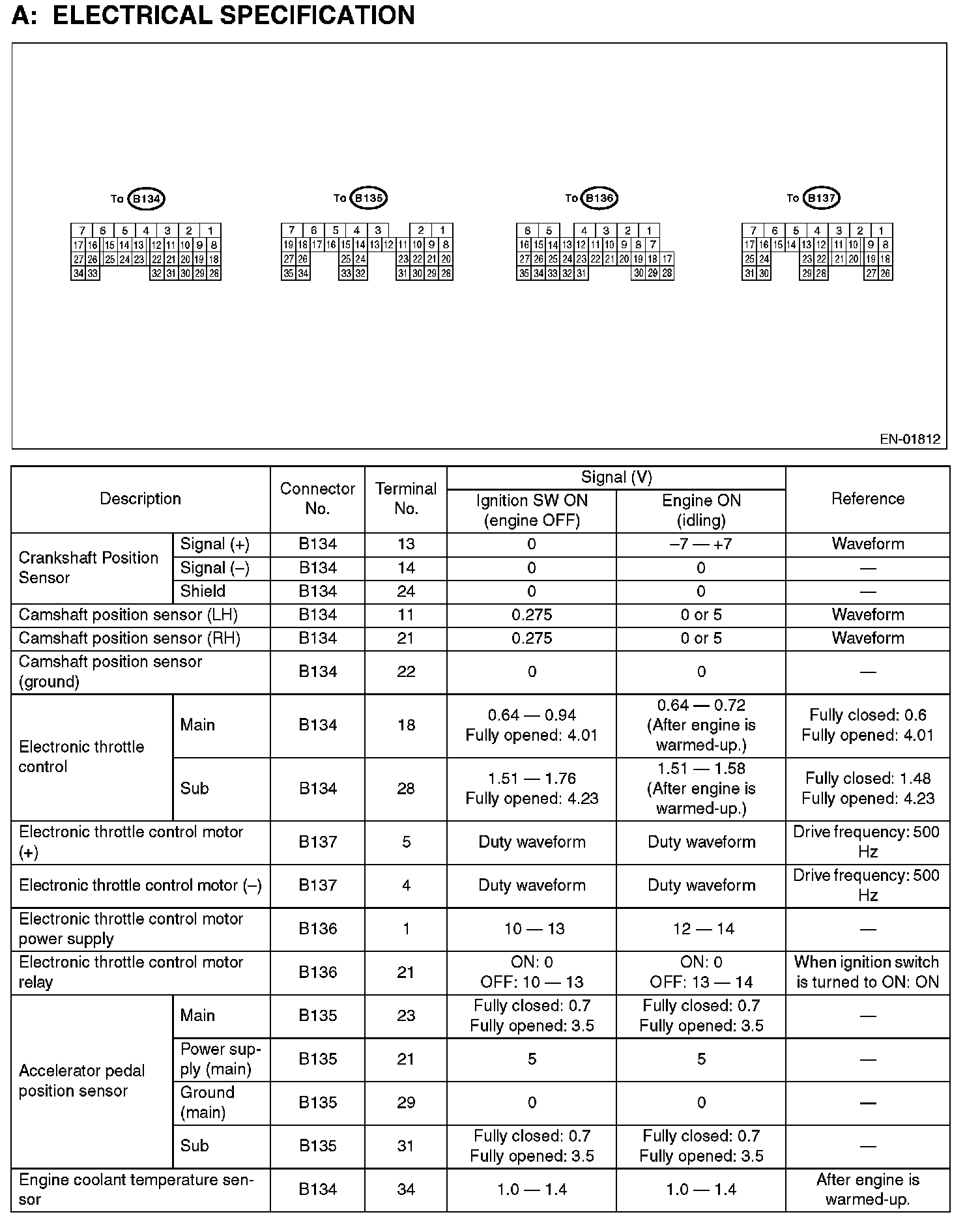

Engine Control Module (ECM) I/O Signal (part 1):

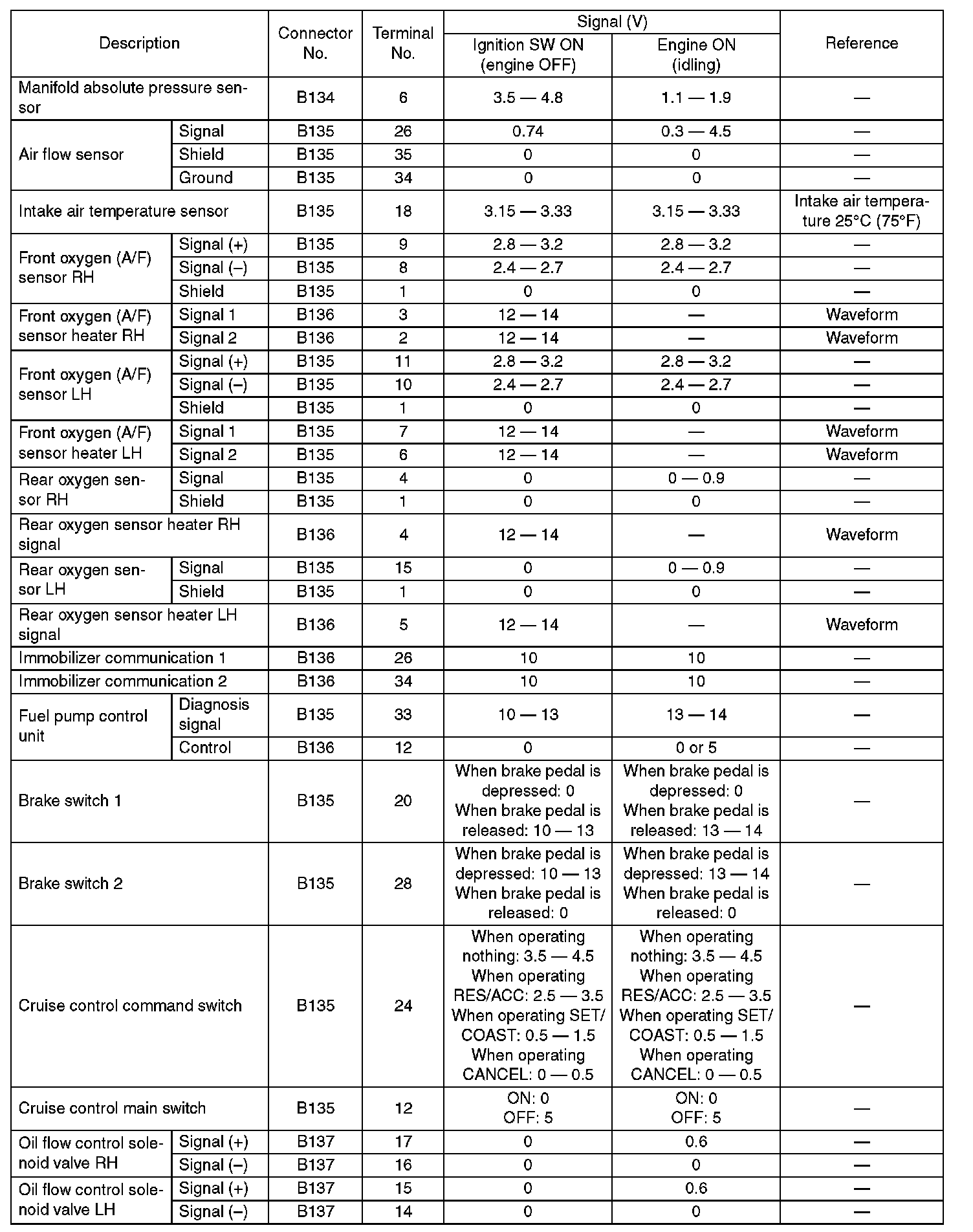

Engine Control Module (ECM) I/O Signal (part 2):

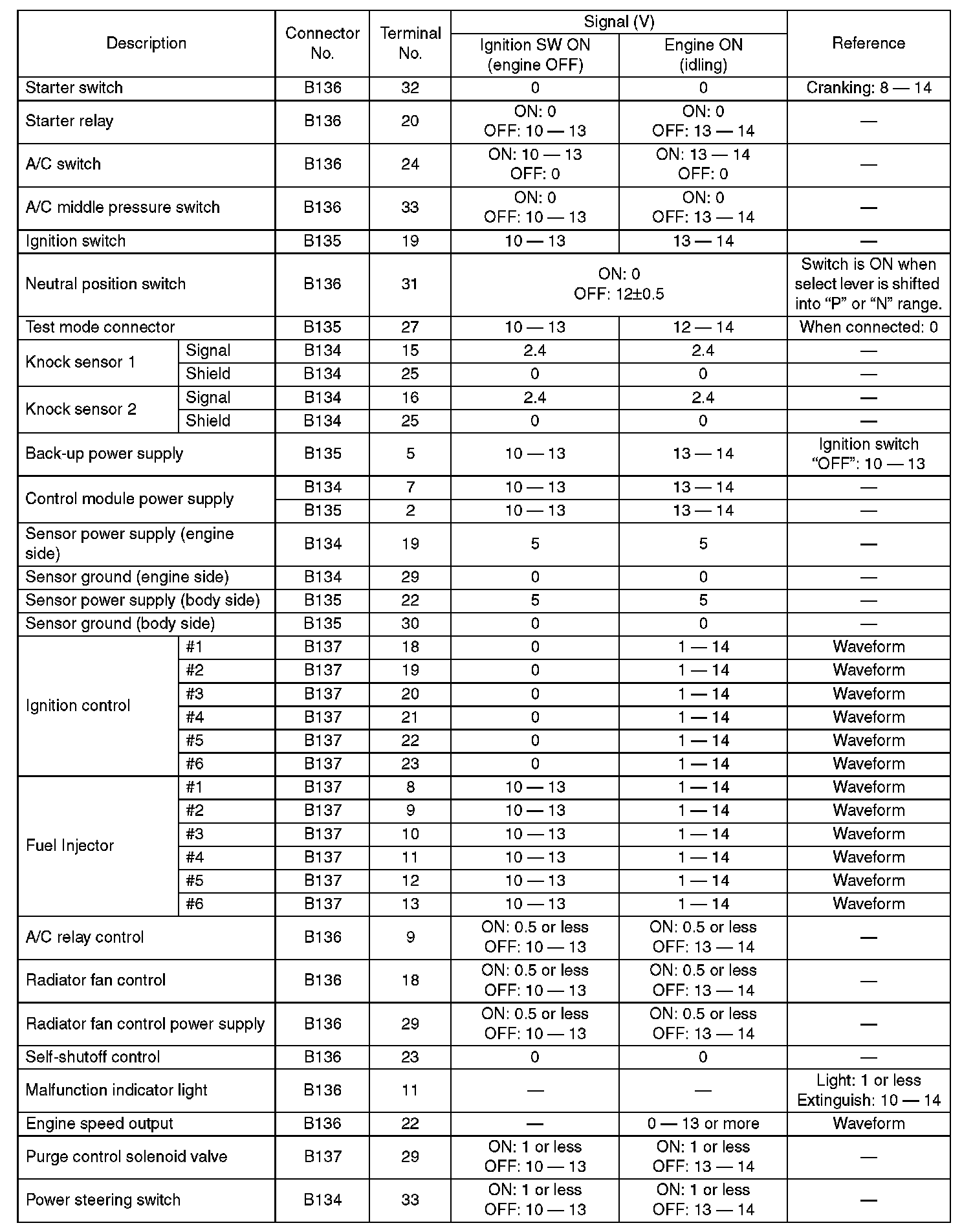

Engine Control Module (ECM) I/O Signal (part 3):

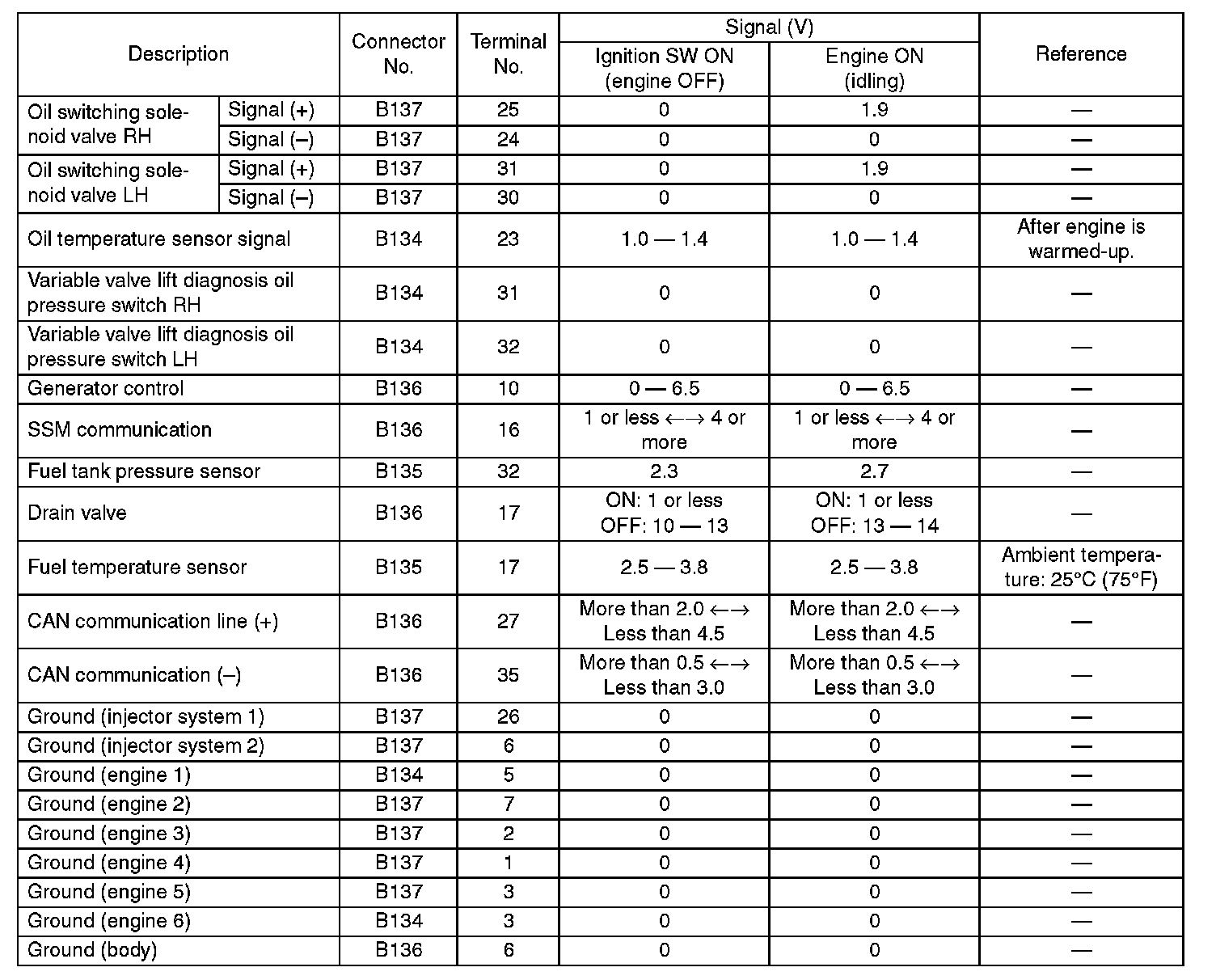

Engine Control Module (ECM) I/O Signal (part 4):
