System Specifications

Crankshaft Pulley
Crankshaft Pulley 178 Nm (18.1 kgf-m, 131 ft. lbs.)






Chain Tensioner


Front Chain Cover

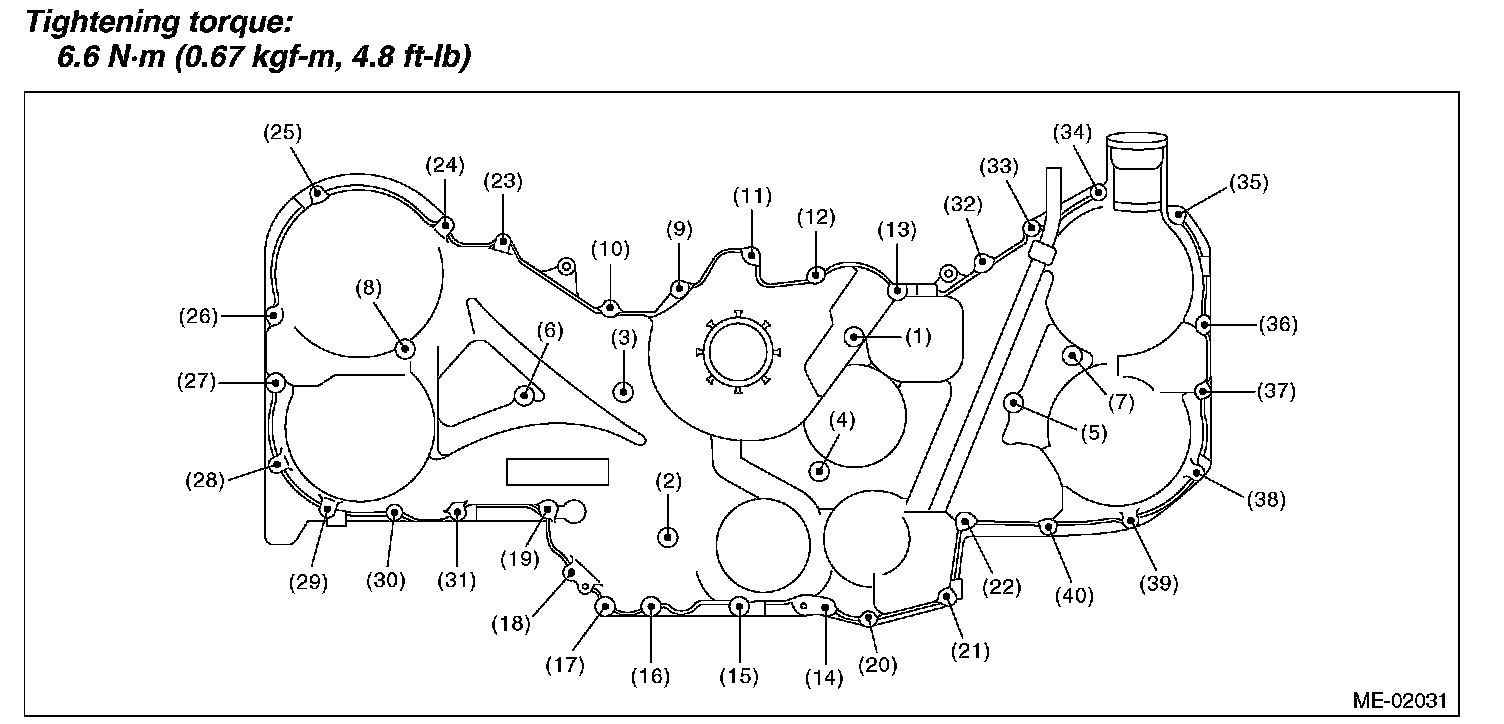

Tighten the bolts in the numerical order as shown in the figure.
