Abs Wheel Speed Sensor

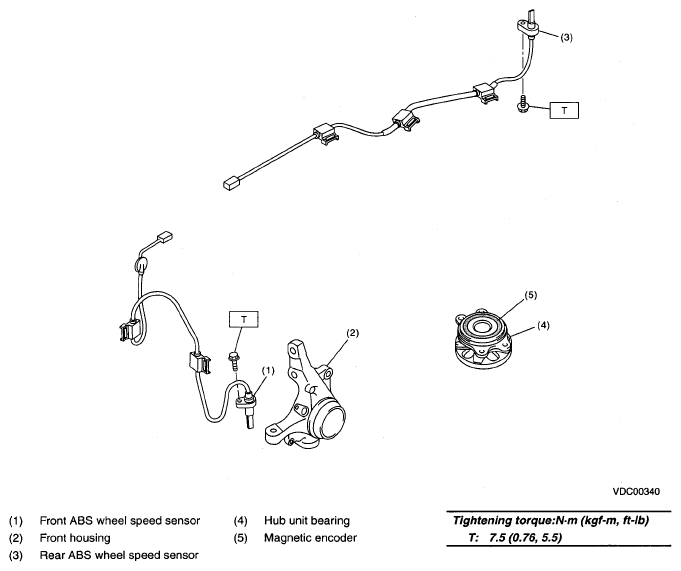

Fig 1: Identifying ABS Wheel Speed Sensor Components With torque Specification
G05346681Courtesy of SUBARU OF AMERICA, INC.
