Cabin Temperature Sensor / Switch: Testing and Inspection

IN-VEHICLE SENSOR

TROUBLE SYMPTOM:
- When turning the AUTO switch to ON, blower fan speed, outlet port and inlet port is not changed.
- Malfunction related to in-vehicle sensor is indicated in self-diagnosis.

Wiring Diagram:




Wiring Diagram

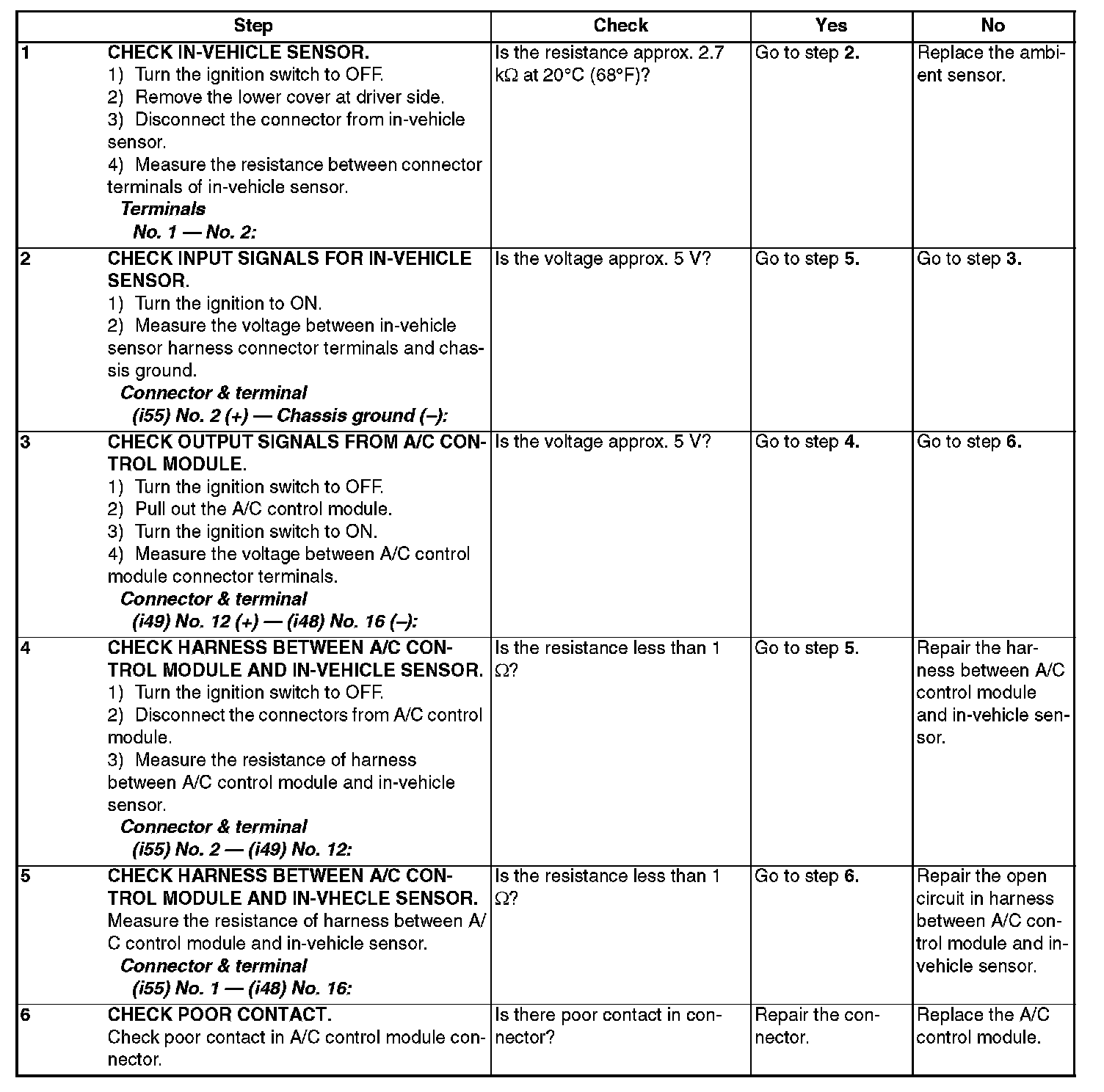

Step 1 - 6:
