OE Harness Connector Repair Kits
Harness Repair Kit
SPECIFICATION

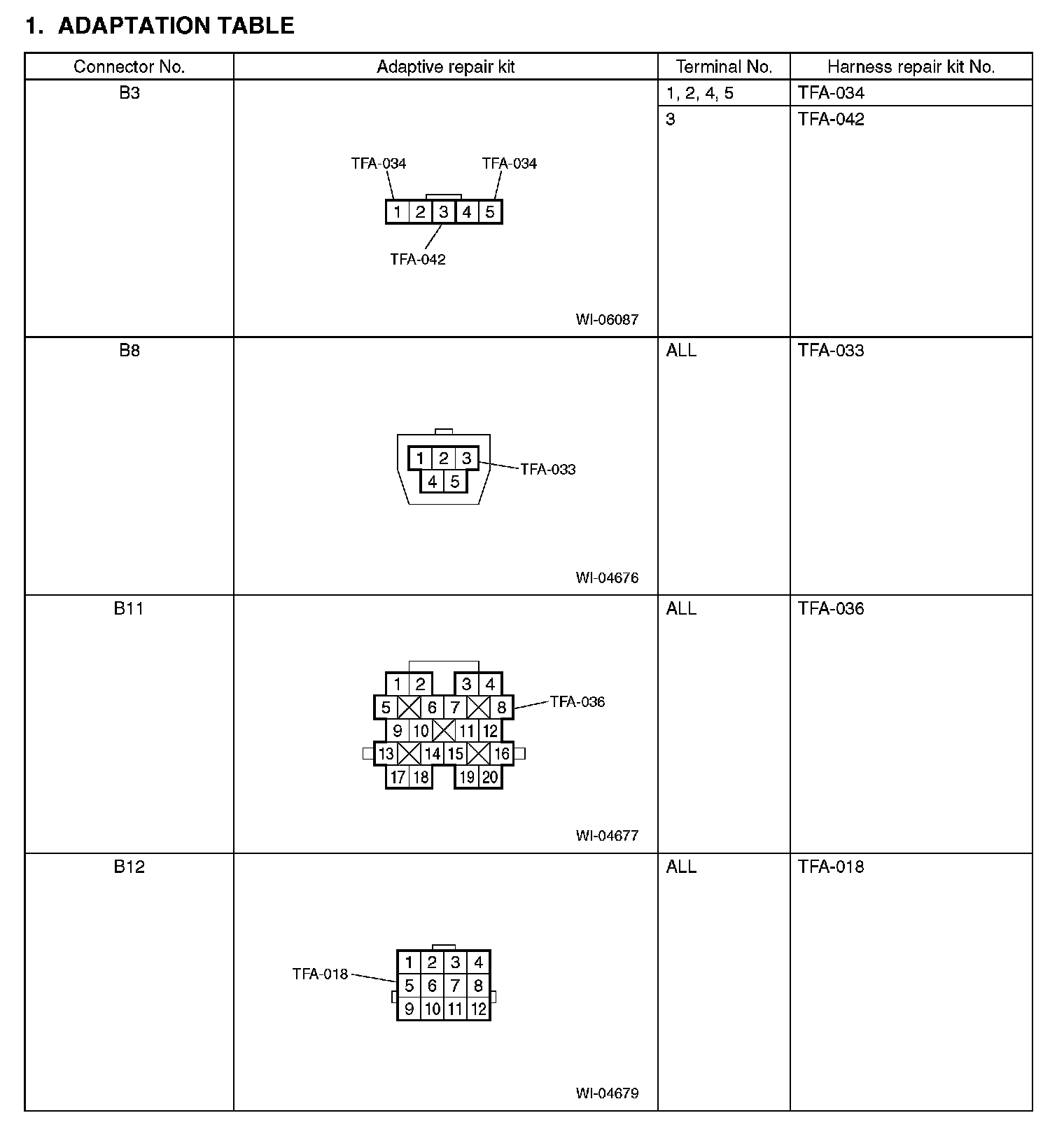

B3-B12:

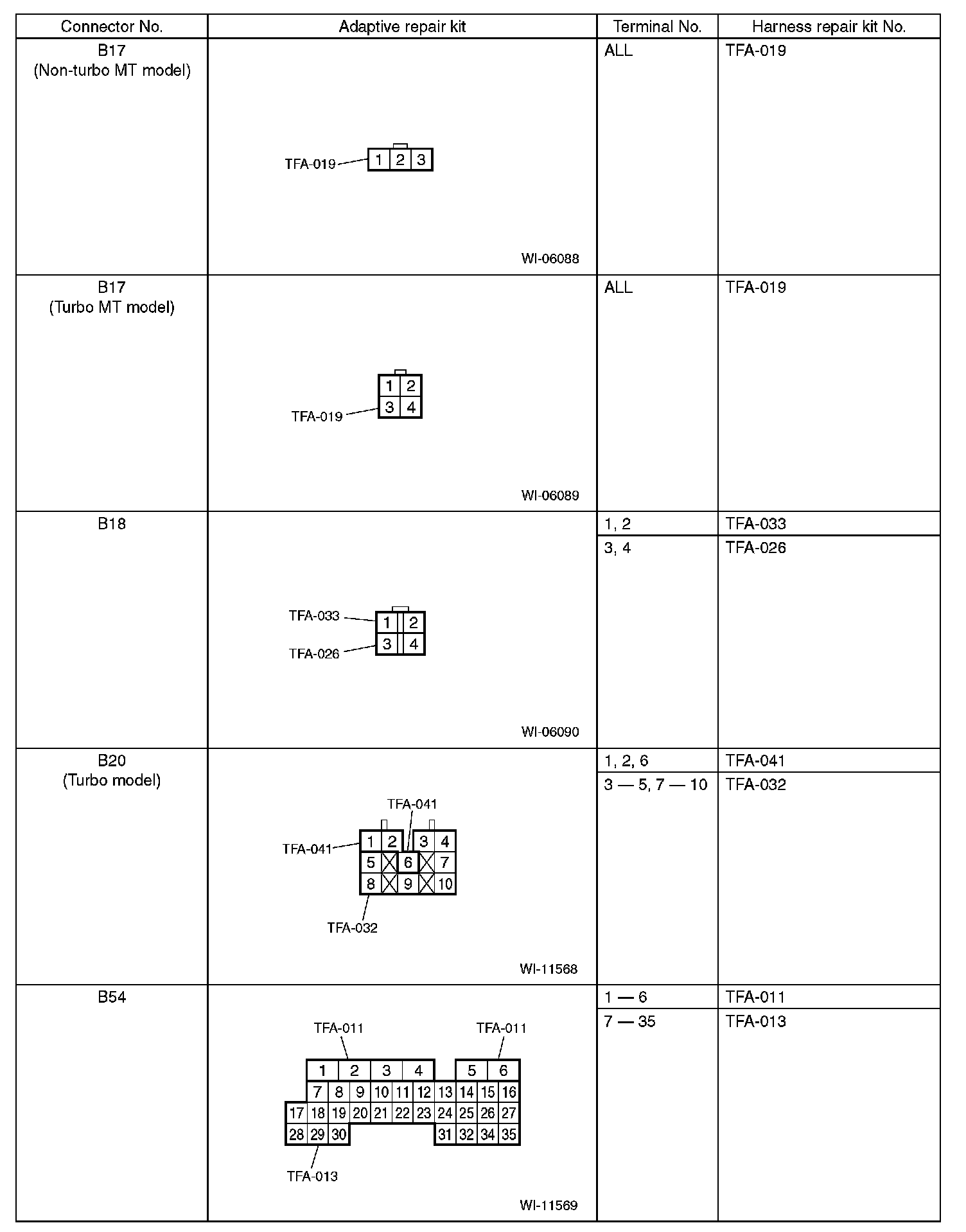

B17-B54:

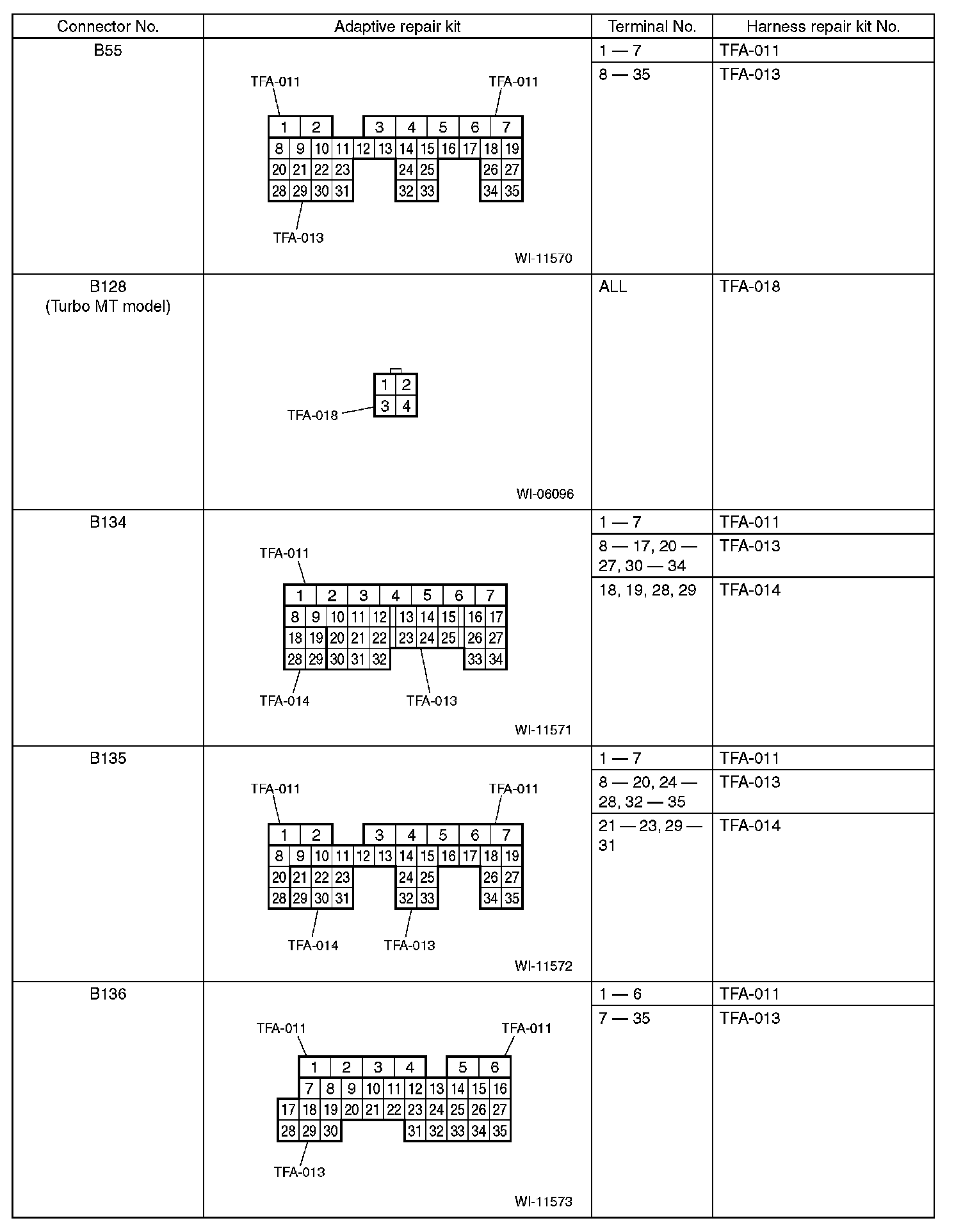

B55-B136:

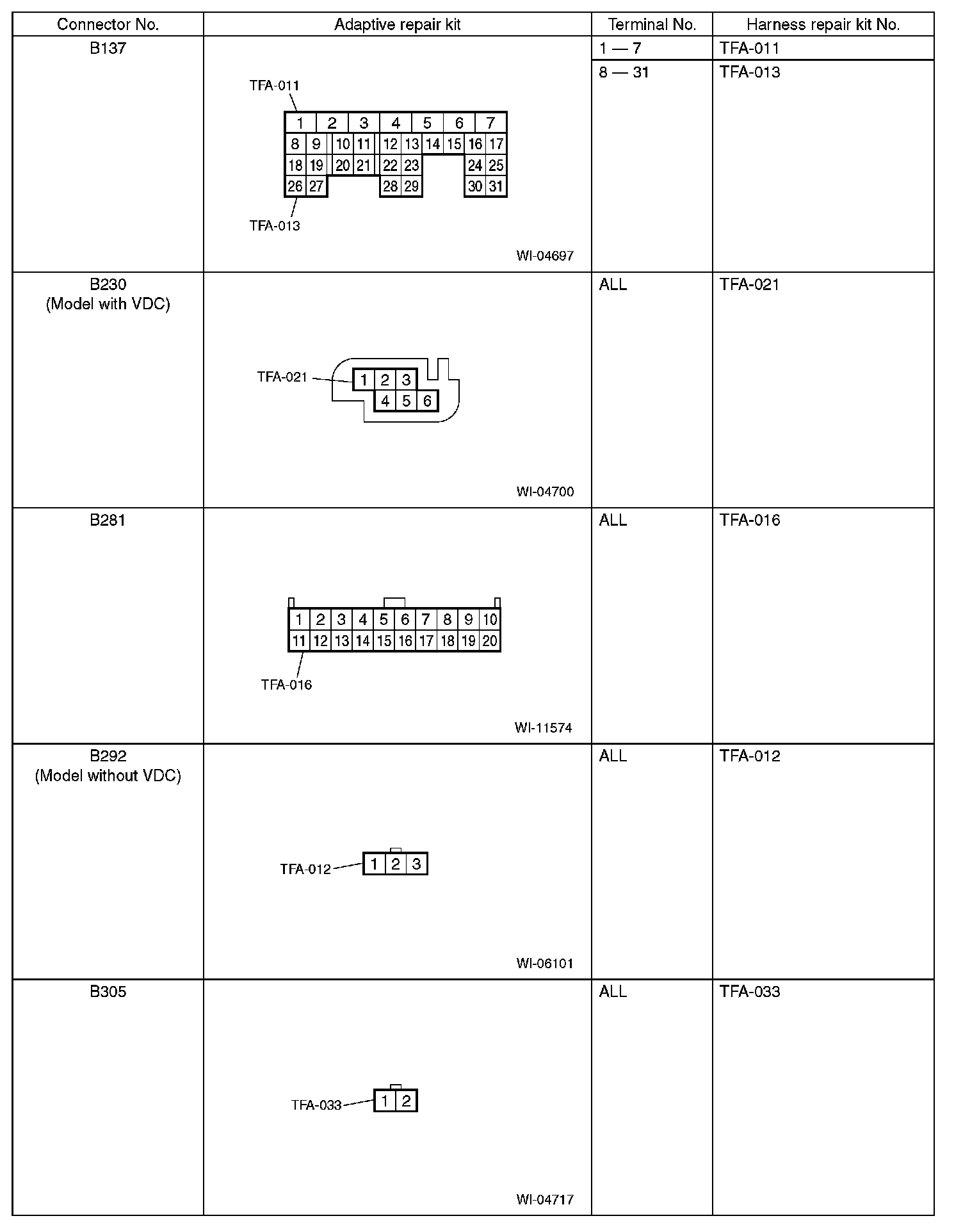

B137-B305:

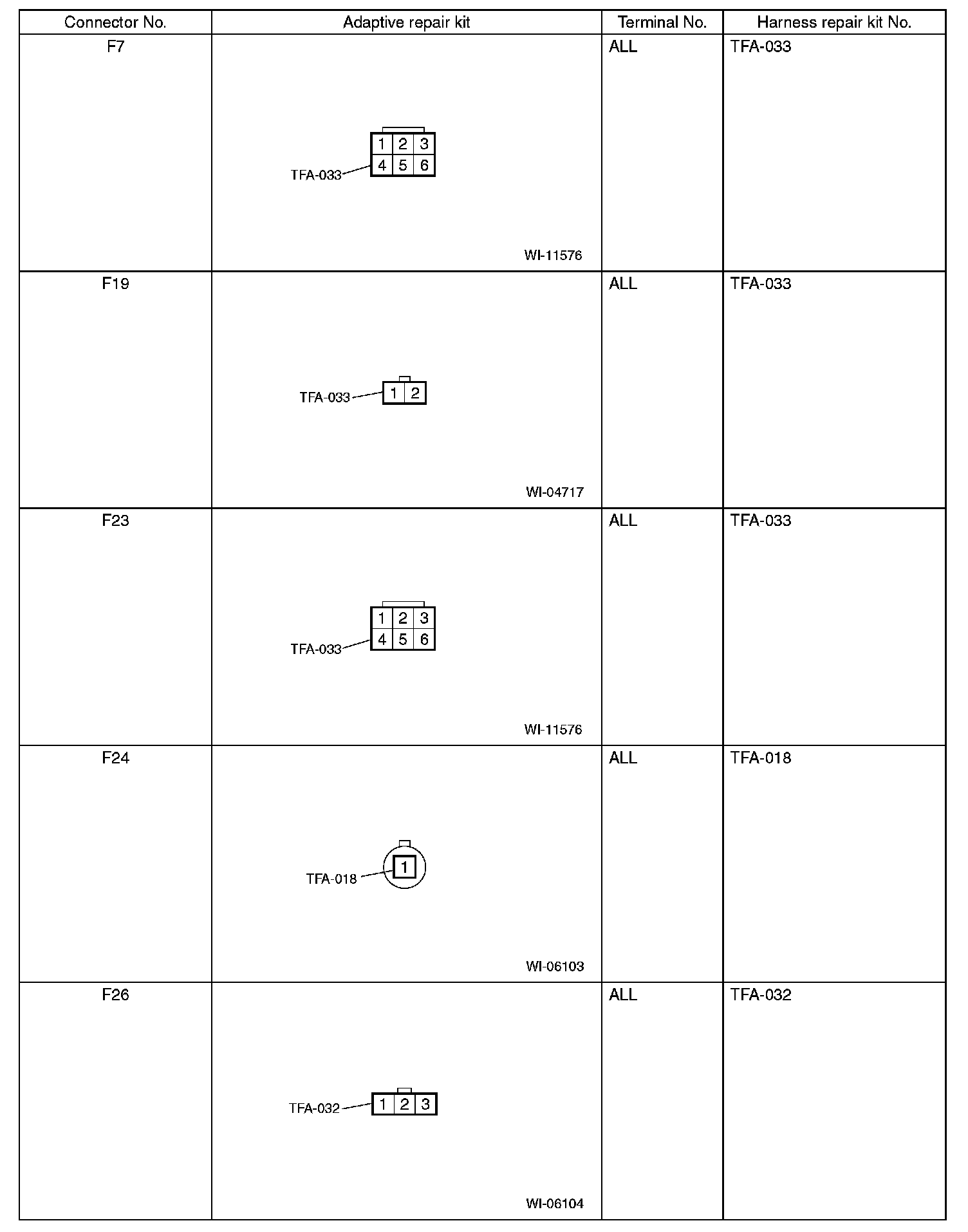

F7-F26:

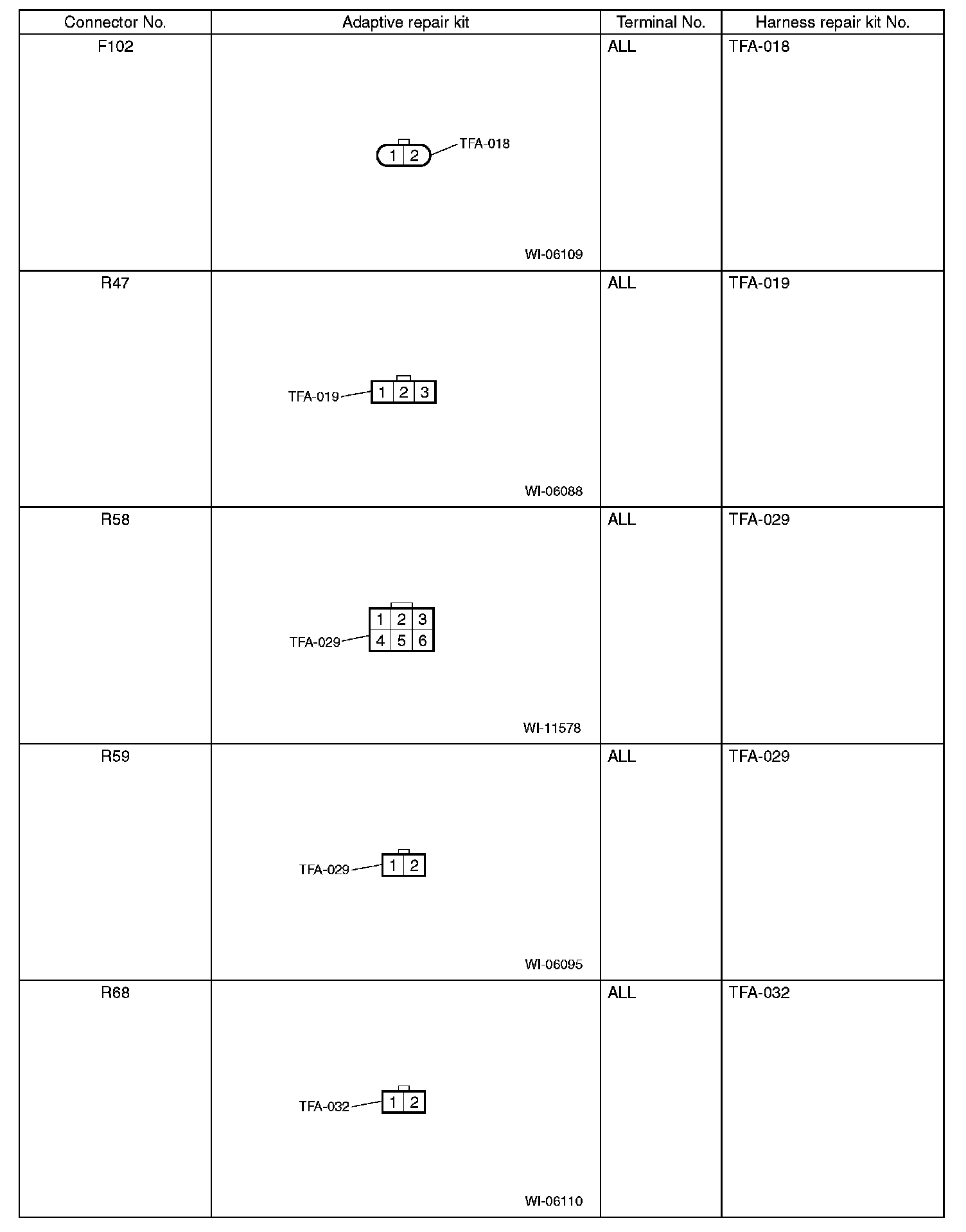

F102-R68:
