Ignition Control System

IGNITION CONTROL SYSTEM

CAUTION: After repairing or replacing the defective part, carry out the Clear Memory Mode Clearing Diagnostic Trouble Codes and Inspection Mode Diagnostic Trouble Code Descriptions

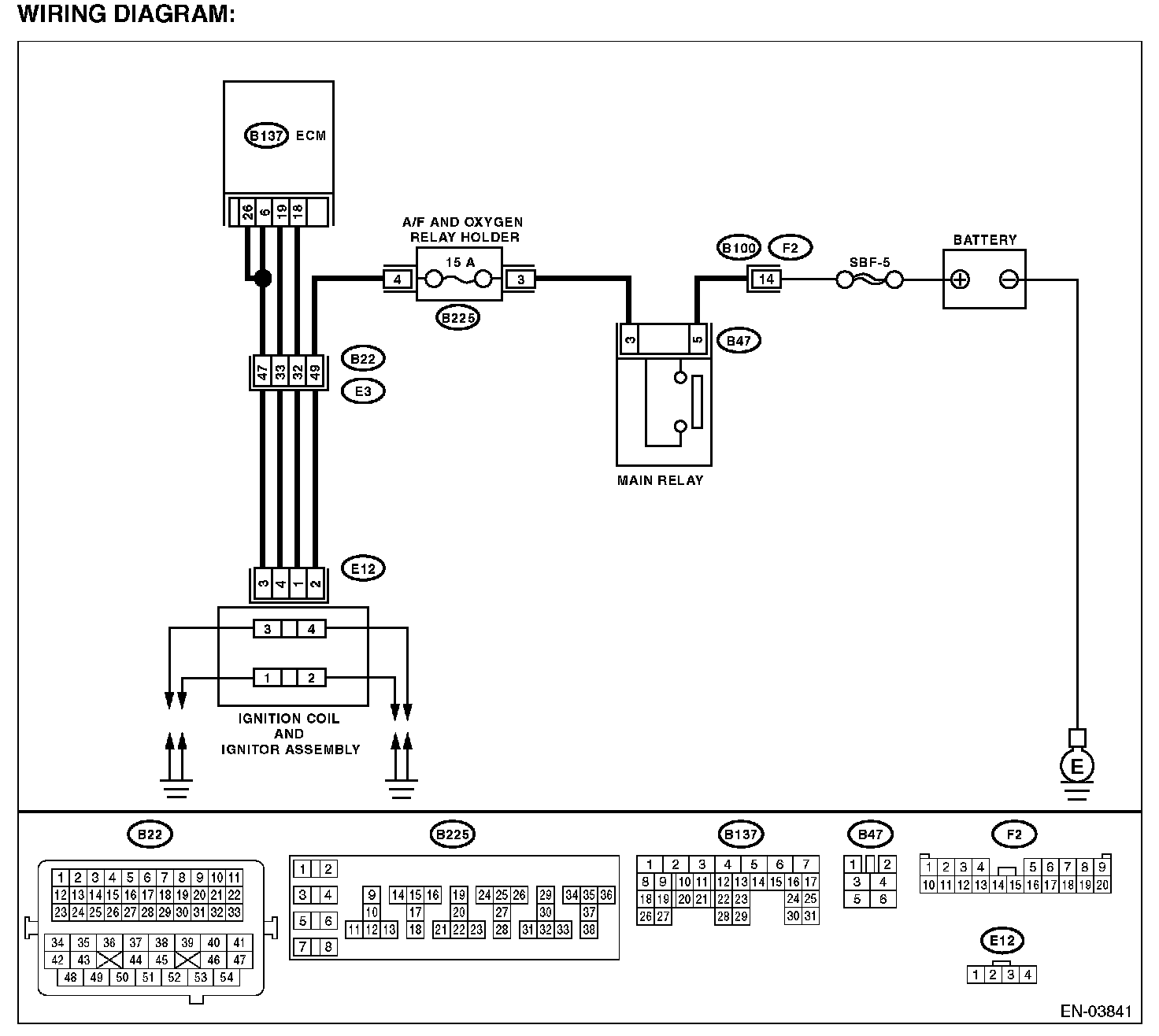

Wiring Diagram:






Step 1:

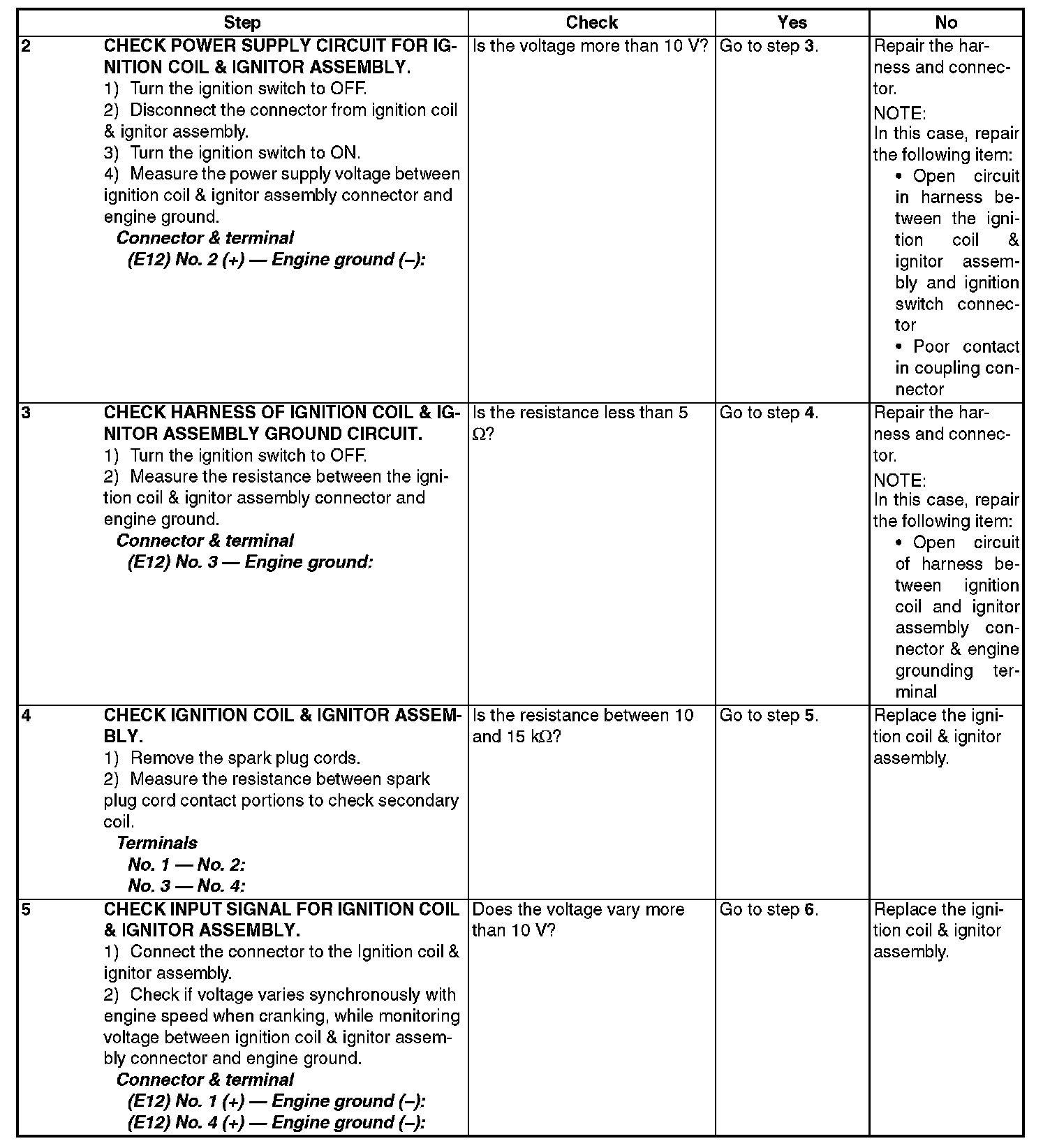

Step 2 - 5:

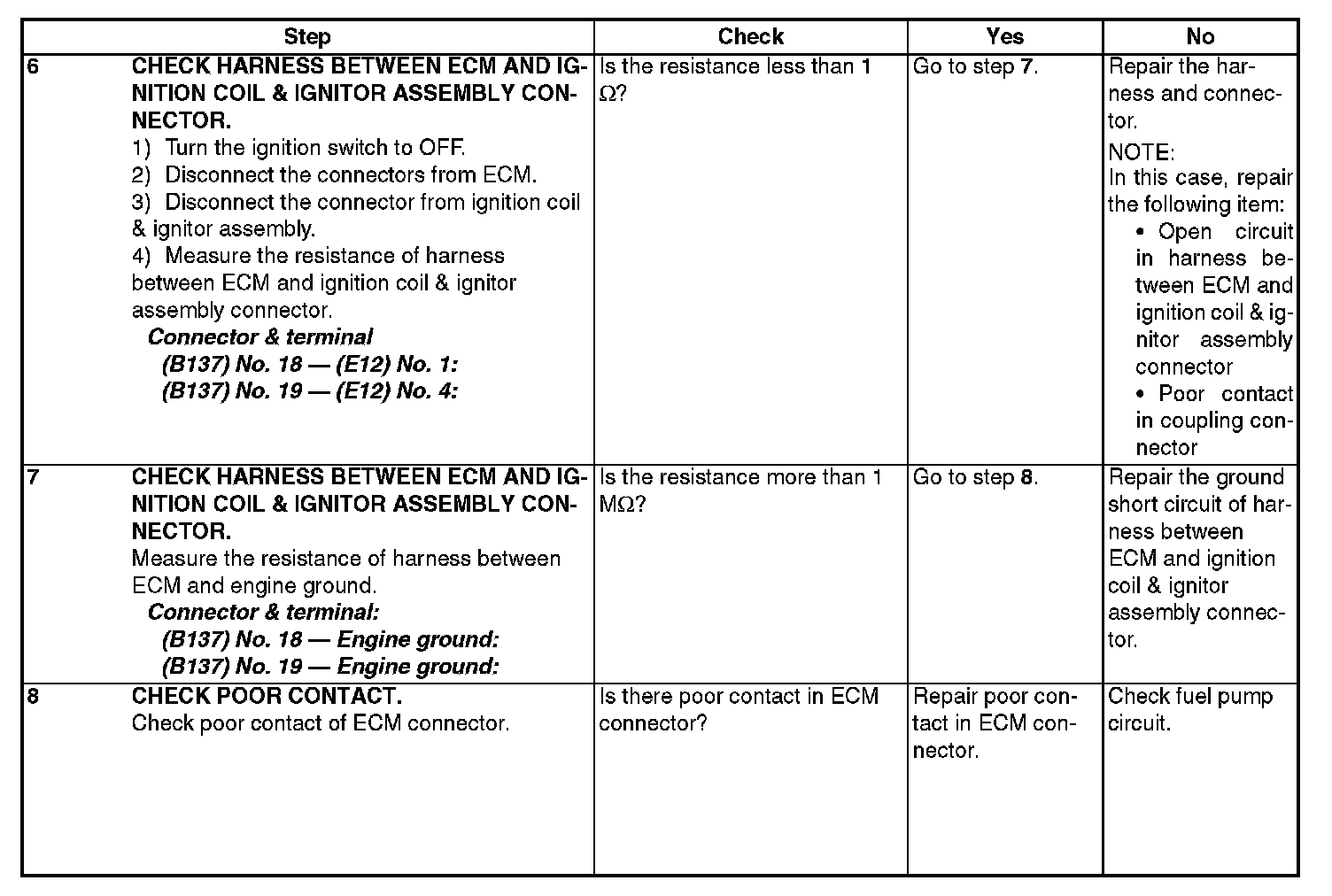

Step 6 - 8:
