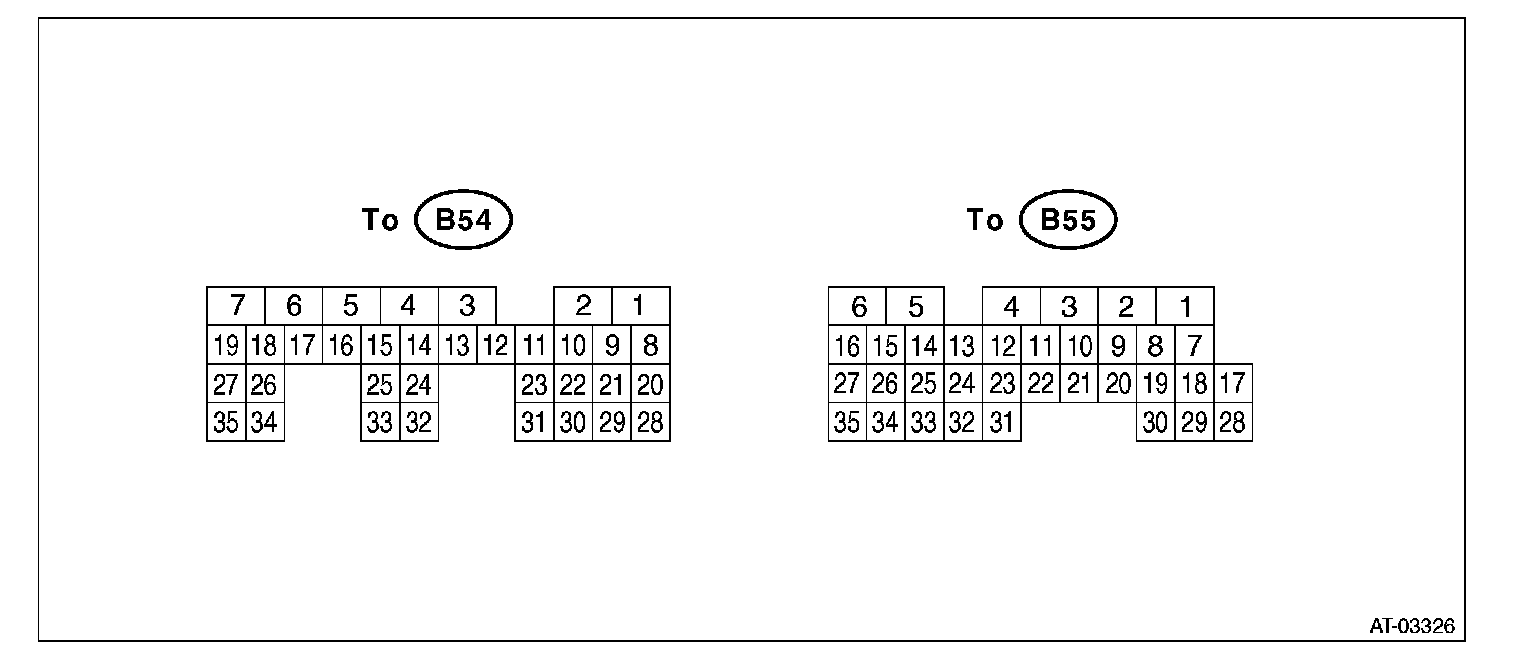

Transmission Control Module (TCM) I/O Signal
Transmission Control Module (TCM) I/O Signal

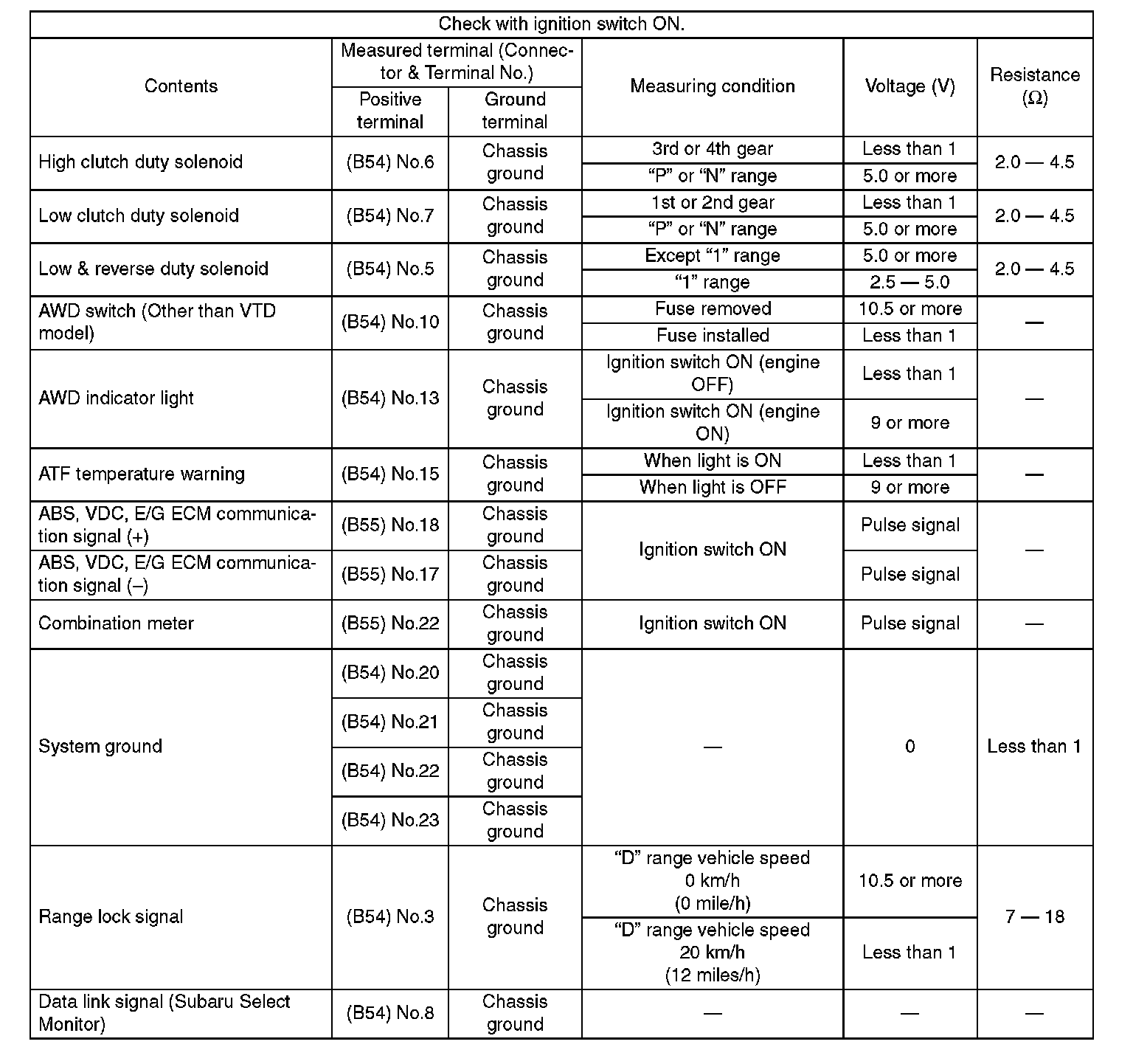

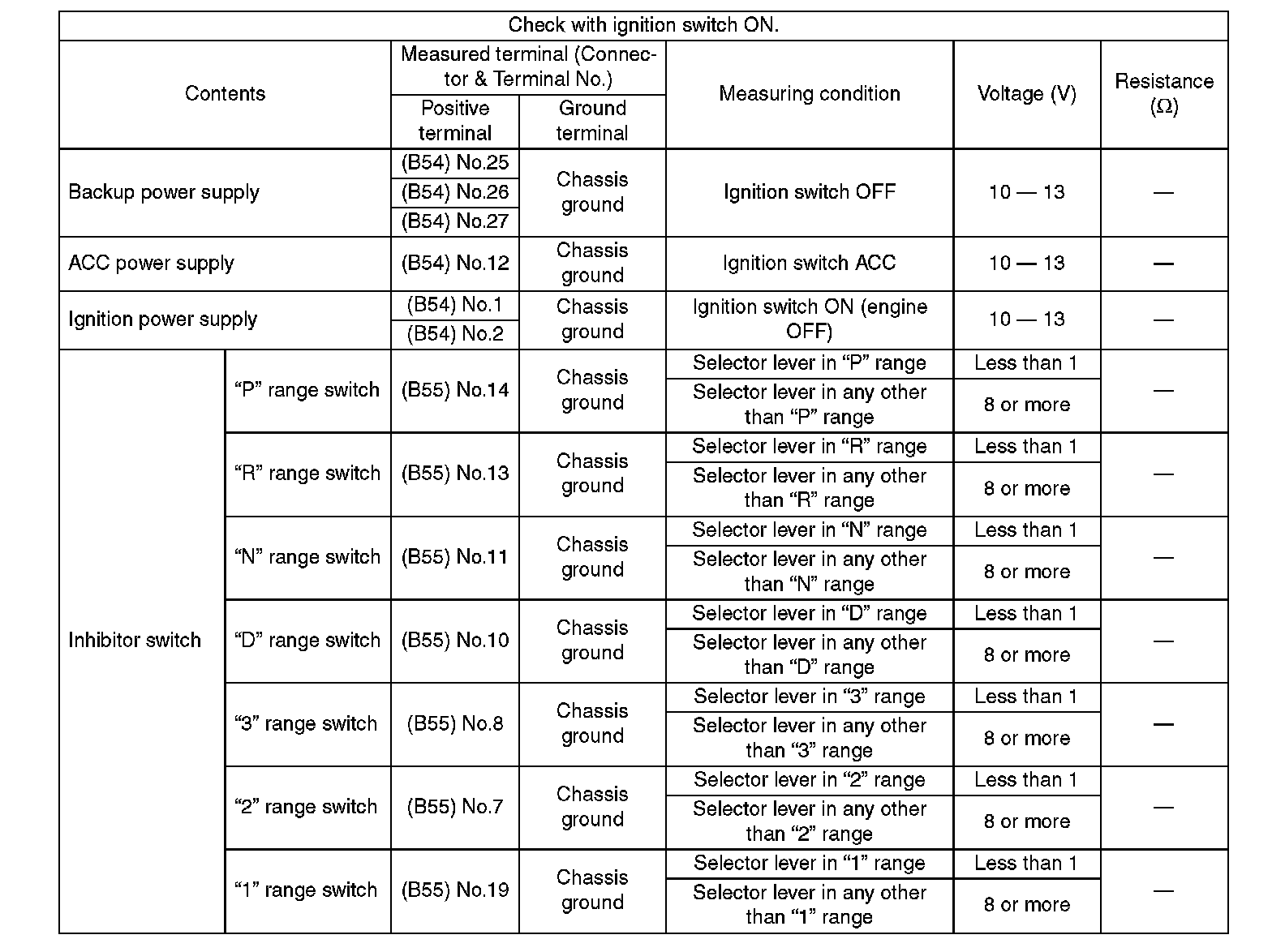

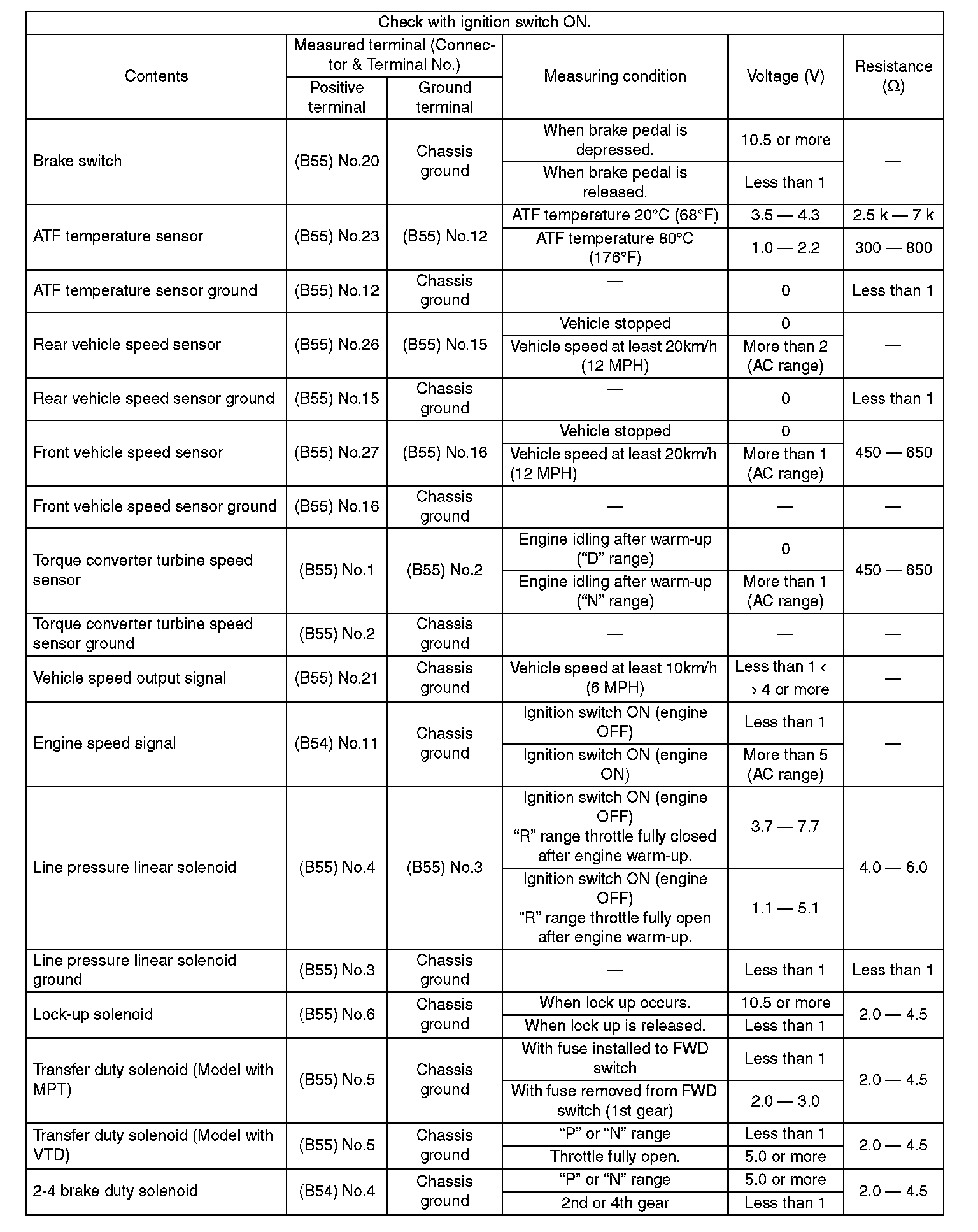

ELECTRICAL SPECIFICATION
