Control Module Pinout Values

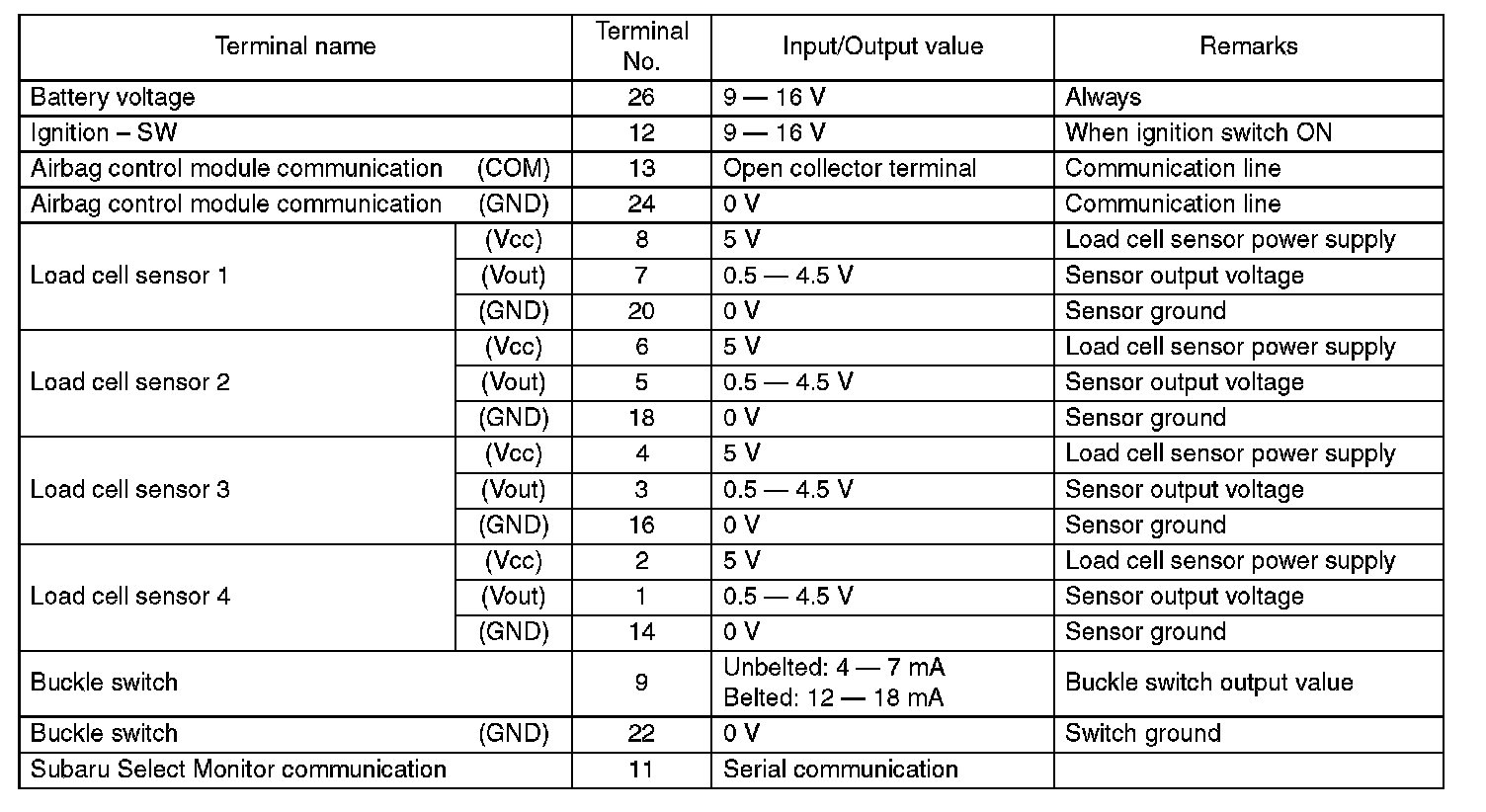

ELECTRICAL SPECIFICATION

Electrical Specification:

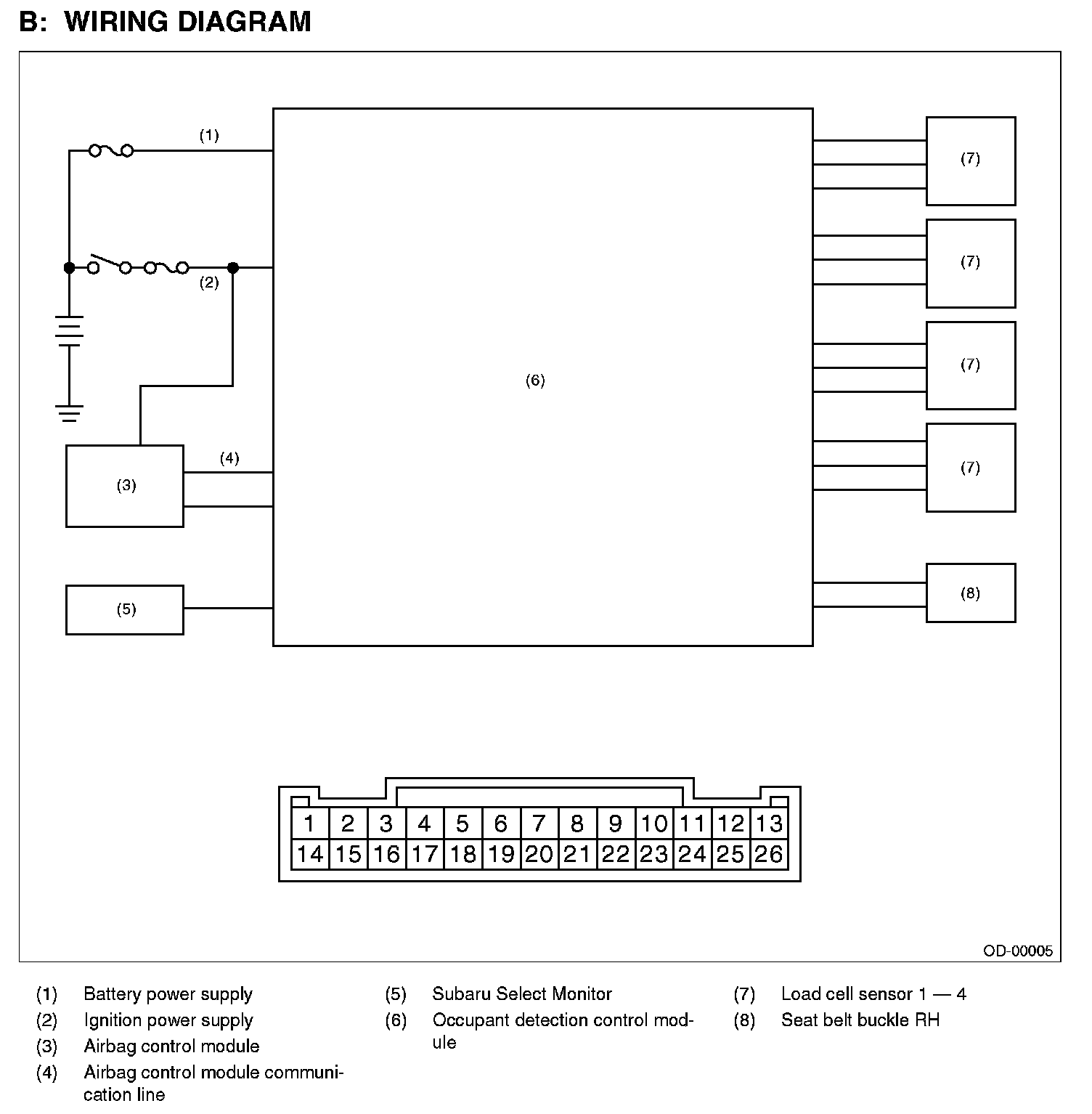

Wiring Diagram:

CAUTION: Never disassemble or disconnect the control module, load cell sensor or coupling harness, since each component of occupant detection system is assembled as seat frame assembly. (Disconnection from body harness connector, and disconnection of side airbag and buckle switch are OK.)
