Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references

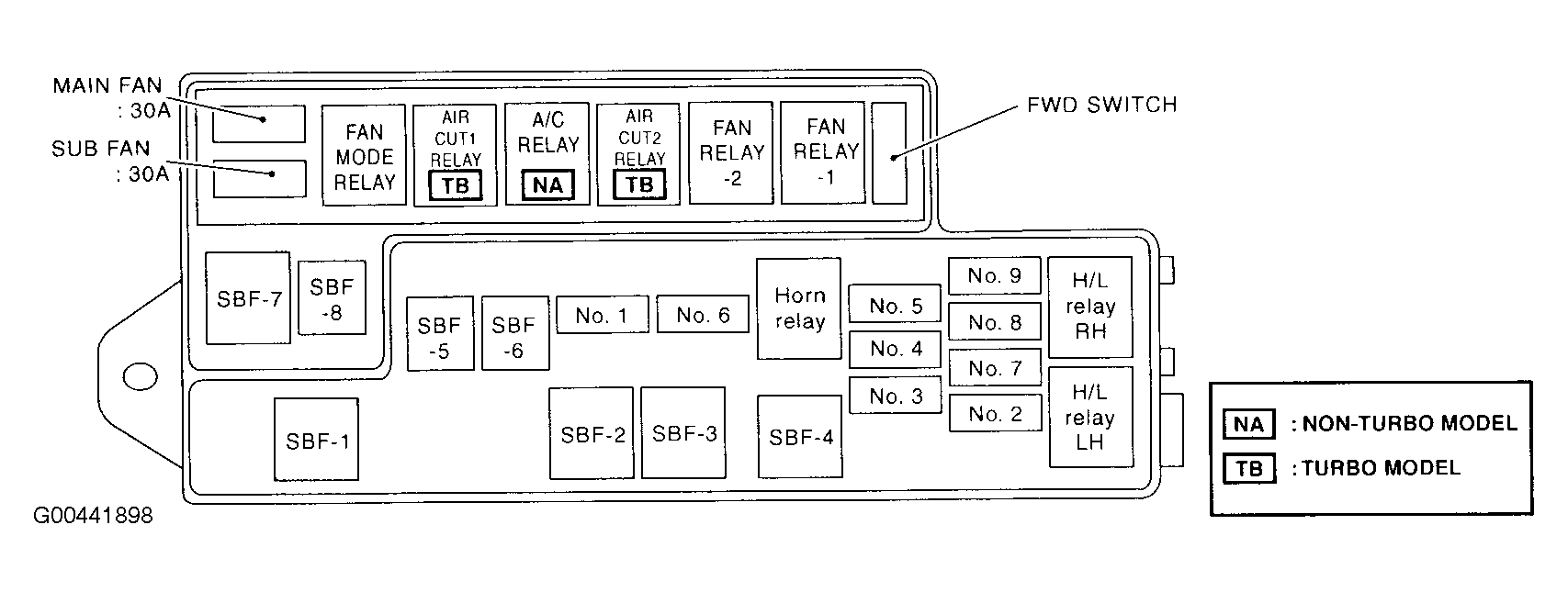

Fig 1: Main Fuse Box (M/B)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Engine Compartment

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Engine Compartment (Non-Turbo)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Engine Compartment (Turbo)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Dash & Center Console

Courtesy of SUBARU OF AMERICA, INC.

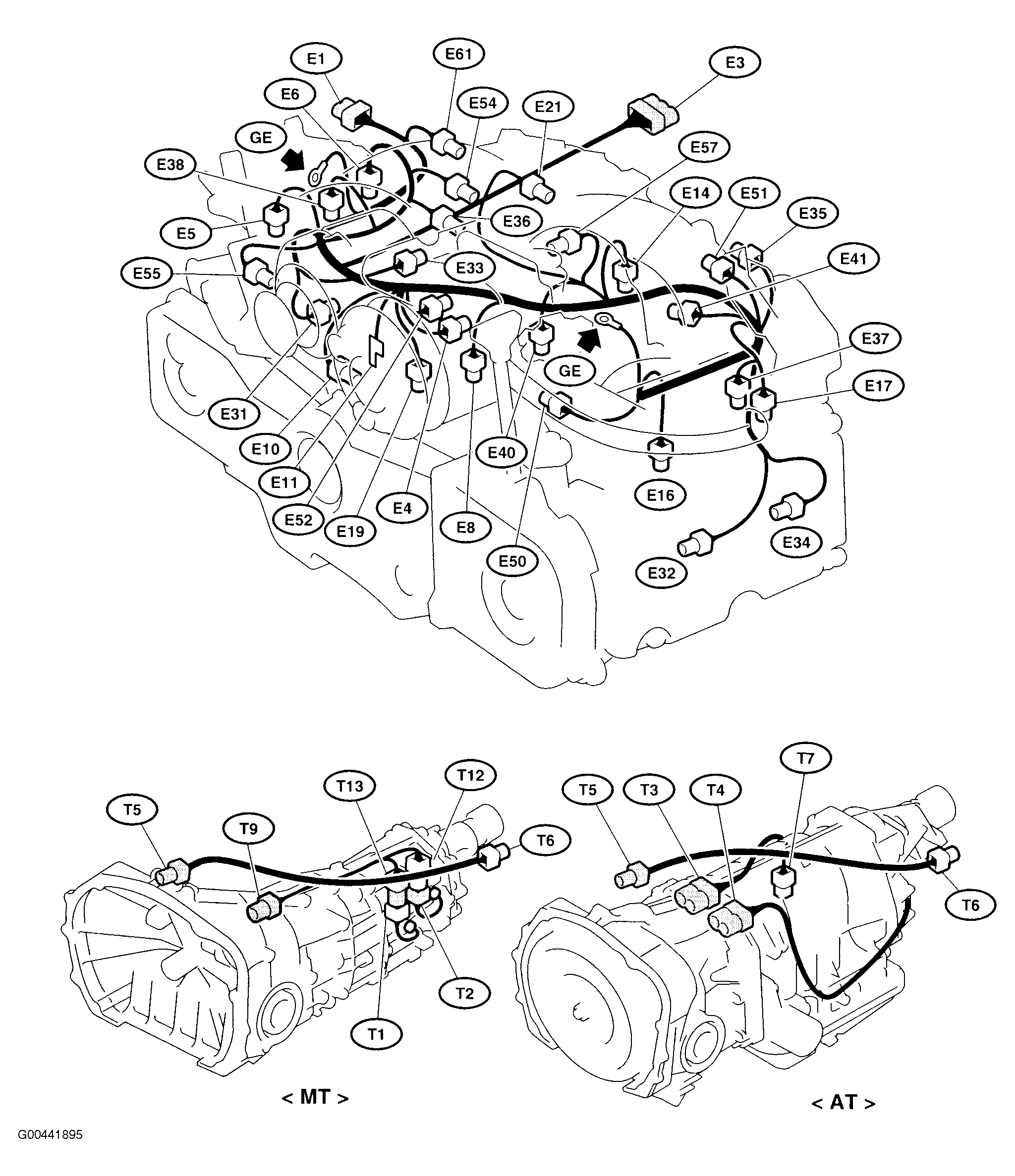

Fig 6: Engine & Transmission (Non-Turbo)

Courtesy of SUBARU OF AMERICA, INC.

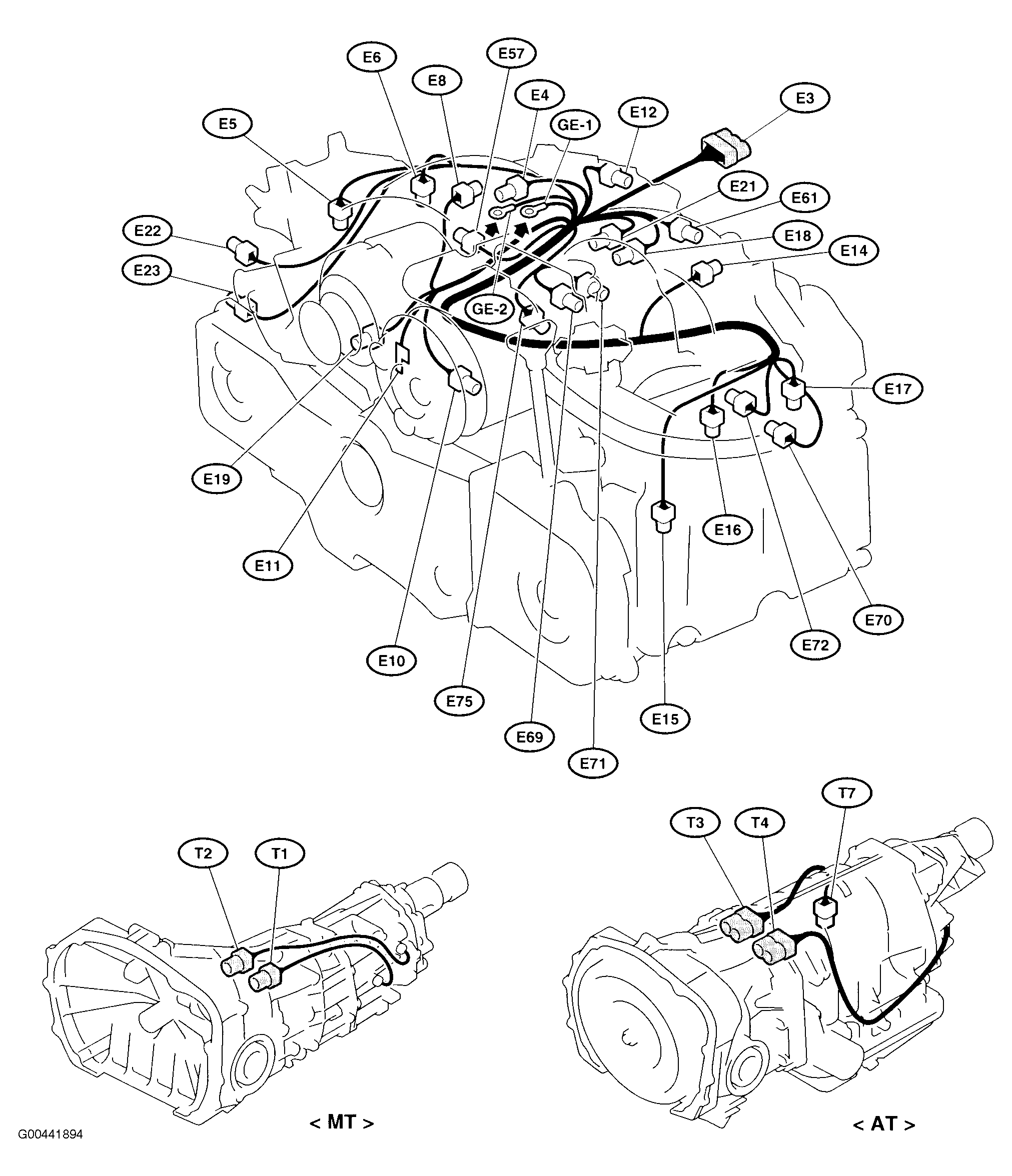

Fig 7: Engine & Transmission (Turbo)

Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Dash

Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Vehicle Overview

Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Vehicle Overview

Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Rear Of Vehicle

Courtesy of SUBARU OF AMERICA, INC.

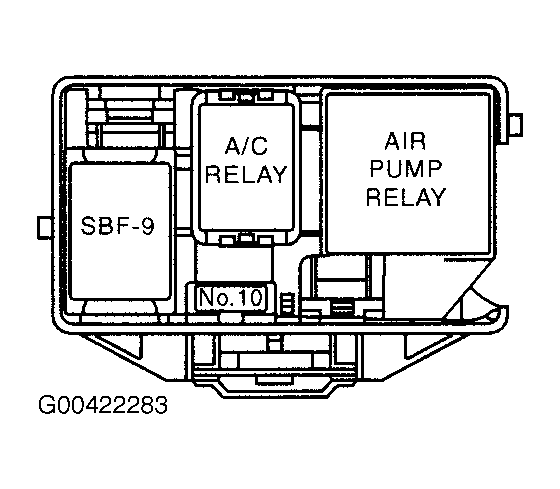

Fig 12: Secondary Air Fuse Box (Turbo)

Courtesy of SUBARU OF AMERICA, INC.
