Repair and Diagnosis
>>
Engine Mechanical
>>
Lubrication System
>>
Engine Lubrication System (H4SO)
>>
General Description
>>
Components With Torque Specifications
>>
Turbo Model
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Turbo Model

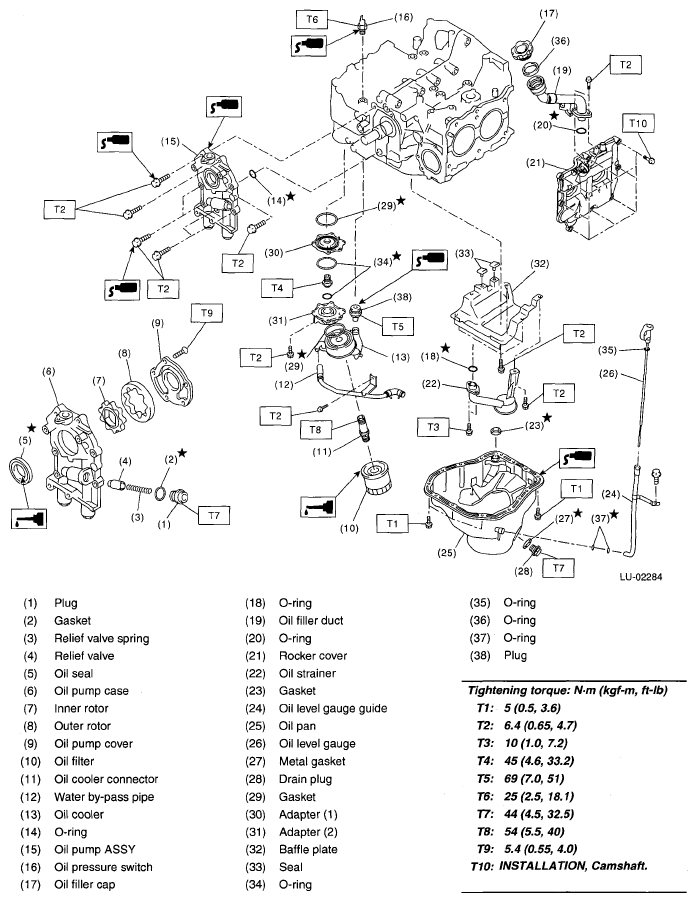

Fig 1: Turbo Model Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
