Fixed Glass (Wagon Model)

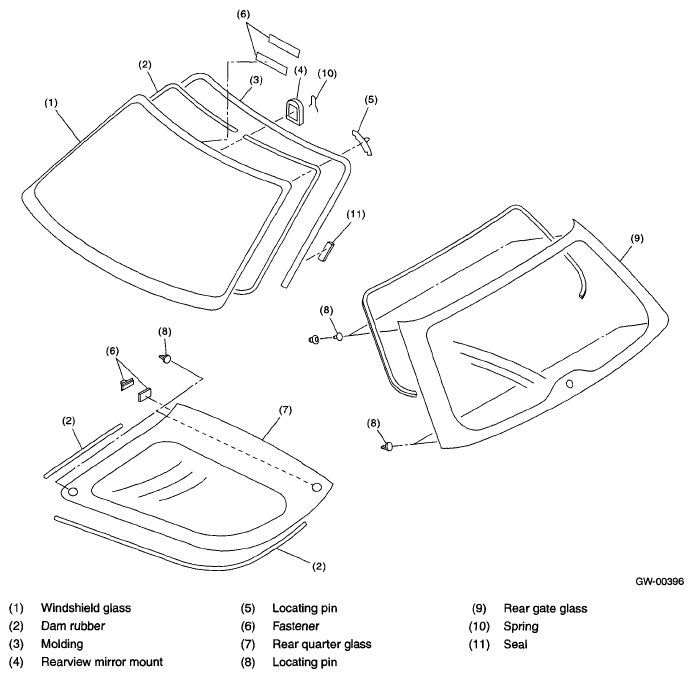

Fig 1: Identifying Fixed Glass Components For Wagon Model
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
