Starter Motor: Testing and Inspection

STARTER MOTOR CIRCUIT

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode and Inspection Mode.

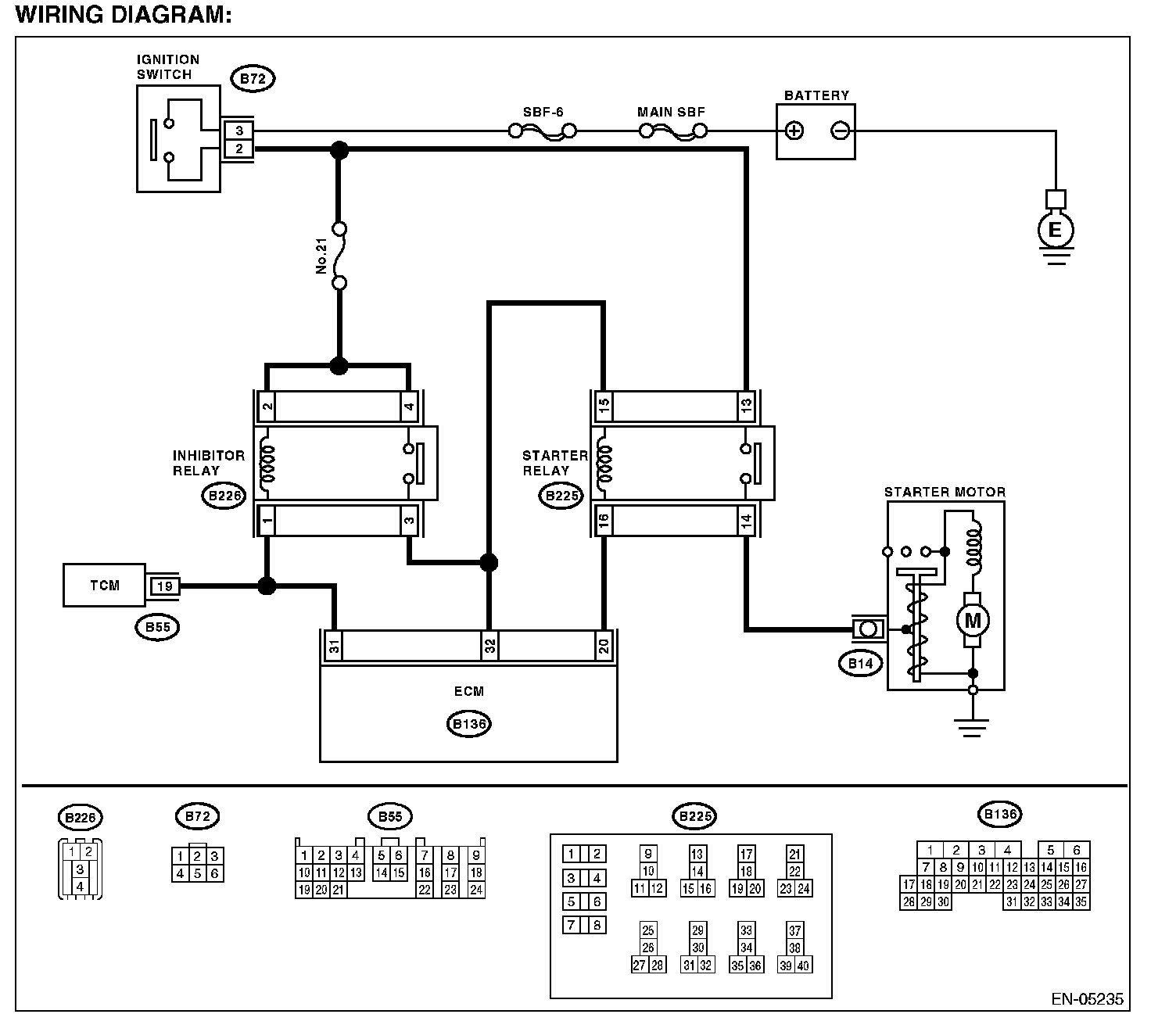

Wiring Diagram:

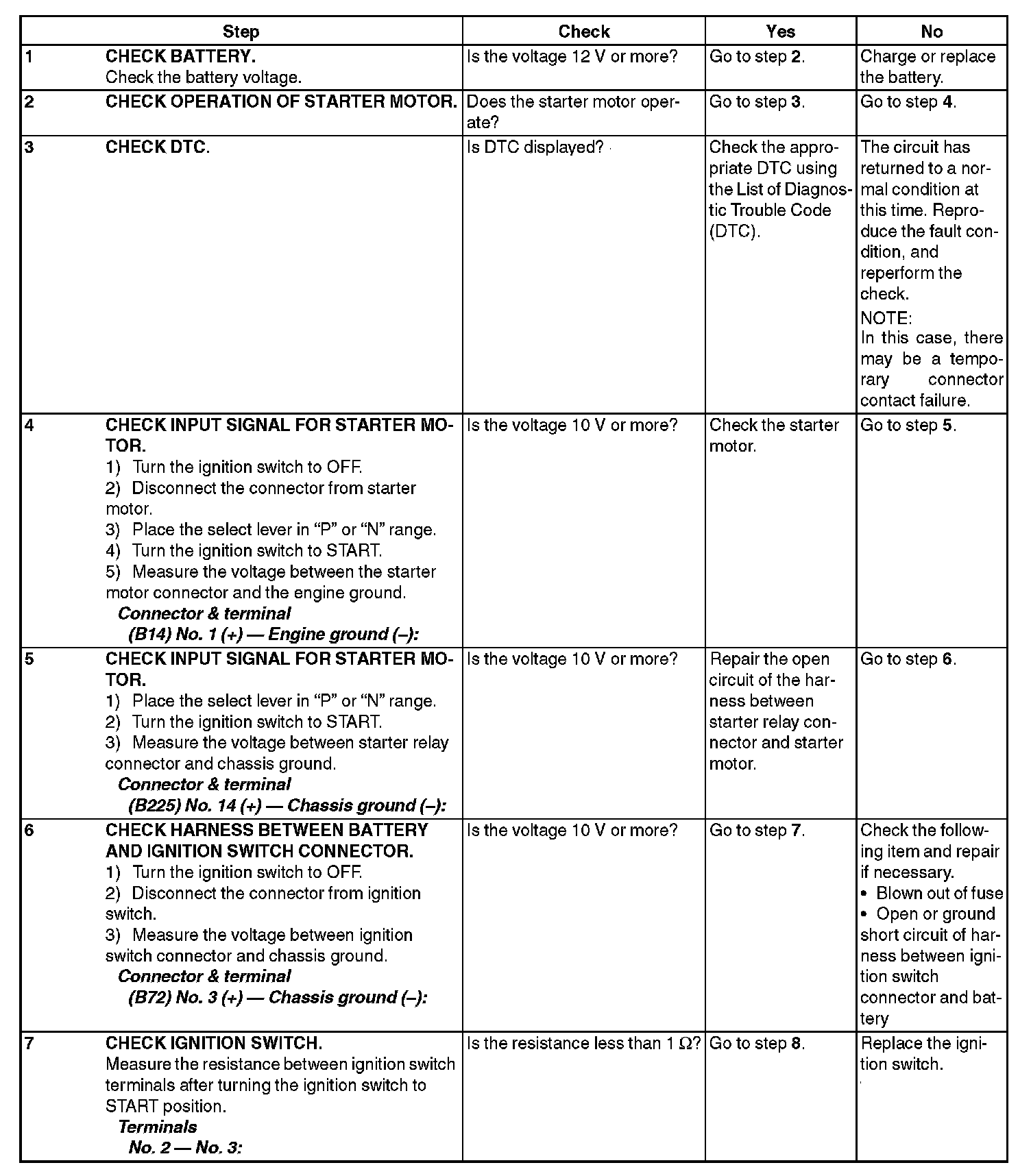

Step 1-7:

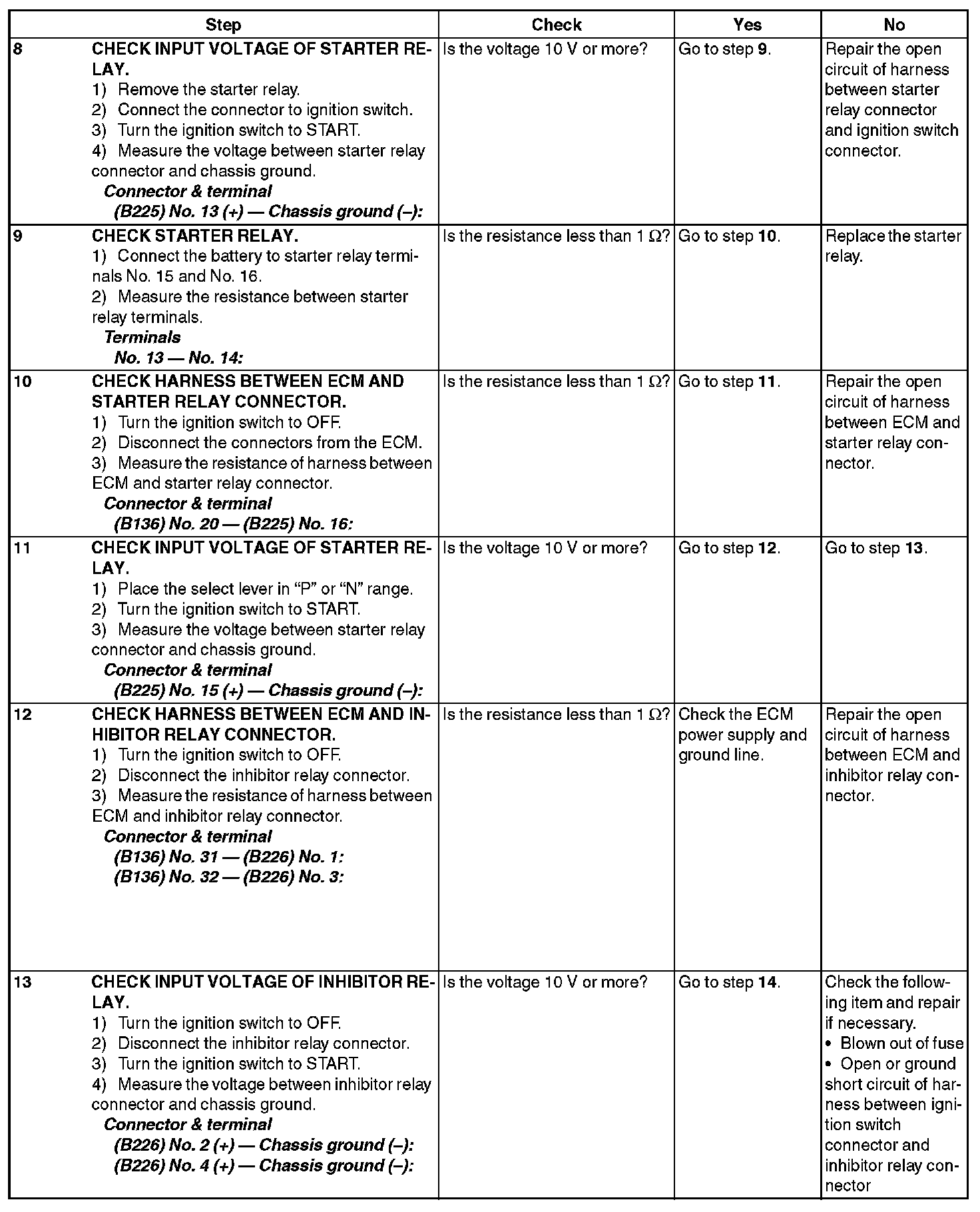

Step 8-13:




Step 14-16:
