Fuel Tank

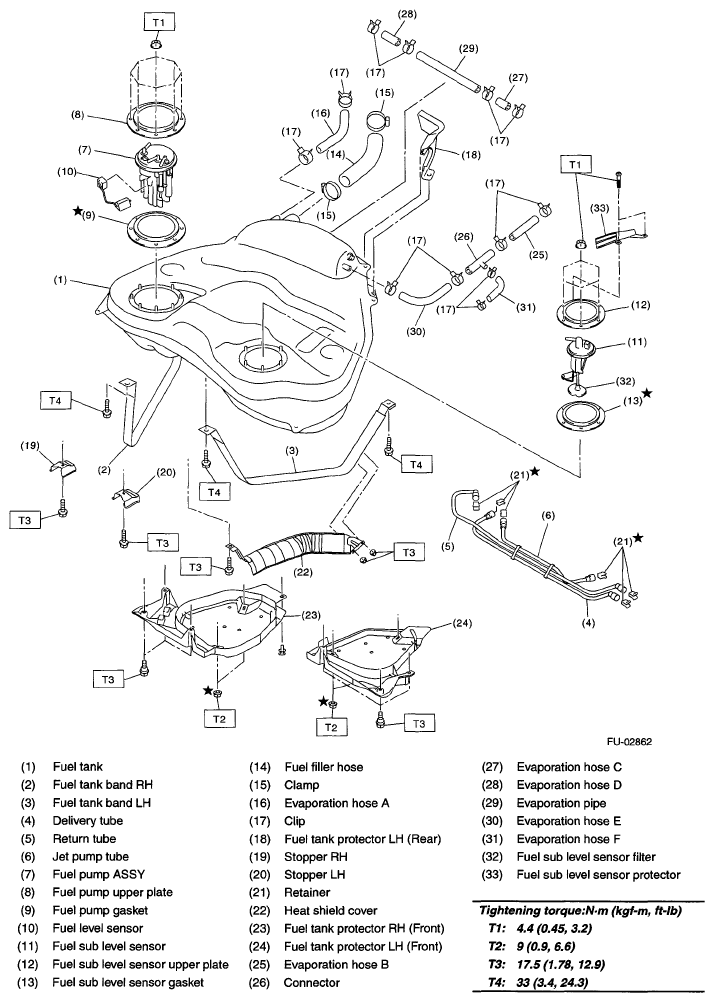

Fig 1: Exploded View Of Fuel Tank With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
