LOADCELL Sensor

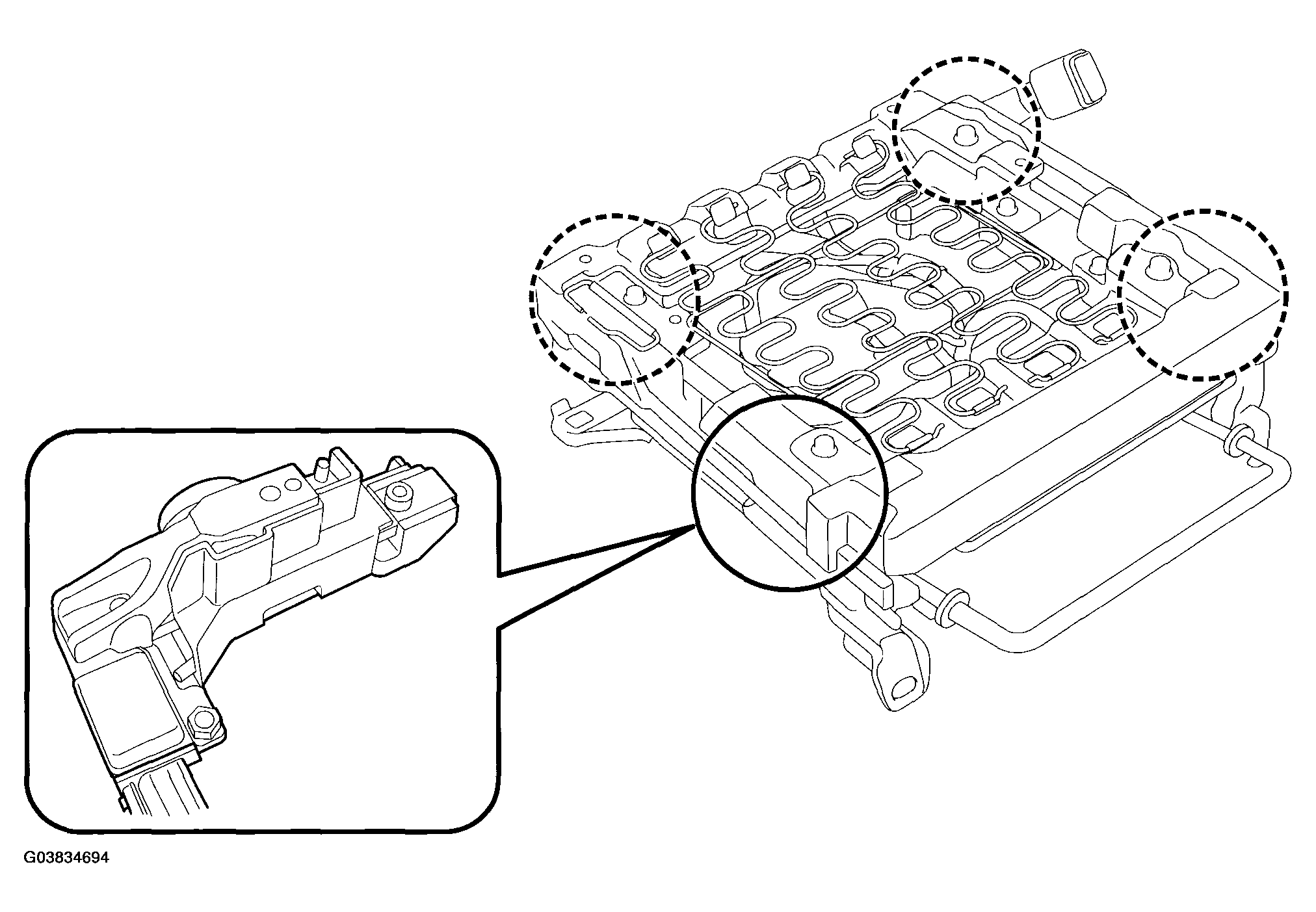

Fig 1: Identifying Loadcell Sensor Location

Courtesy of SUBARU OF AMERICA, INC.

Four loadcell sensors are installed on the passenger's seat and each sensor measures the load to send signals to the load occupant detection control module.
