Conditions For Abs Sequence Control

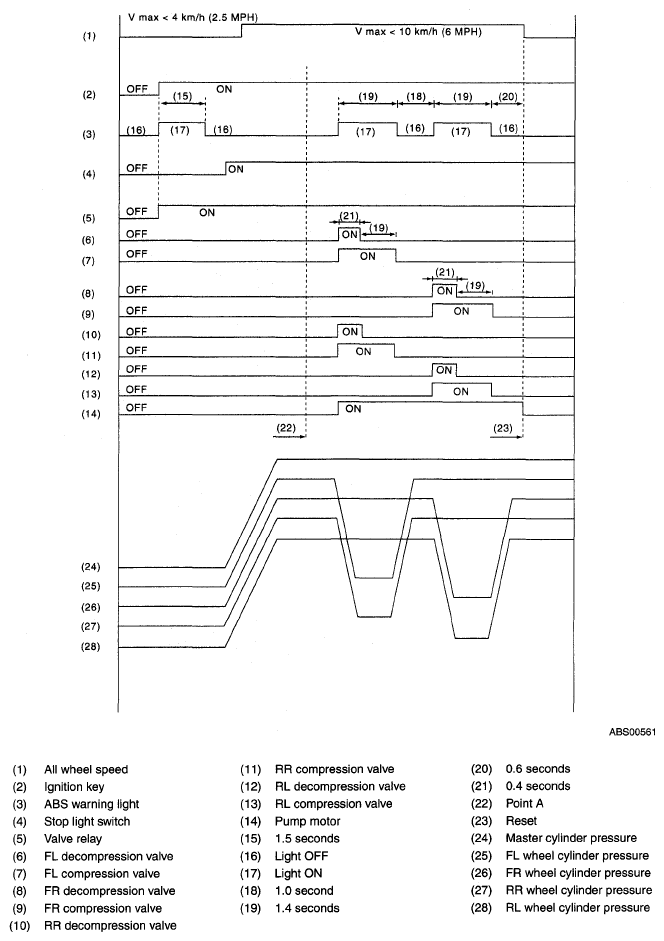

Fig 1: Identifying Blinking Pattern
G05020212Courtesy of SUBARU OF AMERICA, INC.
NOTE: The control operation starts from point A.
