Keyless Entry

ELECTRICAL SPECIFICATION

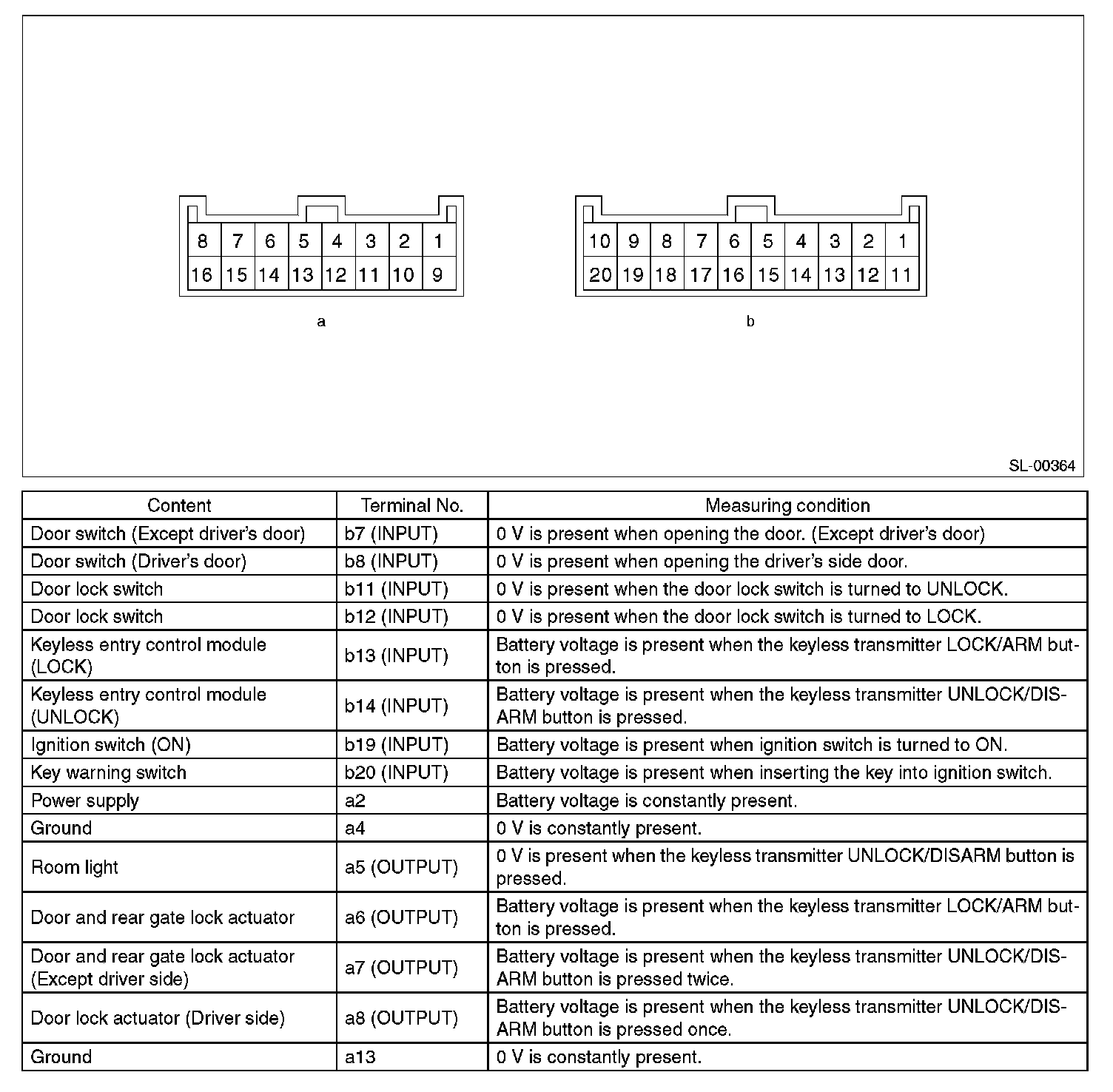

1. KEYLESS ENTRY CONTROL MODULE

Electrical Specification - Keyless Entry Control Module:

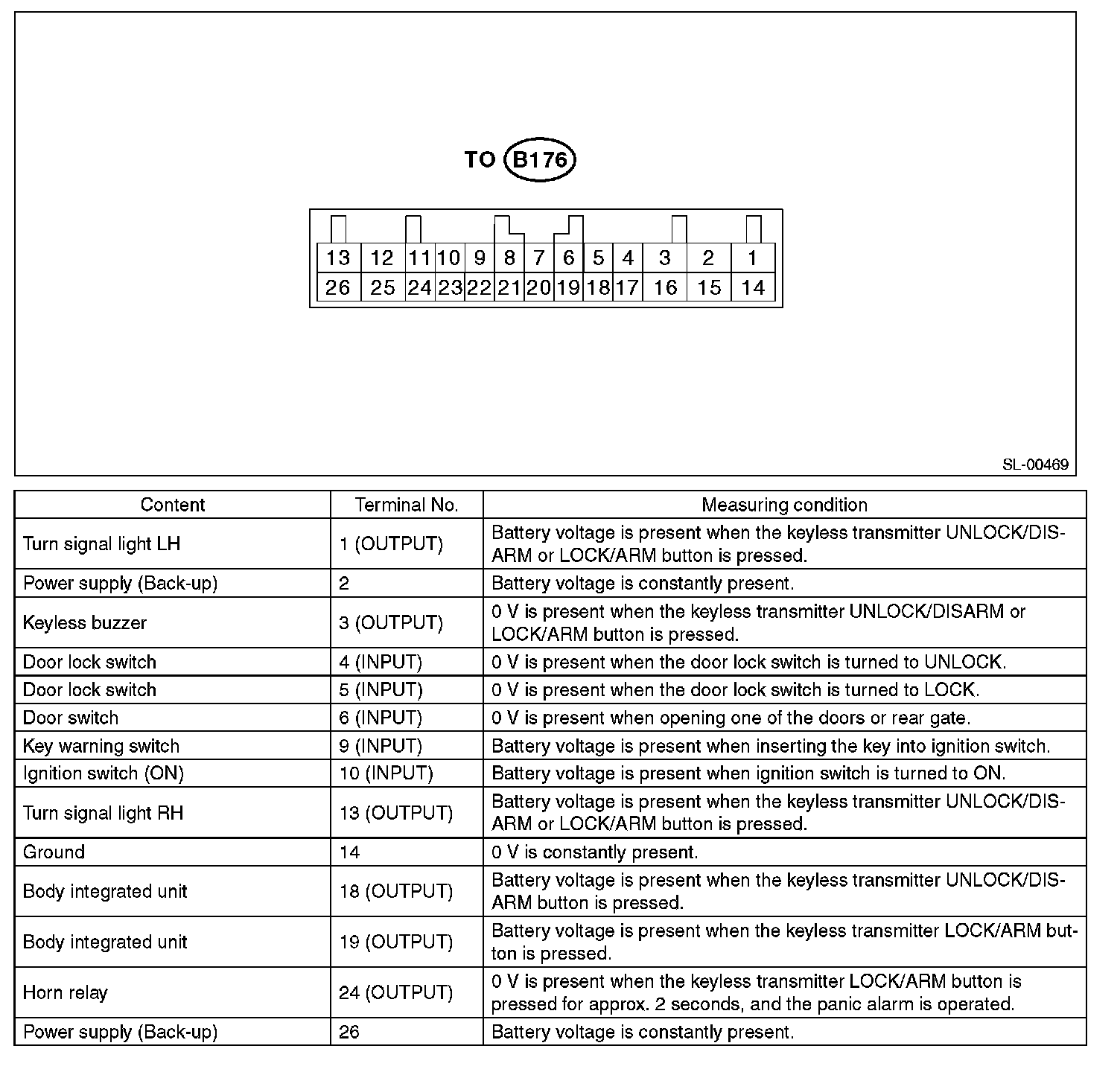

2. BODY INTEGRATED UNIT

Electrical Specification - Body Integrated Unit:
