Check Power Supply and Ground Line of Engine Control Module (ECM)
CHECK POWER SUPPLY AND GROUND LINE OF ENGINE CONTROL MODULE (ECM)CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode. Reading and Clearing Diagnostic Trouble Codes

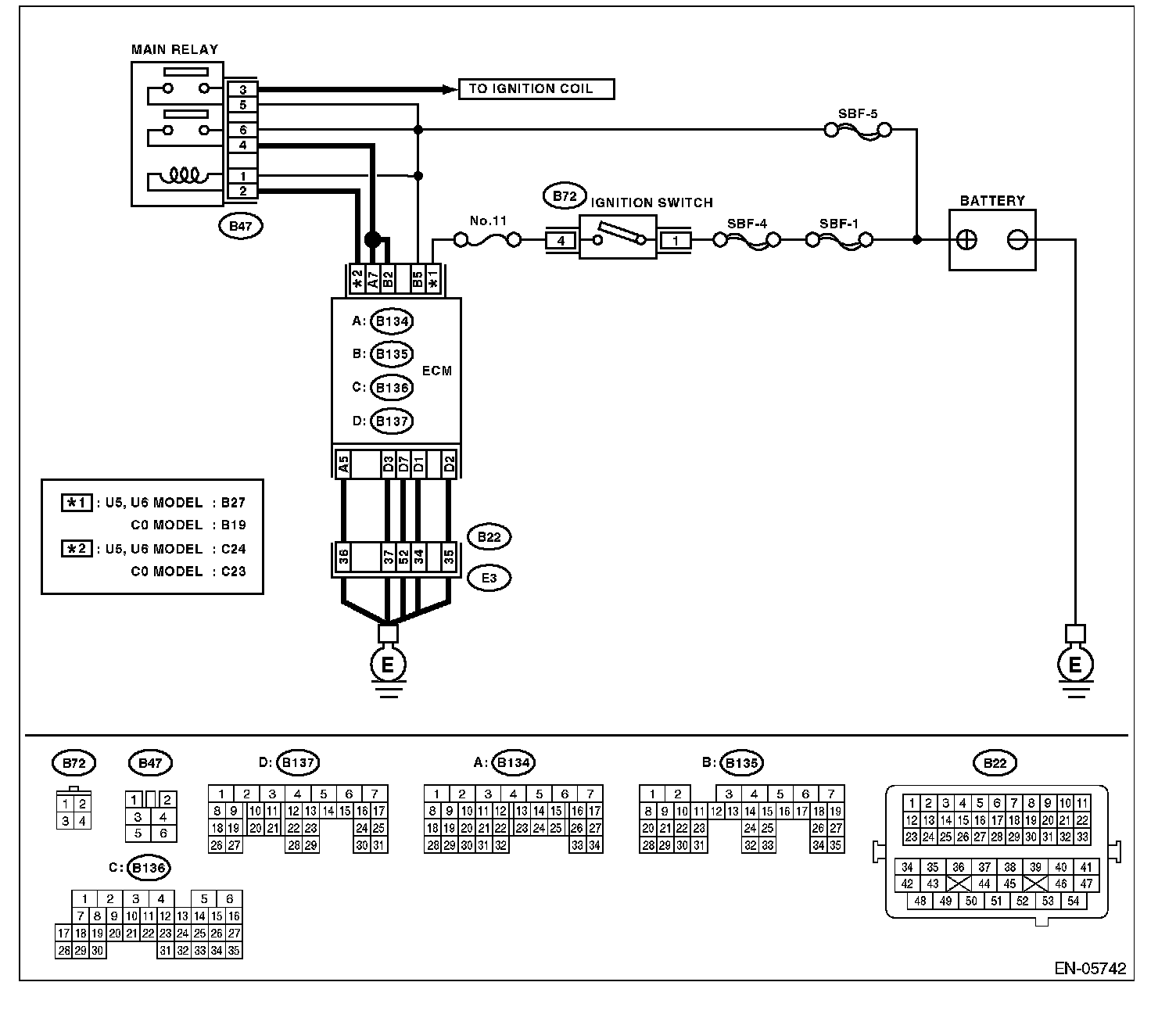

WIRING DIAGRAM:
Wiring Diagram:

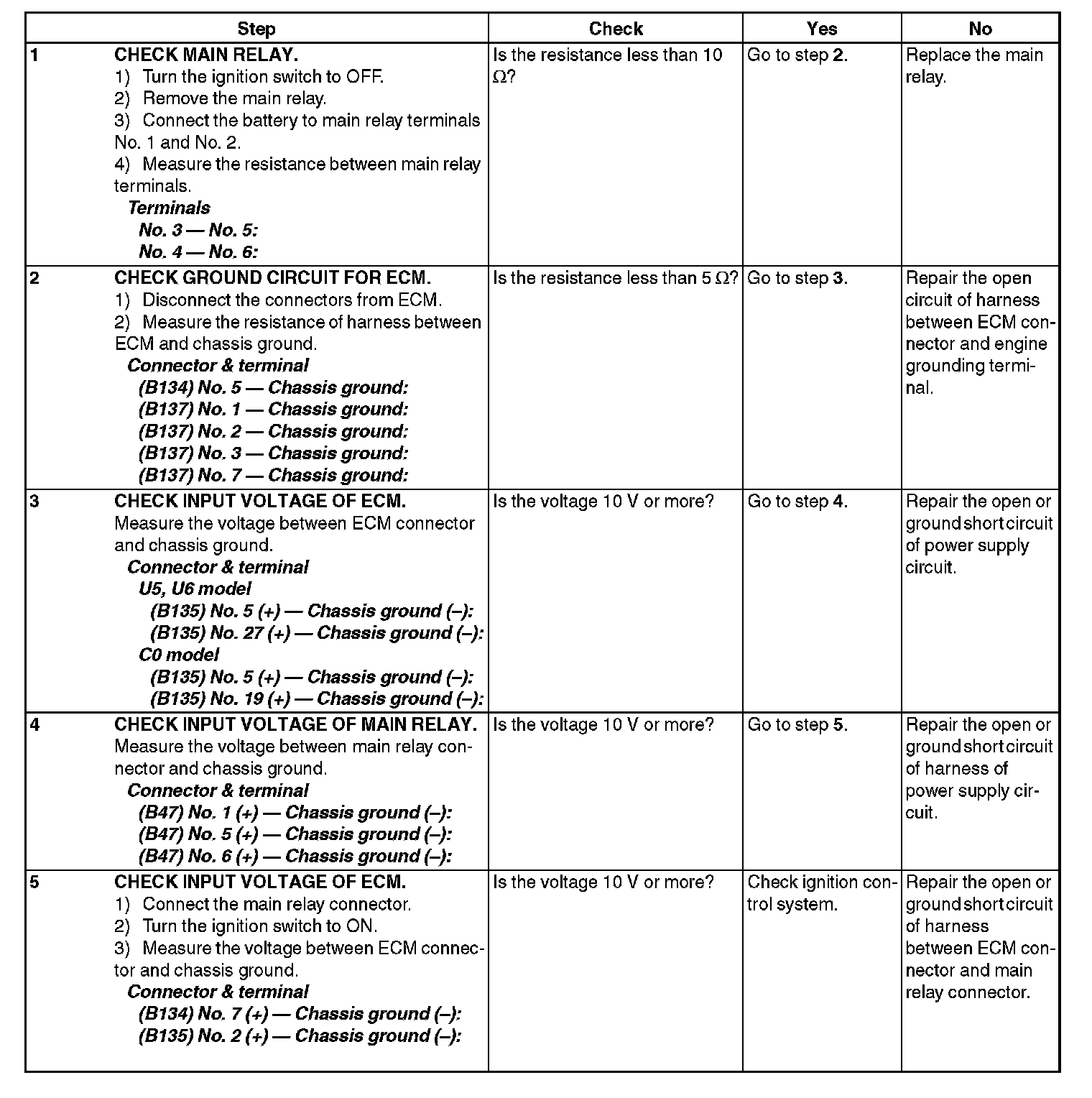

Step 1-5:
