Conditions For VDC Sequence Control

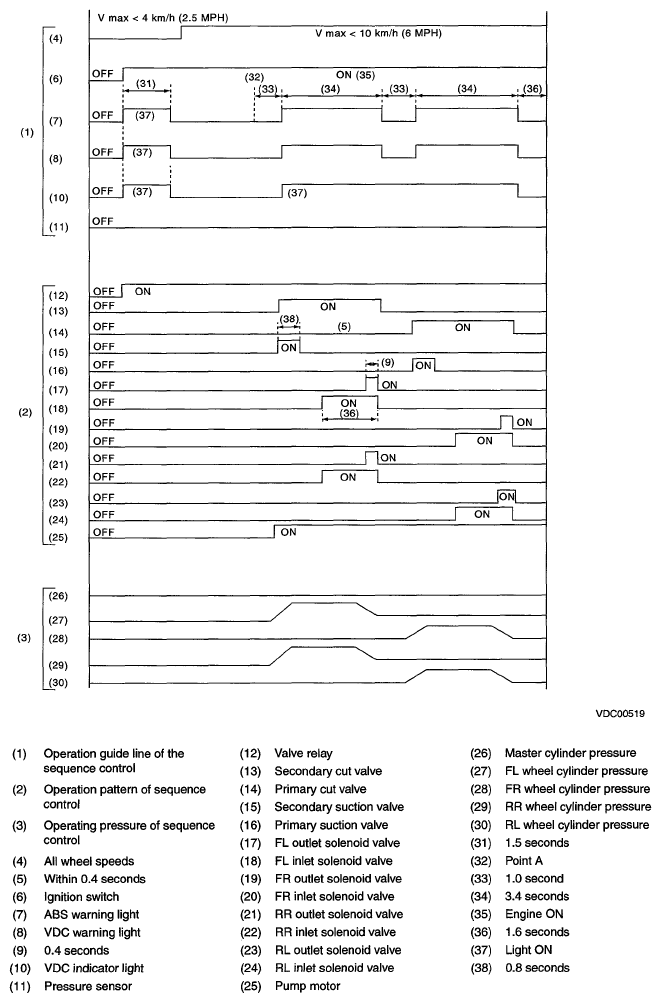

Fig 1: VDC Sequence Control Conditions Diagram
NOTE:
Operation starts from point A.
