Rear Suspension System: General Description: Components

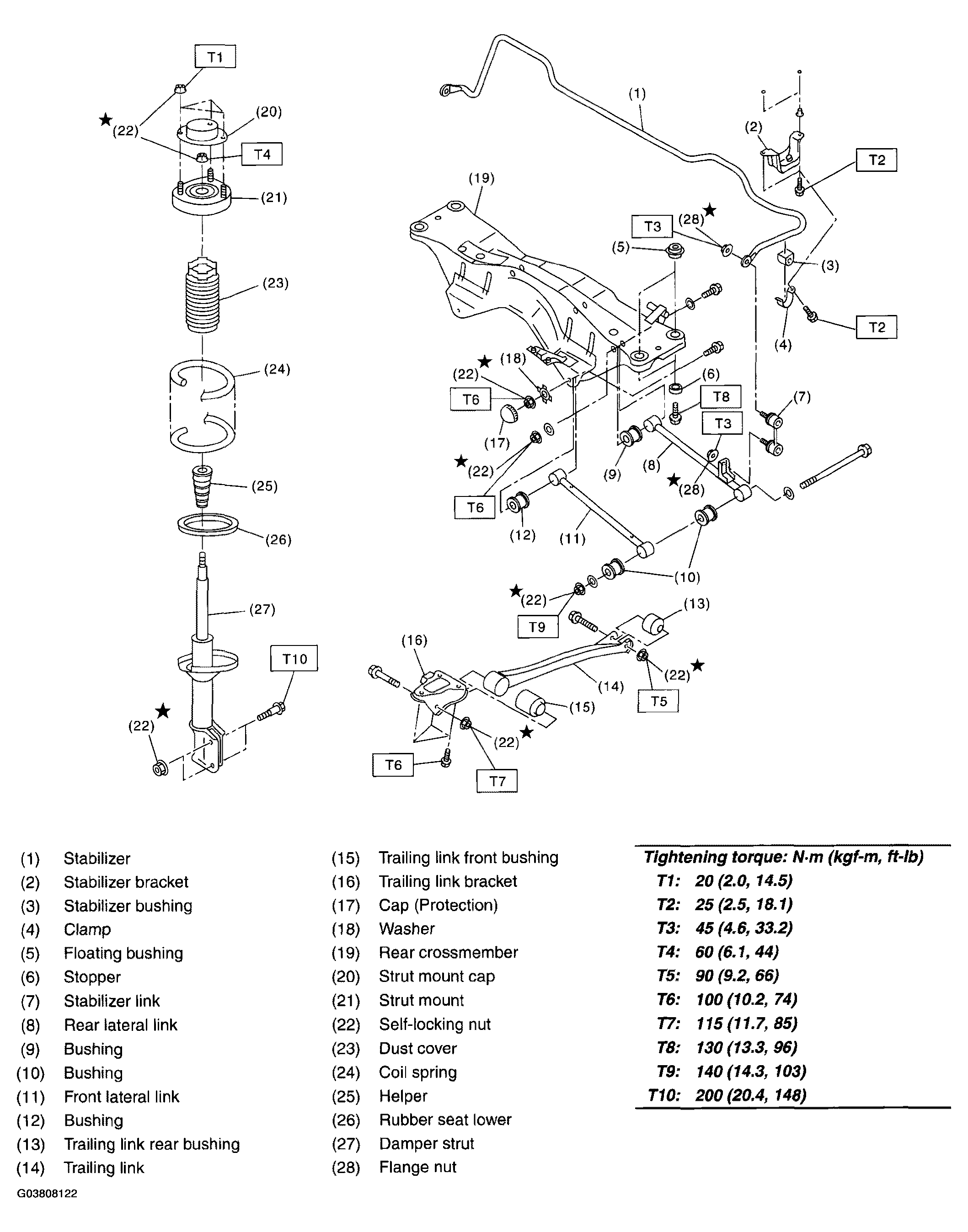

Fig 1: Exploded View Of Rear Suspension Components With Torque Specifications
G03808122Courtesy of SUBARU OF AMERICA, INC.
