Engine Controls - Engine (Diagnostics) (H4SO): Electrical Component Location: Location: Engine

Control module

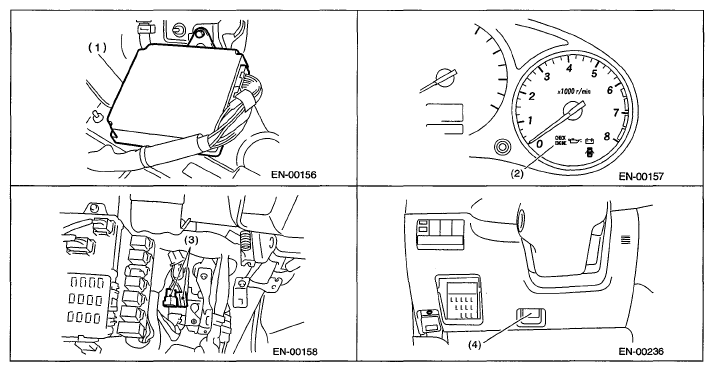

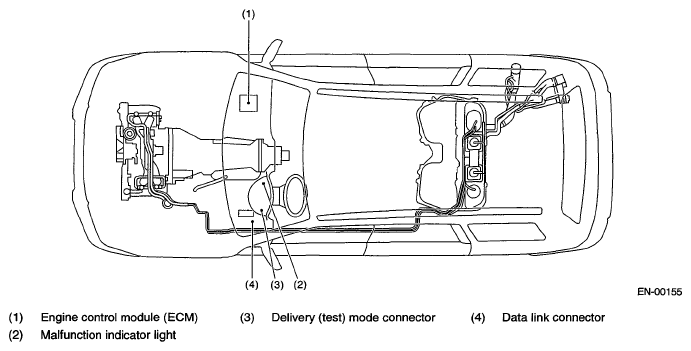

Fig 1: Identifying Engine Control Module Components (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Identifying Engine Control Module Components (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Sensor

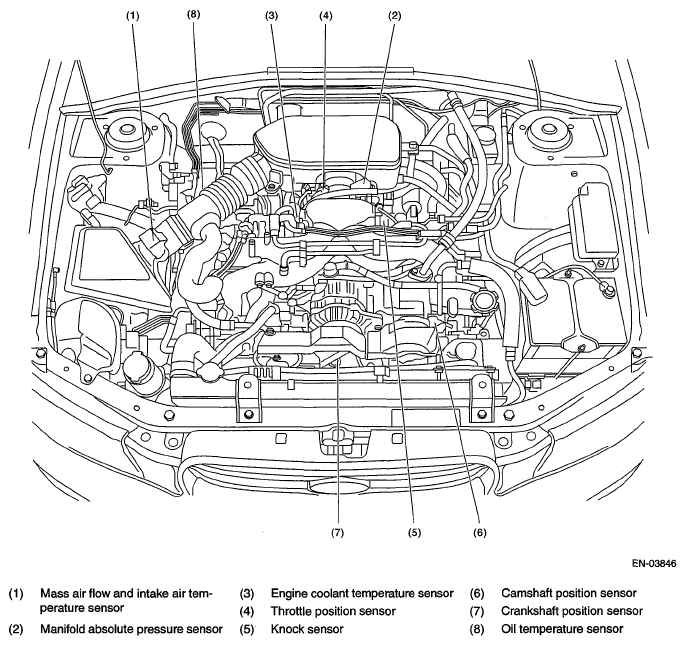

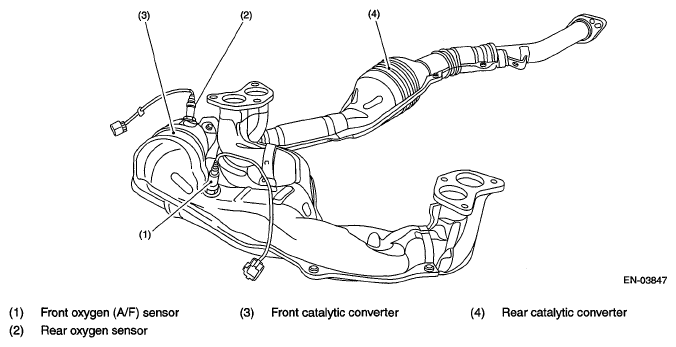

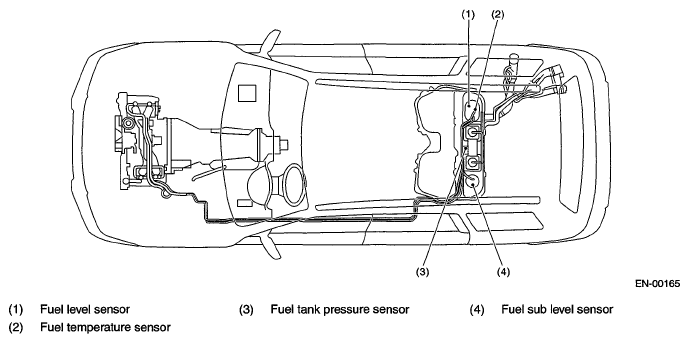

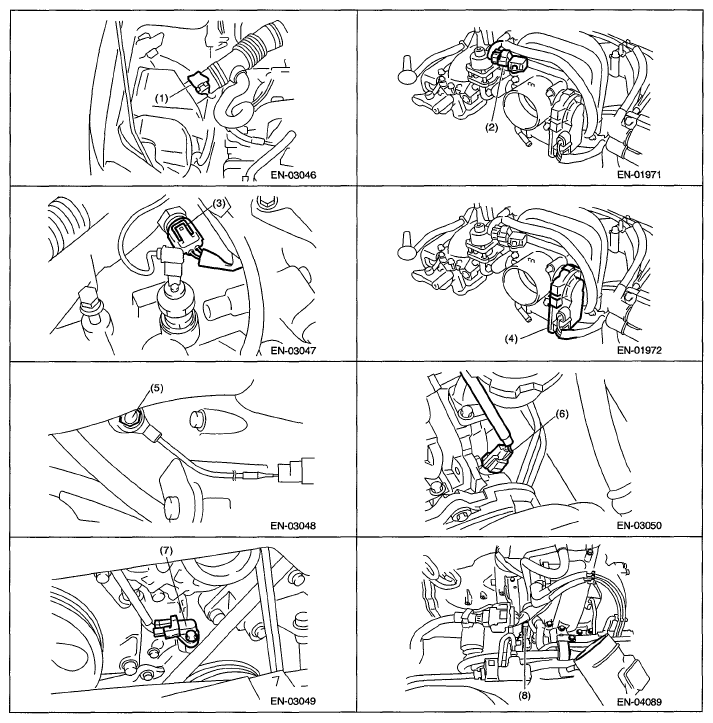

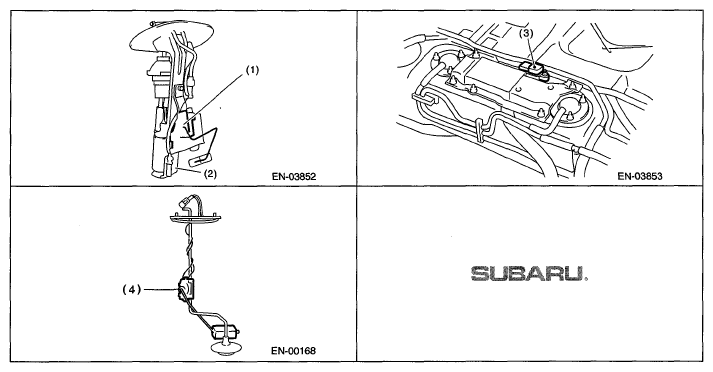

Fig 3: Identifying Engine Sensor Components (1 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Identifying Engine Sensor Components (2 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Engine Sensor Components (3 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Identifying Engine Sensor Components (4 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Identifying Engine Sensor Components (5 Of 5)
Courtesy of SUBARU OF AMERICA, INC.
Solenoid valve, emission control system parts and ignition system parts

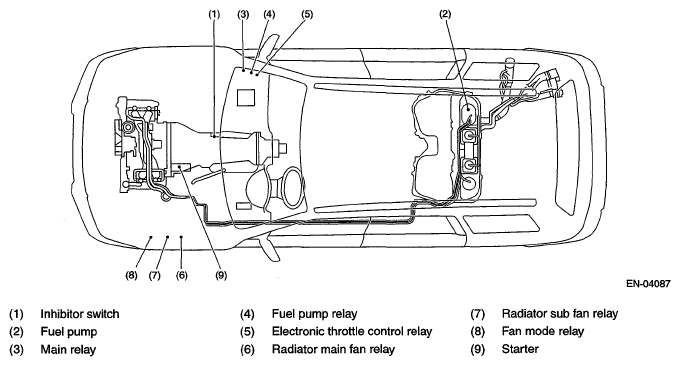

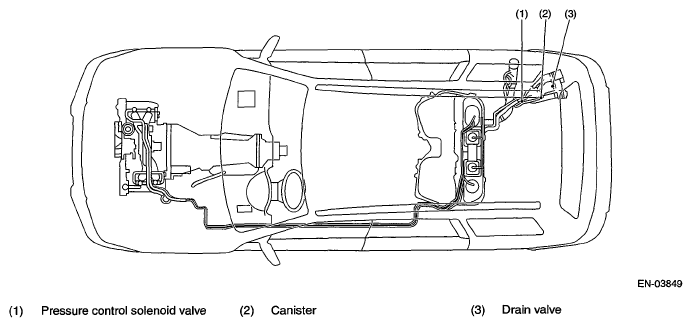

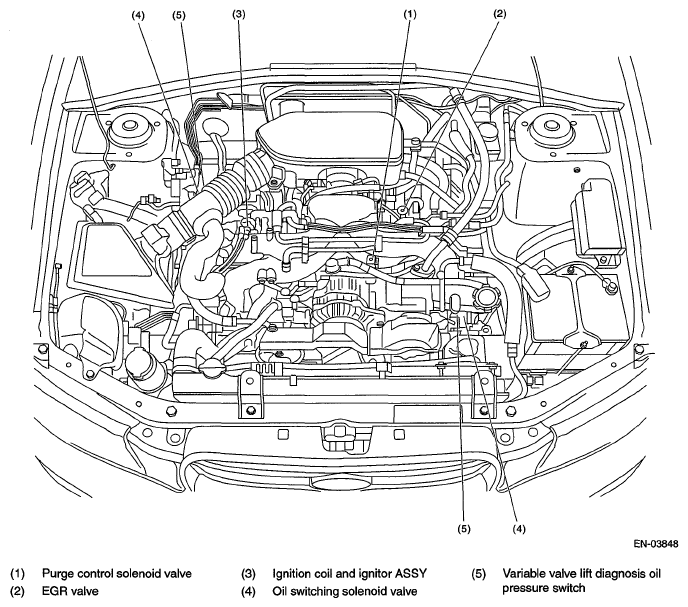

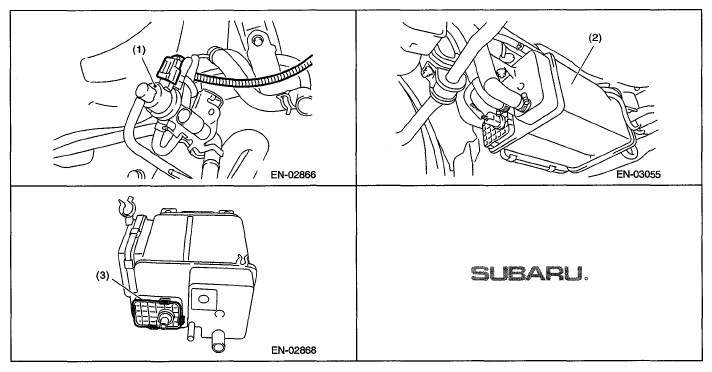

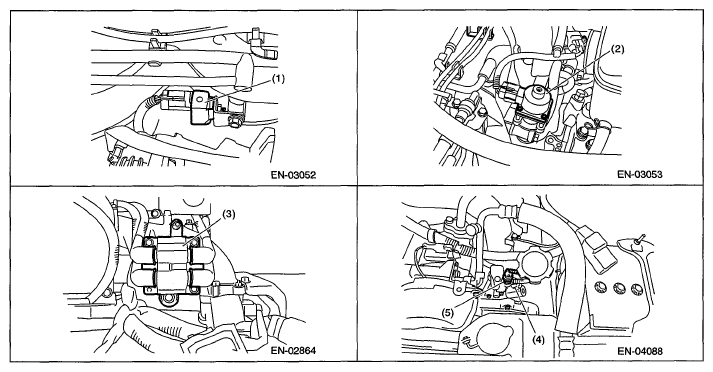

Fig 8: Identifying Solenoid Valve, Emission Control System And Ignition System Parts Components (1 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Identifying Solenoid Valve, Emission Control System And Ignition System Parts Components (2 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Identifying Solenoid Valve, Emission Control System And Ignition System Parts Components (3 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Identifying Solenoid Valve, Emission Control System And Ignition System Parts Components (4 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 12: Identifying Solenoid Valve, Emission Control System And Ignition System Parts Components (5 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 13: Identifying Solenoid Valve, Emission Control System And Ignition System Parts Components (6 Of 6)
Courtesy of SUBARU OF AMERICA, INC.
