Non-Turbo Model
WARNING:
This page is about a different variant/trim than selected.

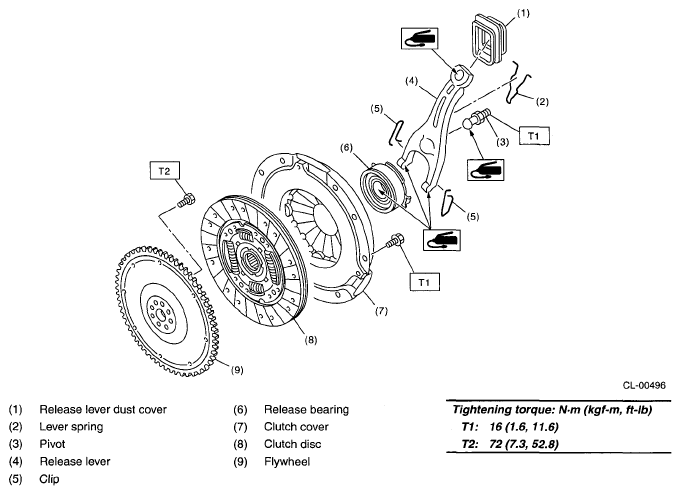

Fig 1: Clutch Assembly Replacement Components (Non-Turbo Model) With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
