Pipe Assembly: Removal

Disconnect the ground cable from battery.
Lift-up the vehicle, and then remove the jack-up plate.

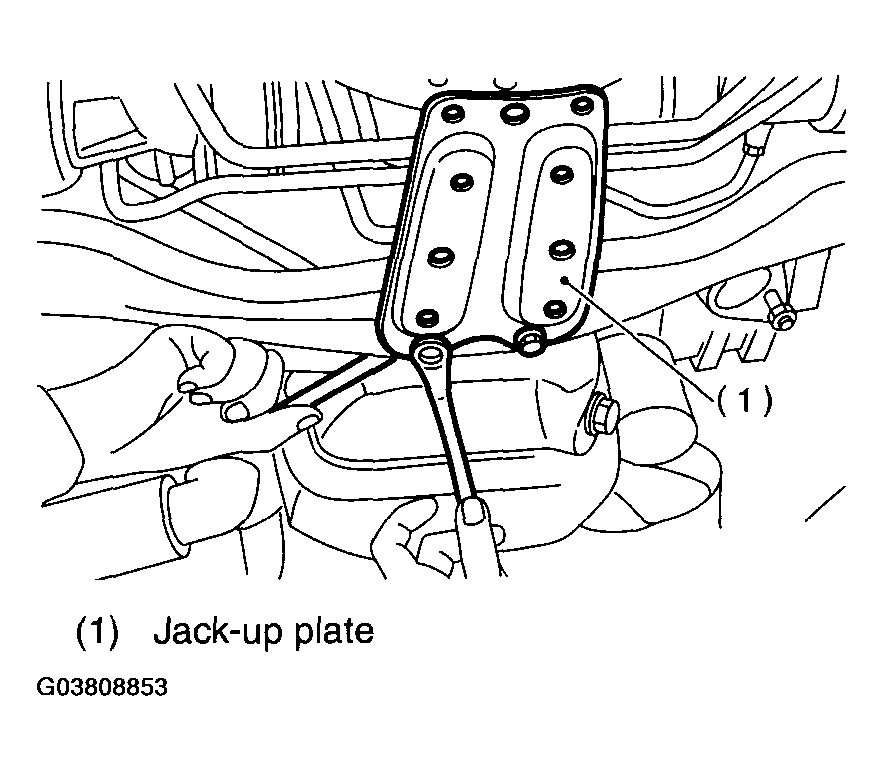

Fig 1: Removing Jack Up Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove the one pipe joint at the center of gearbox assembly, and then connect the vinyl hose to pipe and joint. Discharge fluid by turning steering wheel fully clockwise and counterclockwise. Discharge fluid similarly from the other pipe.

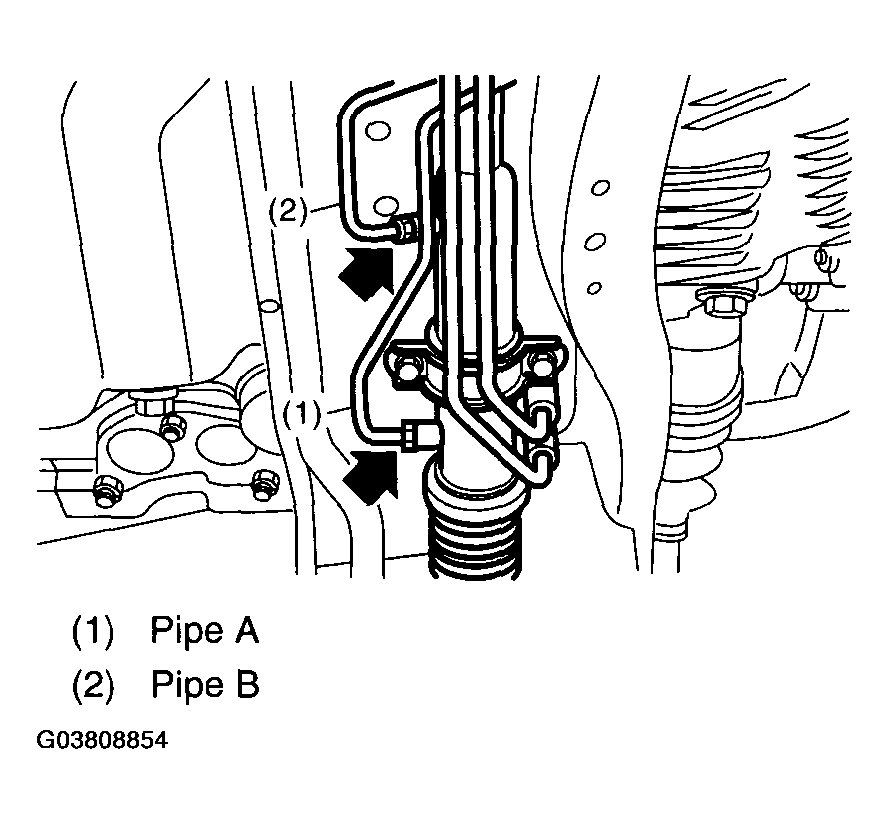

Fig 2: Identifying Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp E from pipes C and D.

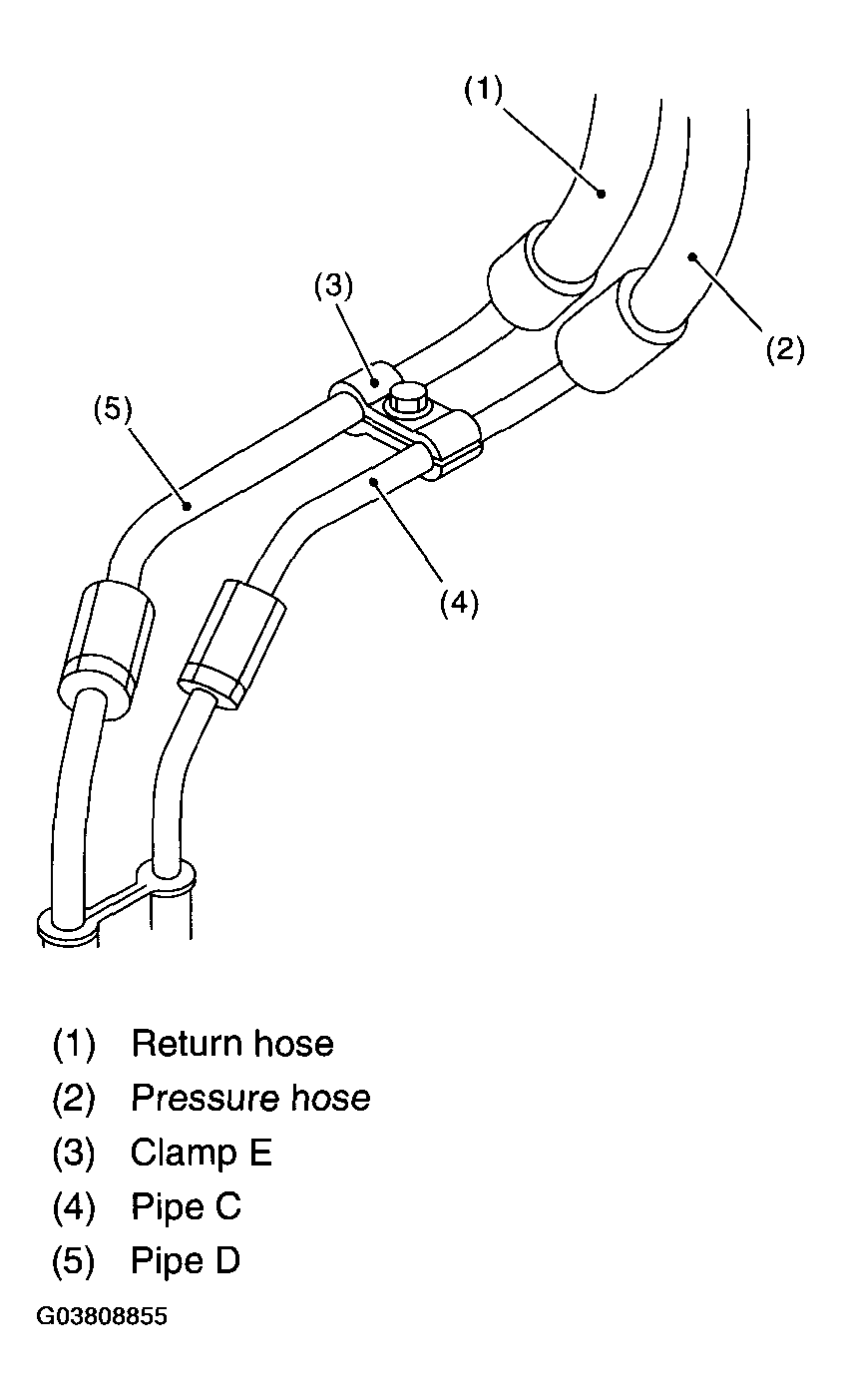

Fig 3: Identifying Clamp
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the pipe C and D from gearbox.

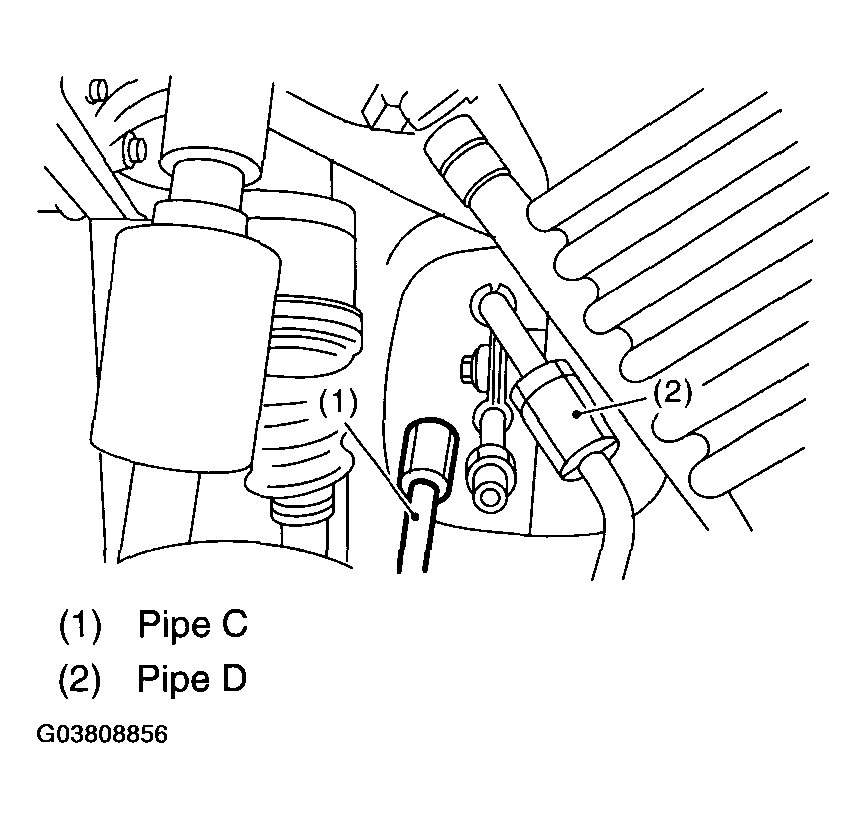

Fig 4: Identifying Pipe C And D From Gearbox
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct. < Ref. to REMOVAL , Air Intake Duct. >
Remove the bolt A.
Disconnect the pipe C from oil pump. Disconnect the pipe D from return hose.
CAUTION:
- Do not allow fluid from the hose end to come into contact with pulley belt.
- To prevent foreign matter from entering the hose and pipe, cover the open ends of them with a clean cloth.

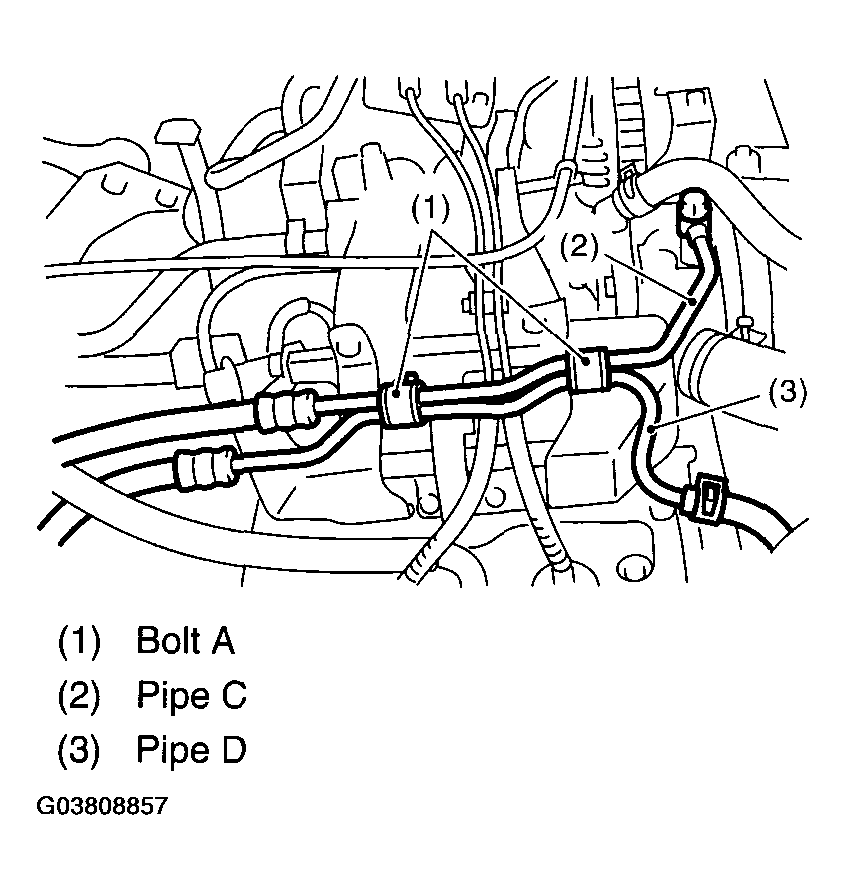

  Fig 5: Identifying Bolt
  Courtesy of SUBARU OF AMERICA, INC.
