VDC Control Module & Hydraulic Control Unit (VDCCM&H/U)

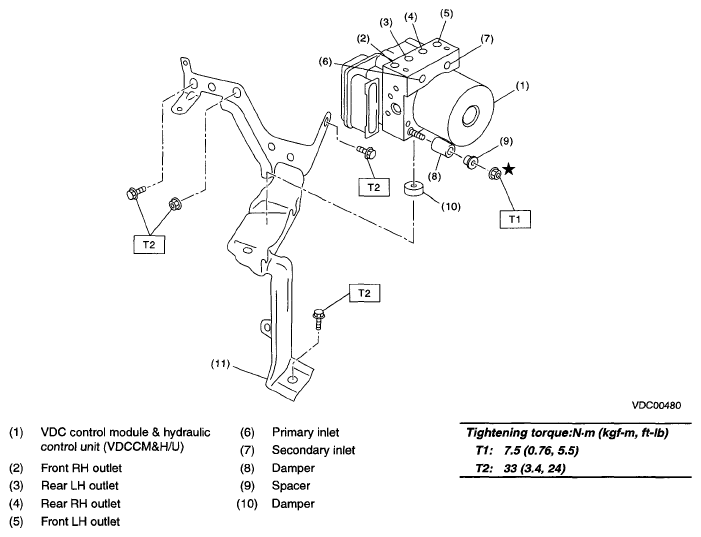

Fig 1: VDC Control Module & Hydraulic Control Unit Components (VDCCM&H/U) With Torque Specifications
G05343416Courtesy of SUBARU OF AMERICA, INC.
