Fog Light Aiming
WARNING: This page is about a different car, the 2007 Subaru Outback and 2007 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Before checking the fog light beam level, be sure of the following:
- The area around the fog light has not sustained any accident, damage or other type of deformation.
- Vehicle is parked on a level surface.
- The inflation pressure of tires is correct.
- Vehicle's fuel tank is fully filled.
- Bounce the vehicle several times to normalize the suspension.
- Make certain that someone is seated in the driver's seat.
- Adjust the fog light pattern by inserting a Philips screwdriver to the aiming screw hole.NOTE: Perform the adjustment after removing the front fog light cover.
- Except for OUTBACK model
- OUTBACK model

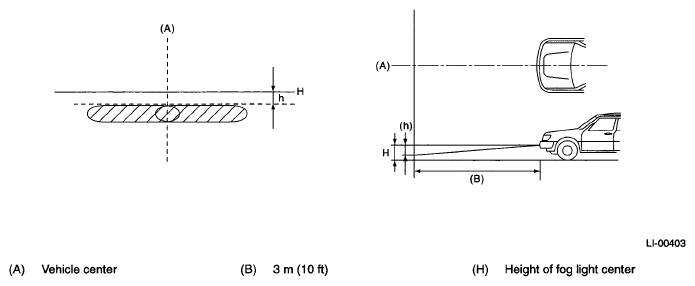

FOG LIGHT REFERENCE CHART
| h mm (in) at 3 m (10 ft) |
| 40 (1.58) |
