Electrical Specification
WARNING: This page is about a different car, the 2007 Subaru Outback and 2007 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

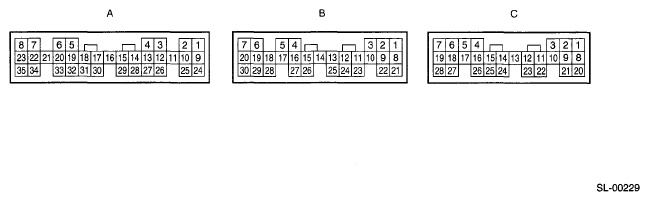

BODY INTEGRATED UNIT CONNECTOR TERMINALS REFERENCE
| Remarks | Terminal No. | Measuring condition |
|---|---|---|
| Ignition switch | A1 (INPUT) | Battery voltage is present when ignition switch is turned to ON. |
| Door key cylinder switch | A3 | 0 V is present when door key cylinder is moved to the LOCK side. |
| Keyless entry control module | A9 (INPUT) | Communication line (Cannot be measured because of digital signal) |
| Door key cylinder switch | A12 | 0 V is present when door key cylinder is moved to UNLOCK side. |
| Trunk lid switch or rear gate latch switch | A17 (INPUT) | 0 V is present when opening the trunk lid or rear gate. |
| Rear door switch RH | A18 (INPUT) | 0 V is present when opening the rear door RH. |
| Front door switch LH | A19 (INPUT) | 0 V is present when opening the front door LH. |
| Rear door switch LH | A31 (INPUT) | 0 V is present when opening the rear door LH. |
| Front door switch RH | A32 (INPUT) | 0 V is present when opening the front door RH. |
| Security indicator light | A33 (INPUT) | Battery voltage is present when the alarm operation is activated. |
| Horn relay | B11 (OUTPUT) | Battery voltage is present when the alarm operation is activated. |
| Turn signal & hazard circuit | B12 (OUTPUT) | Battery voltage is present when the alarm operation is activated. |
| Ground | B22 | 0 V is constantly present. |
| Power supply | C2 | Battery voltage is constantly present. |
| Impact sensor | C5 | When not applying vibration to the impact sensor, it repeats displaying the 0 V and battery voltage in every 45 milliseconds. |
| Ground | C8 | 0 V is constantly present. |
| Ground | C9 | 0 V is constantly present. |
