Front Hub Unit Bearing: Assembly
WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

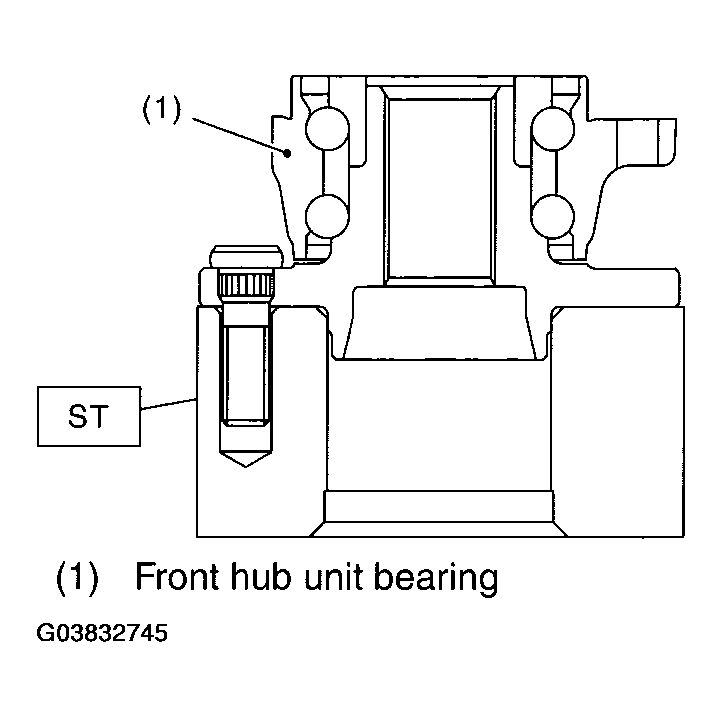

- Attach the hub to ST securely.
ST 927080000 HUB STAND
Courtesy of SUBARU OF AMERICA, INC.
- Using a press, press new hub bolts until their seating surfaces contact the hub.
NOTE:
Use 12 mm (0.47 in) dia. holes in HUB STAND to prevent bolts from tilting.
