Front Hub Unit Bearing: Installation
WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

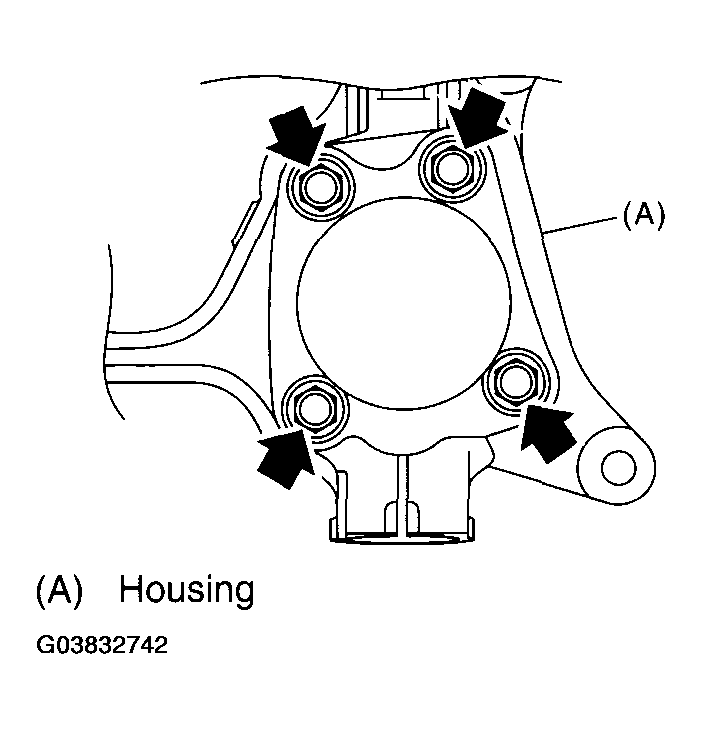

- Place the disc cover between housing and front hub unit, and tighten the four bolts.
Tightening torque: 65 N.m (6.6 kgf-m, 47.9 ft-lb)
- Install the front drive shaft. < Ref. to , INSTALLATION , Front Drive Shaft. >
- Tighten the axle nut temporarily.
- Install the disc rotor on hub.
- Install the disc brake caliper on the housing.
Tightening torque: 78 N.m (8.0 kgf-m, 57.9 ft-lb)

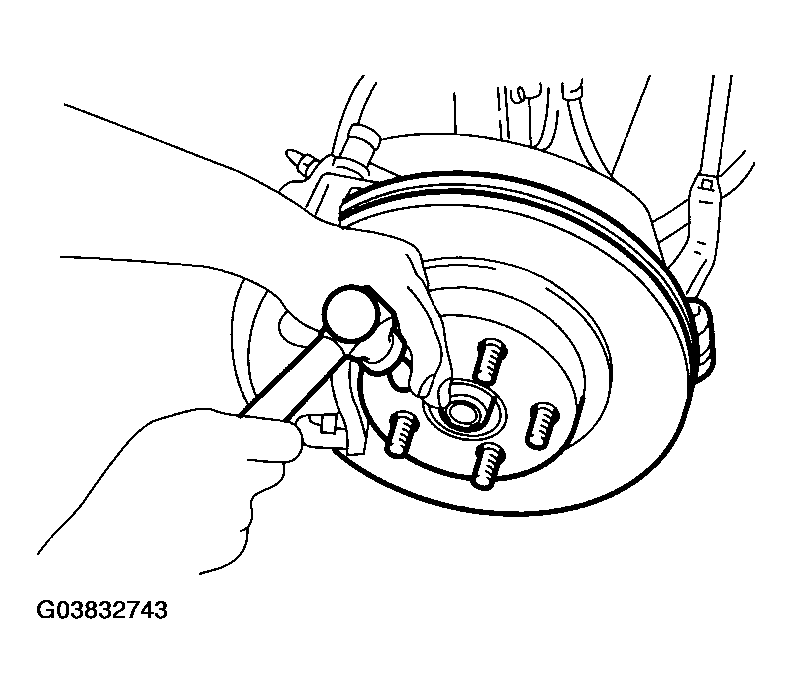

- While depressing the brake pedal, tighten a new axle nut (olive color) to specified torque and lock it securely.
Tightening torque: 220 N.m (22.4 kgf-m, 162 ft-lb)
CAUTION:- Install the wheel after installation of the axle nut. Failure to follow this rule may damage the wheel bearing.
- Be sure to tighten the axle nut to specified torque. Do not overtighten it as this may damage wheel bearing.
- After tightening the axle nut, lock it securely.
- Install the wheel and tighten the wheel nuts to specified torque.
Tightening torque: 90 N.m (9.2 kgf-m, 66 ft-lb)
