Front Drive Shaft Assembly

WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

FRONT DRIVE SHAFT ASSEMBLY SPECIFICATIONS

Model	Type of drive shaft	Axle diameter D mm (in)	Axle length L mm (in)
Apply all	EBJ87+PTJ82	26(1.0)	349.6(13.76)

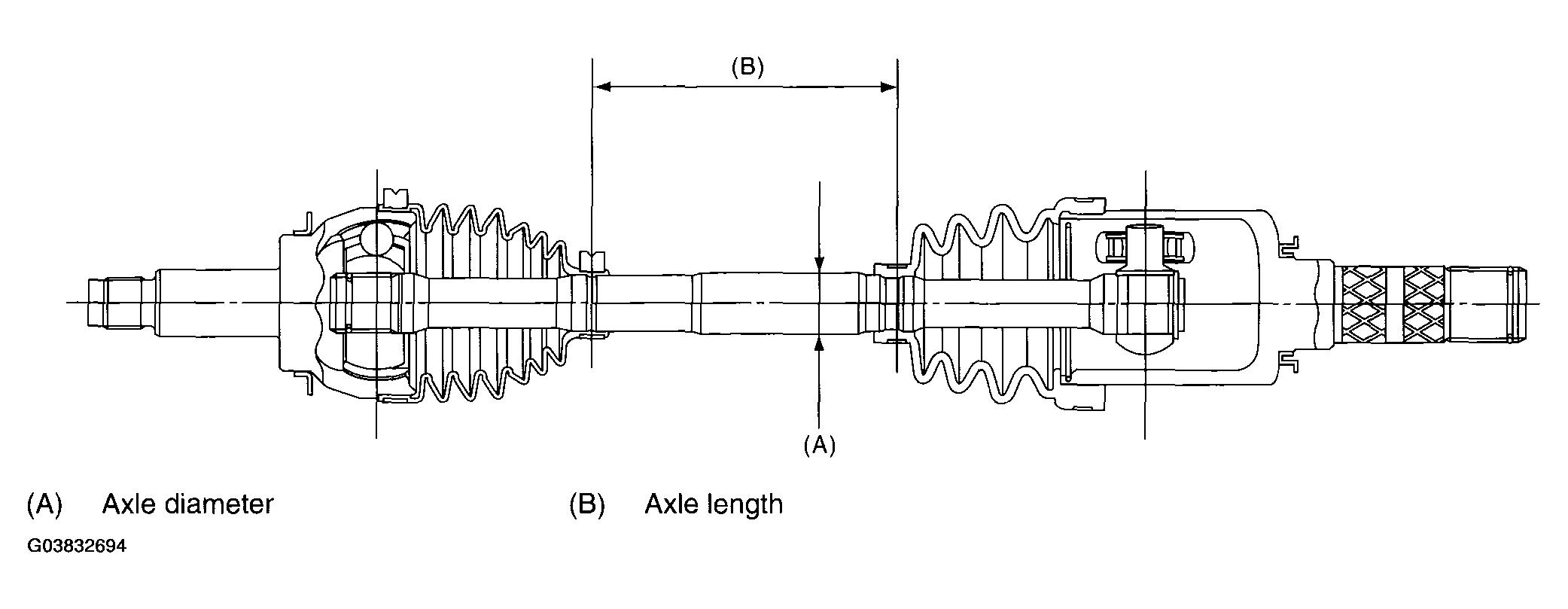

Fig 1: Identifying Front Drive Shaft Assembly

Courtesy of SUBARU OF AMERICA, INC.
