Propeller Shaft: Installation

WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Insert the sleeve yoke into the transmission and attach center bearing to body.
Tightening torque: 52 N.m (5.3 kgf-m, 38.3 ft-lb)

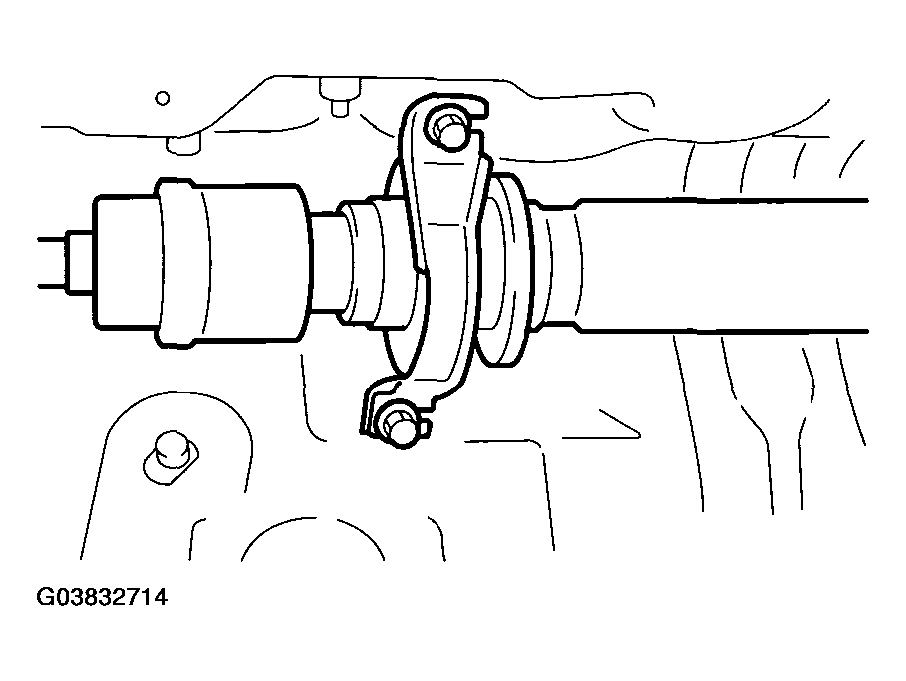

Fig 1: Inserting Sleeve Yoke Into Transmission And Attaching Center Bearing To Body
Courtesy of SUBARU OF AMERICA, INC.
Align the matching marks and connect the flange yoke and rear differential.
Tightening torque: 31 N.m (3.2kgf-m, 23.1 ft-lb)

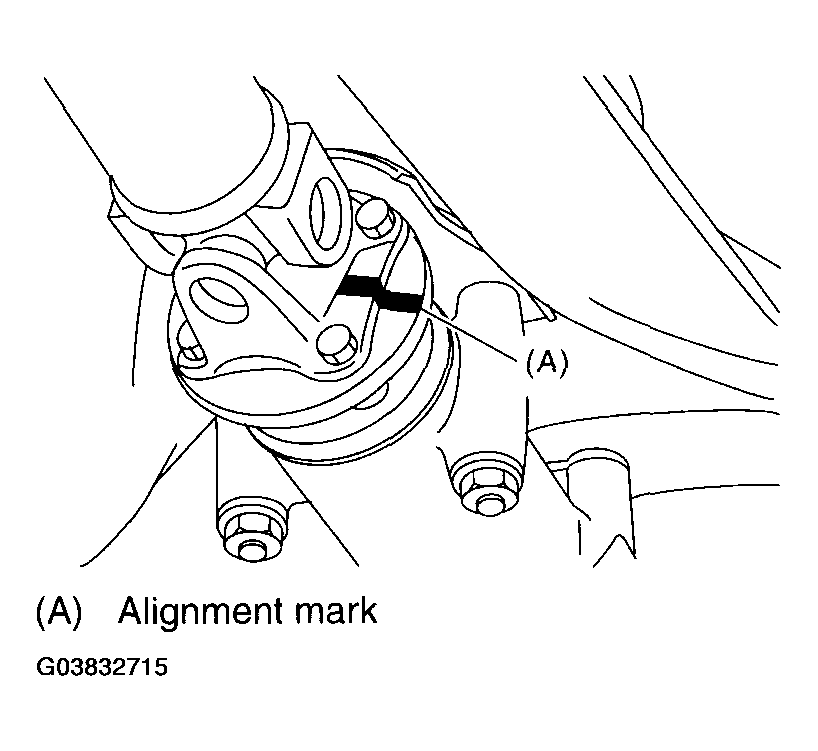

Fig 2: Matching Marks And Connecting Flange Yoke And Rear Differential
Courtesy of SUBARU OF AMERICA, INC.
Install the heat shield cover.
Install the center exhaust pipe.
Install the rear exhaust pipe and muffler.
Lower the vehicle.
Connect the battery ground cable to battery.
