Flow control: Notes
The variable capacity pump changes its delivery rate per rotation by changing the degree of eccentricity of the cam ring according to its rotating speed (engine speed).
NOTE:

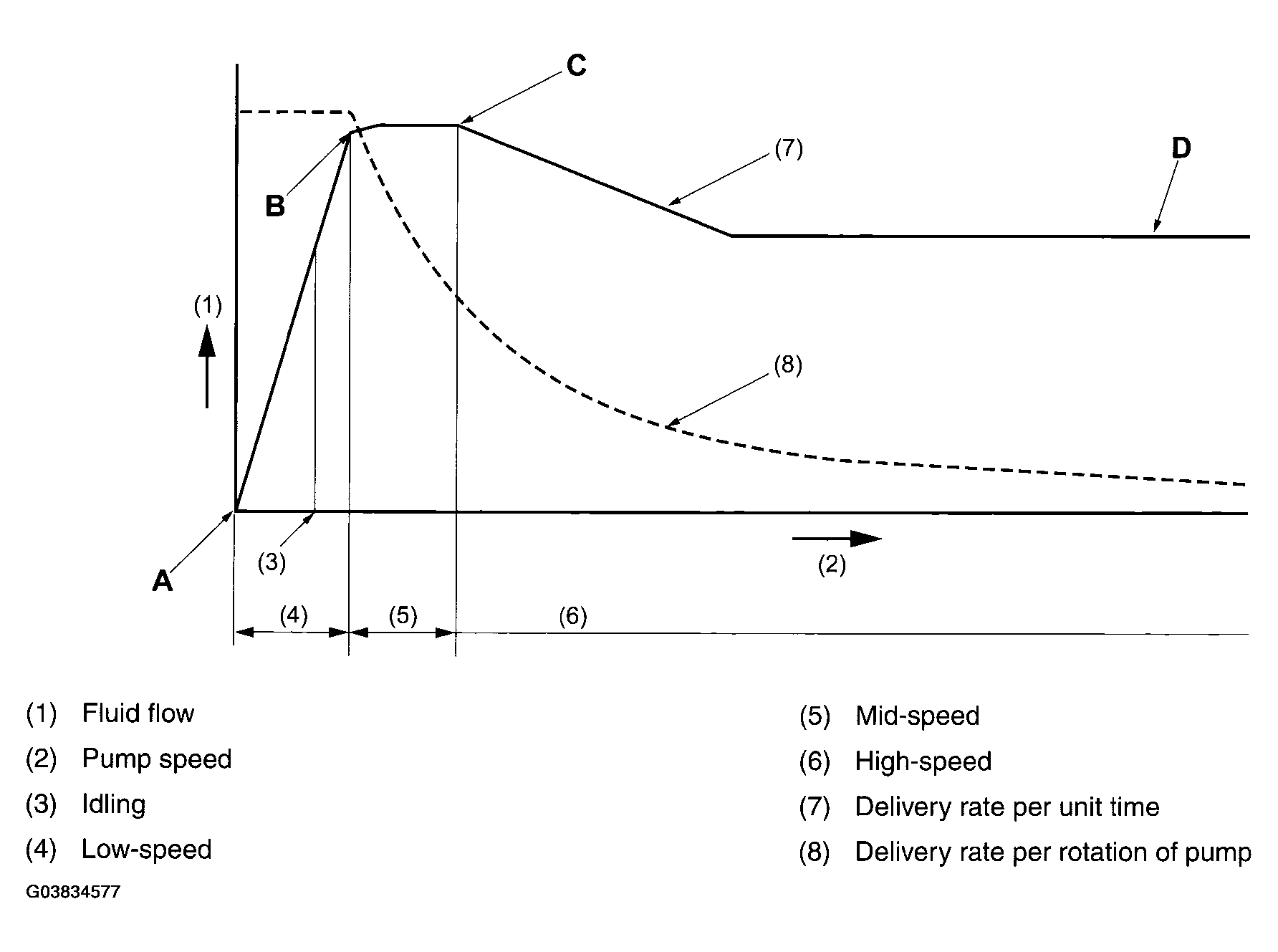

In the following description, pump speed ranges will be indicated using the speed points A through D shown in the drawing above.
