Cruise Control: Schematic

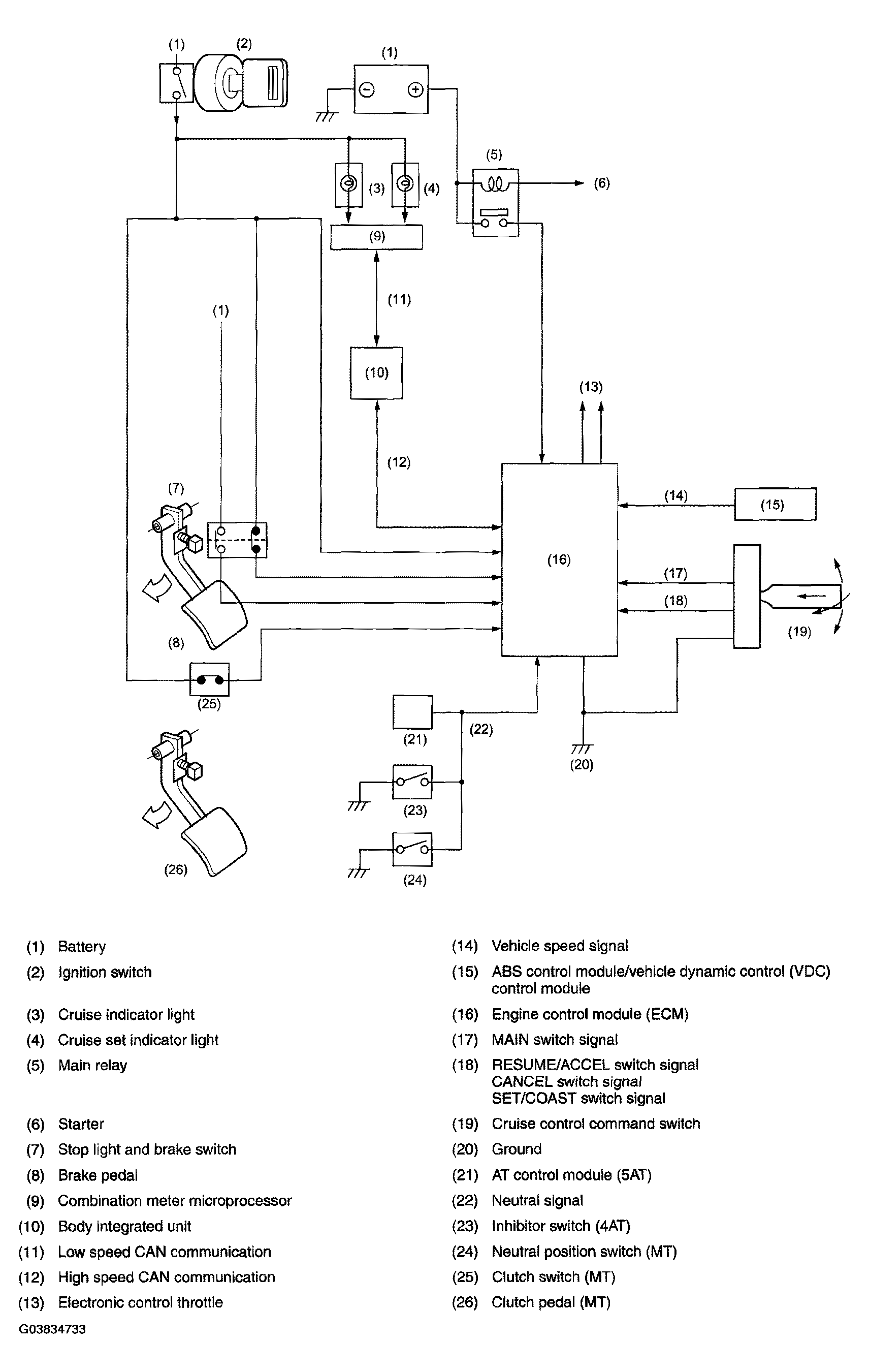

Fig 1: Schematic Diagram - Cruise Control System
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
