Propeller Shaft

To reduce noise, constant velocity joints are used on the propeller shafts. The center joint is a compact and small EDJ (High Efficiency Compact Double Offset Joint) type that can extend and retract in axial directions.

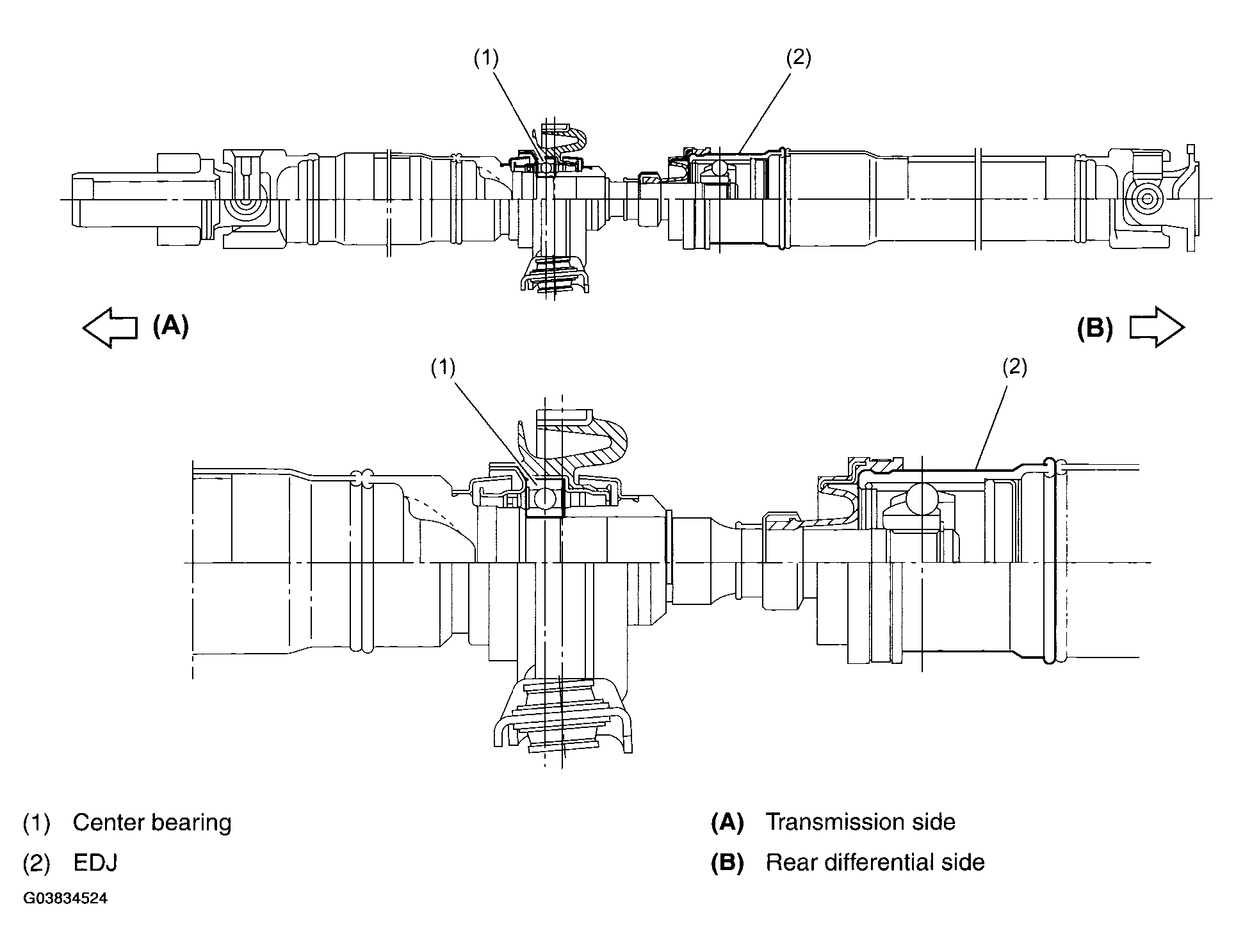

Fig 1: Cross Sectional View Of Propeller Shaft

Courtesy of SUBARU OF AMERICA, INC.
