Components With Torque Specifications: Generator

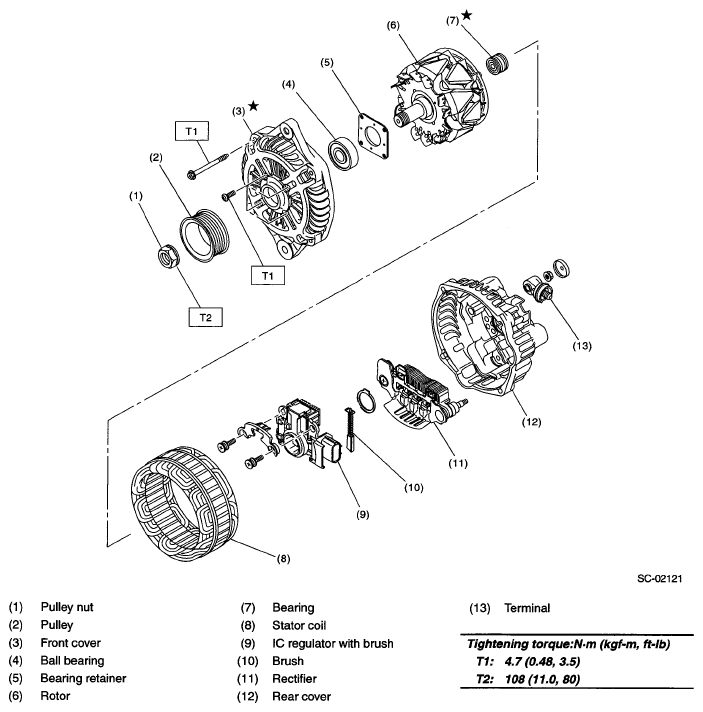

Fig 1: Generator Replacement Components With Torque Specifications
G05339701Courtesy of SUBARU OF AMERICA, INC.
