Adjustment
WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
When adjusting the toe-in, adjust it to the following value.
Toe-in:
0+/-2 mm (0+/-0.08 in)
- Check that the left and right wheel steering angle is within specifications.

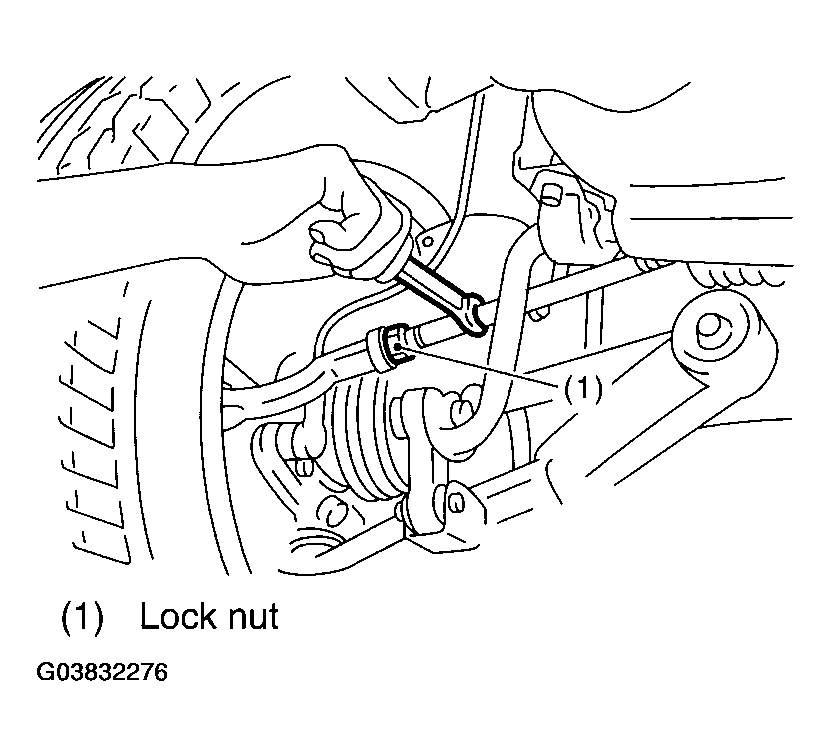

- Loosen the left and right side steering tie-rod lock nuts.
- Turn the left and right tie rods equal amounts until the toe-in is at the specification.
Both the left and right tie-rods are right-hand threaded. To increase toe-in, turn both tie-rods clockwise by equal amount (viewing from the inside of vehicle).
- Tighten the tie-rod lock nut.
Tightening torque:
85 N.m (8.7 kgf-m, 62.7 ft-lb)
NOTE:
Correct the tie rod boot if it is twisted.
