Intake Duct

WARNING: This page is about a different variant/trim than selected.

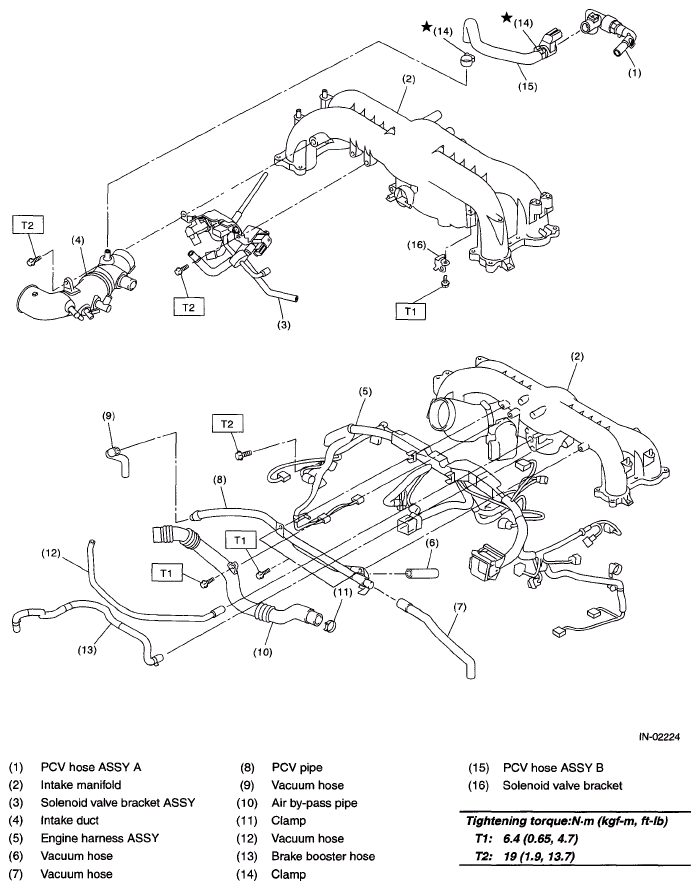

Fig 1: Intake Duct Replacement Components With Torque Specifications
G05340340Courtesy of SUBARU OF AMERICA, INC.
