Spark Plug: Service and Repair
Spark PlugSpark plug
Manufacturer and type NGKFR5AP-11
Thread size (diameter, pitch, length) mm 14, 1.25, 19
Spark plug gap mm (in. 1.0 - 1.1 (0.039 - 0.043)
Electrode Platinum
REMOVAL
1. RH SIDE

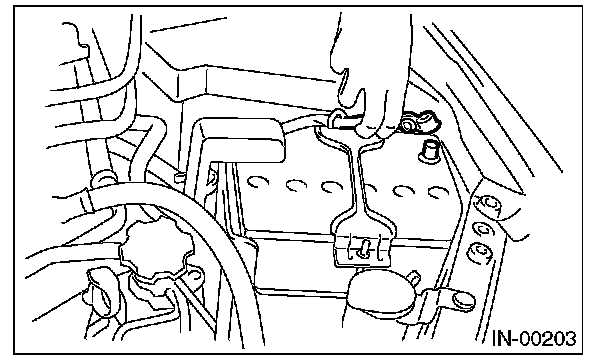

1. Disconnect the ground cable from the battery.
2. Remove the air cleaner case.

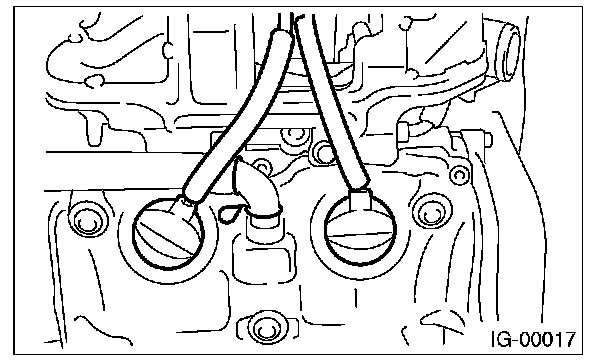

3. Remove the spark plug cords by pulling the boot. (Do not pull the cord itself).

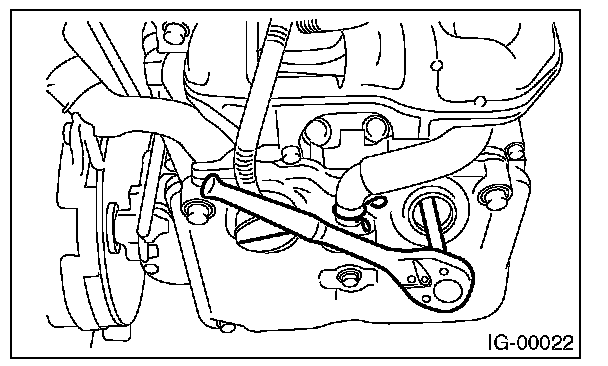

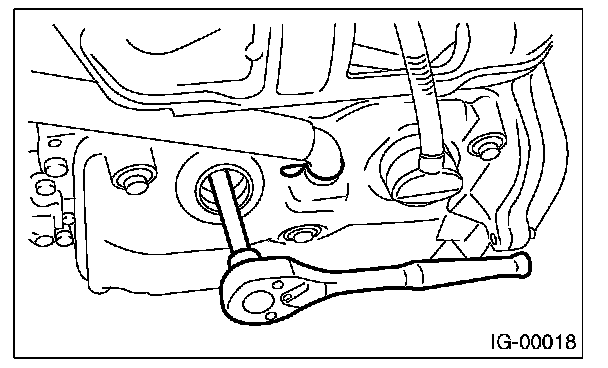

4. Remove the spark plug with a spark plug socket.
2. LH SIDE
1. Remove the battery.

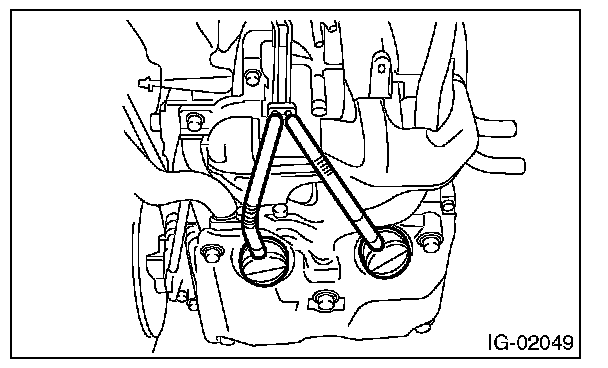

2. Remove the spark plug cords by pulling the boot. (Do not pull the cord itself).
3. Remove the spark plug with a spark plug socket.
INSTALLATION
1. RH SIDE
Install in the reverse order of removal.
Tightening torque: 21 N.m (2.1 kgf.m, 15.5 ft.lb.
2. LH SIDE
Install in the reverse order of removal.
Tightening torque: 21 N.m (2.1 kgf.m, 15.5 ft.lb.
