System Diagram

COMPONENT

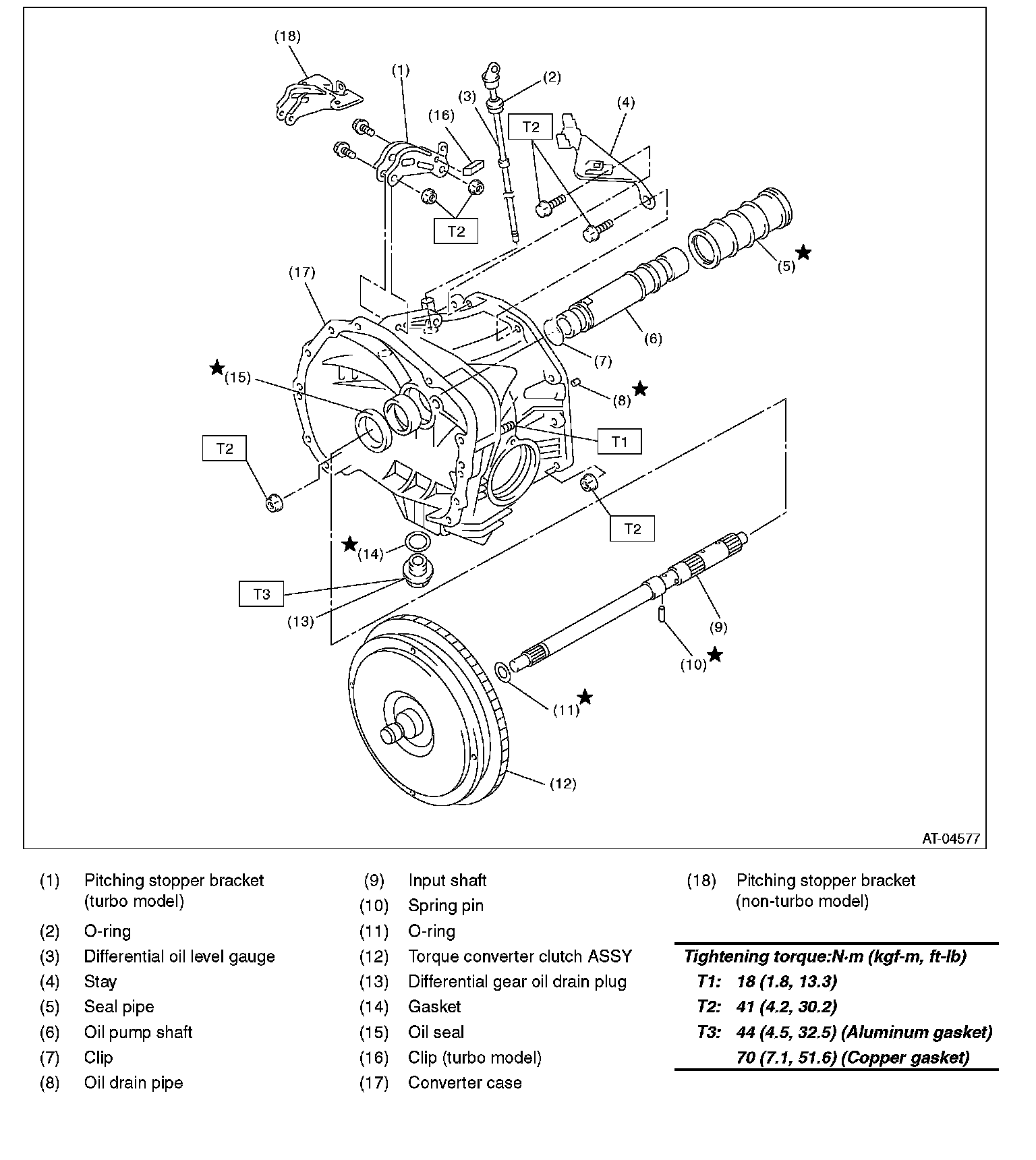

TORQUE CONVERTER AND CASE

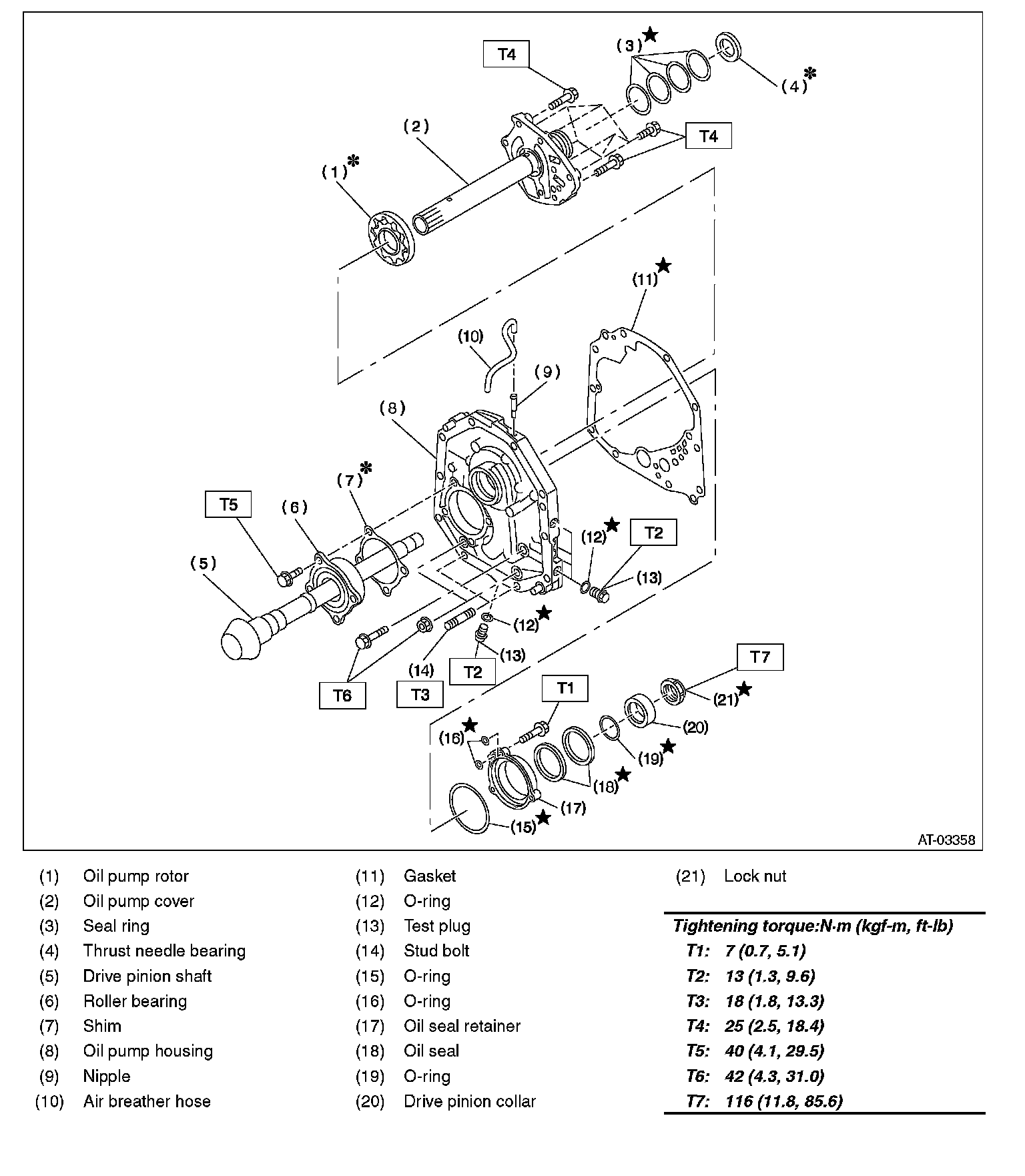

OIL PUMP

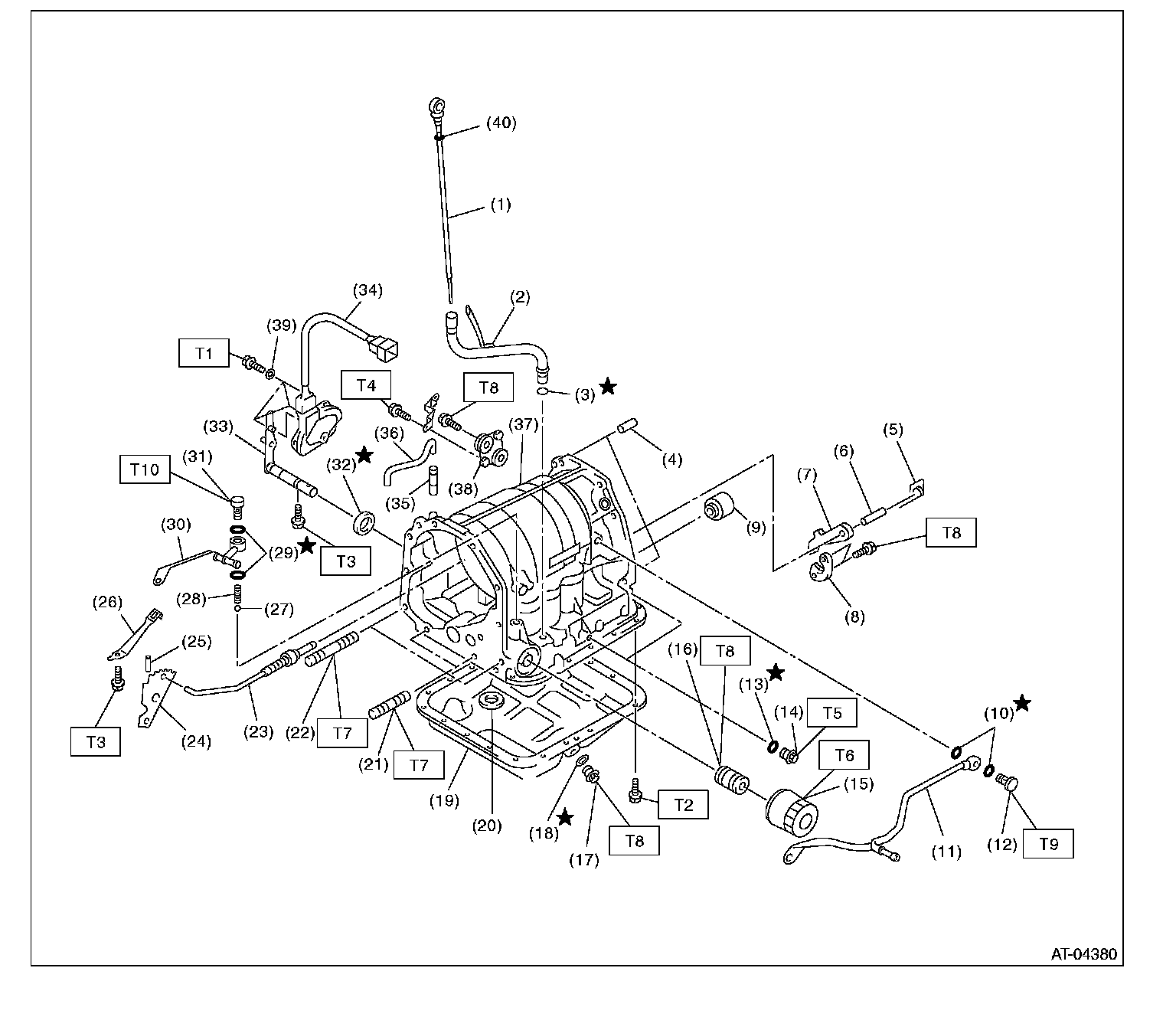

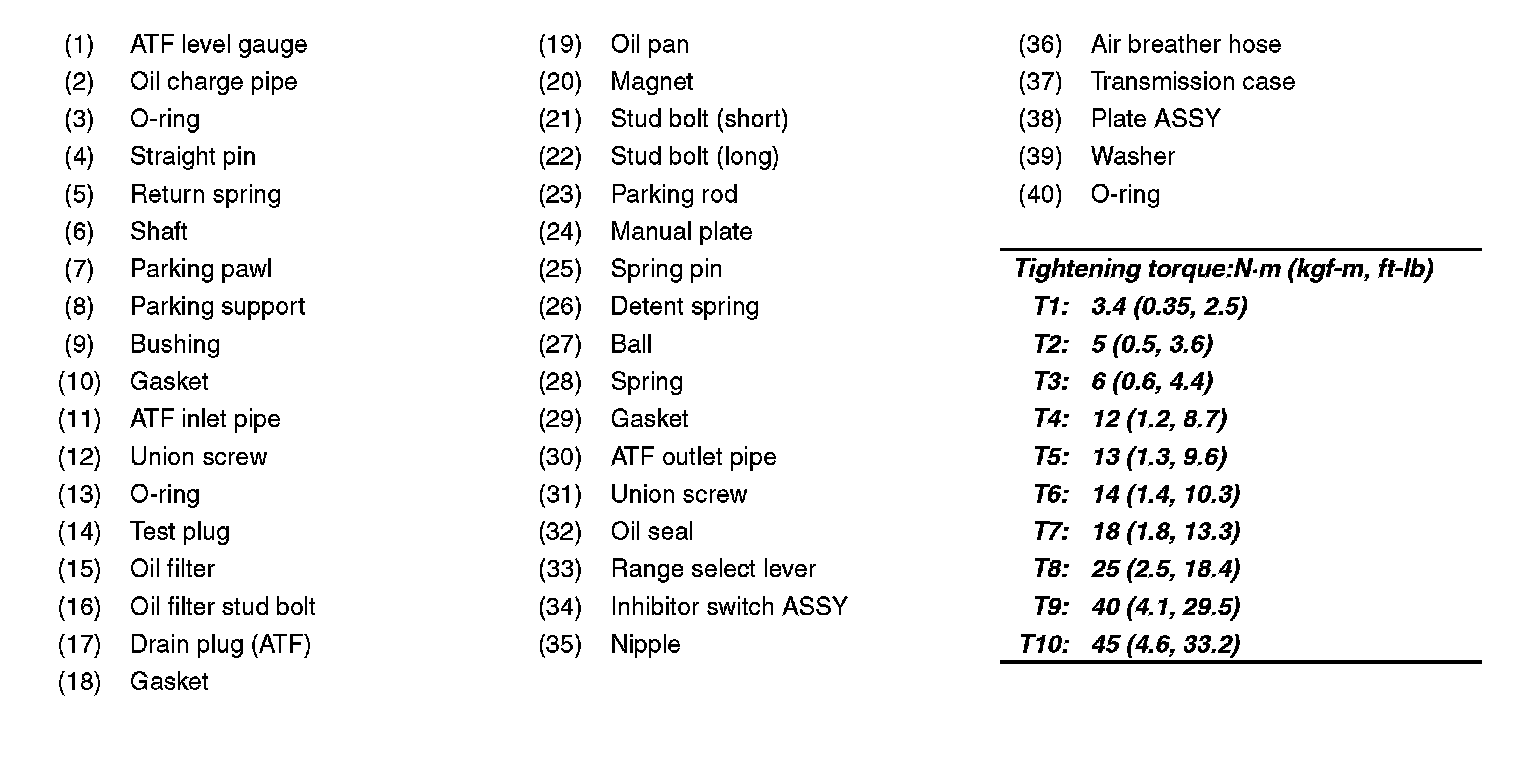

TRANSMISSION CASE AND CONTROL DEVICE

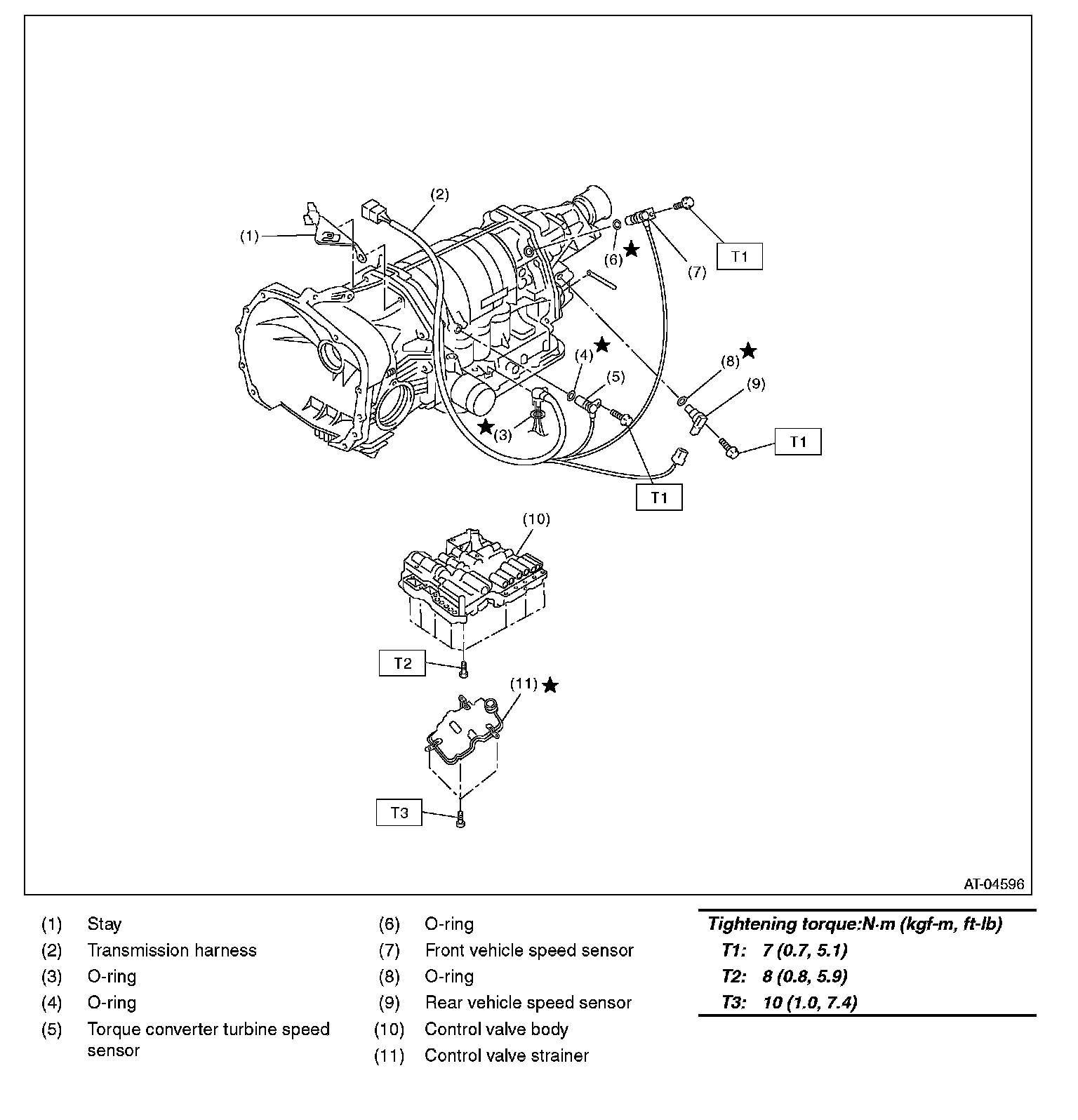

CONTROL VALVE AND HARNESS ROUTING

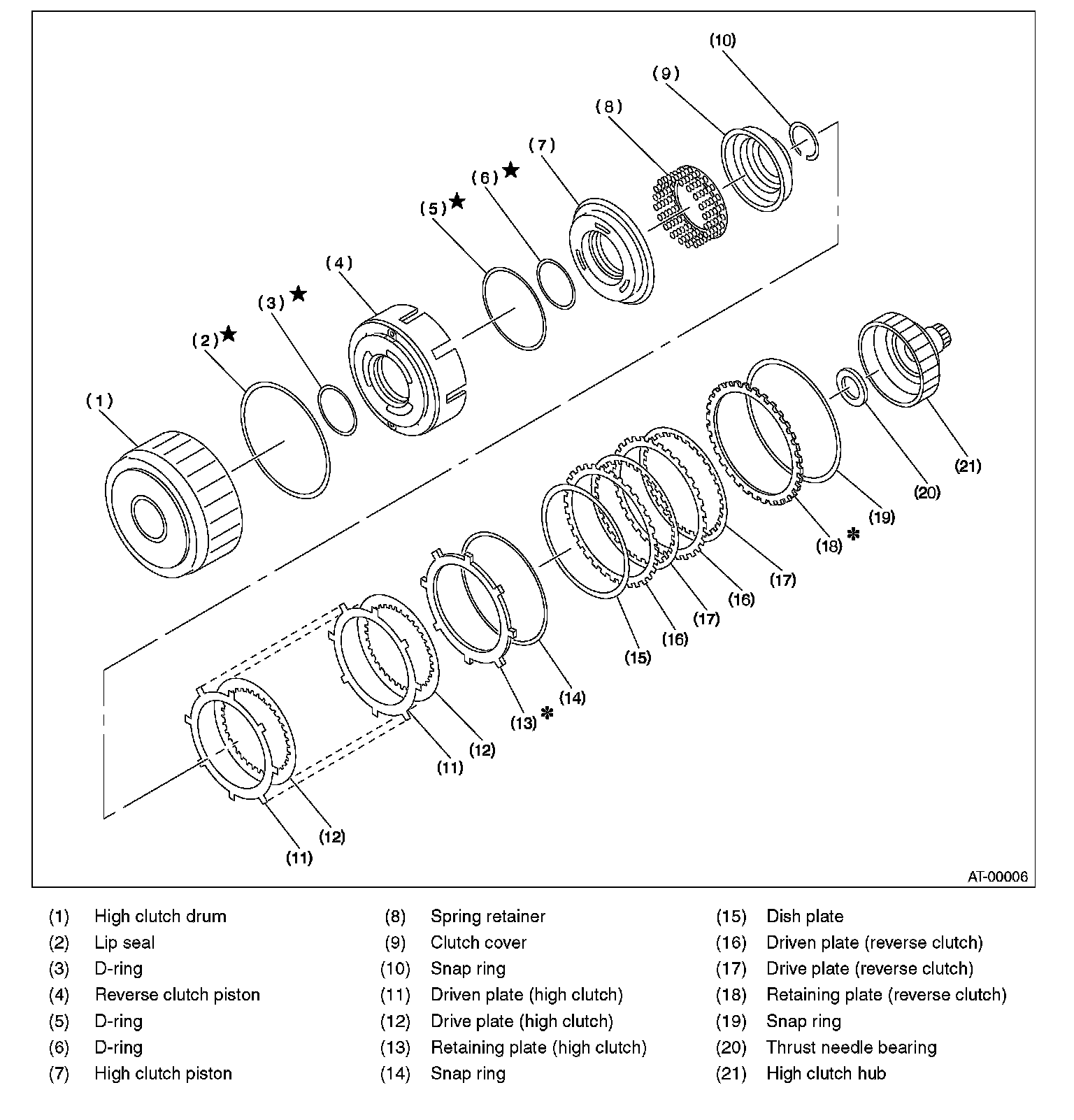

HIGH CLUTCH AND REVERSE CLUTCH

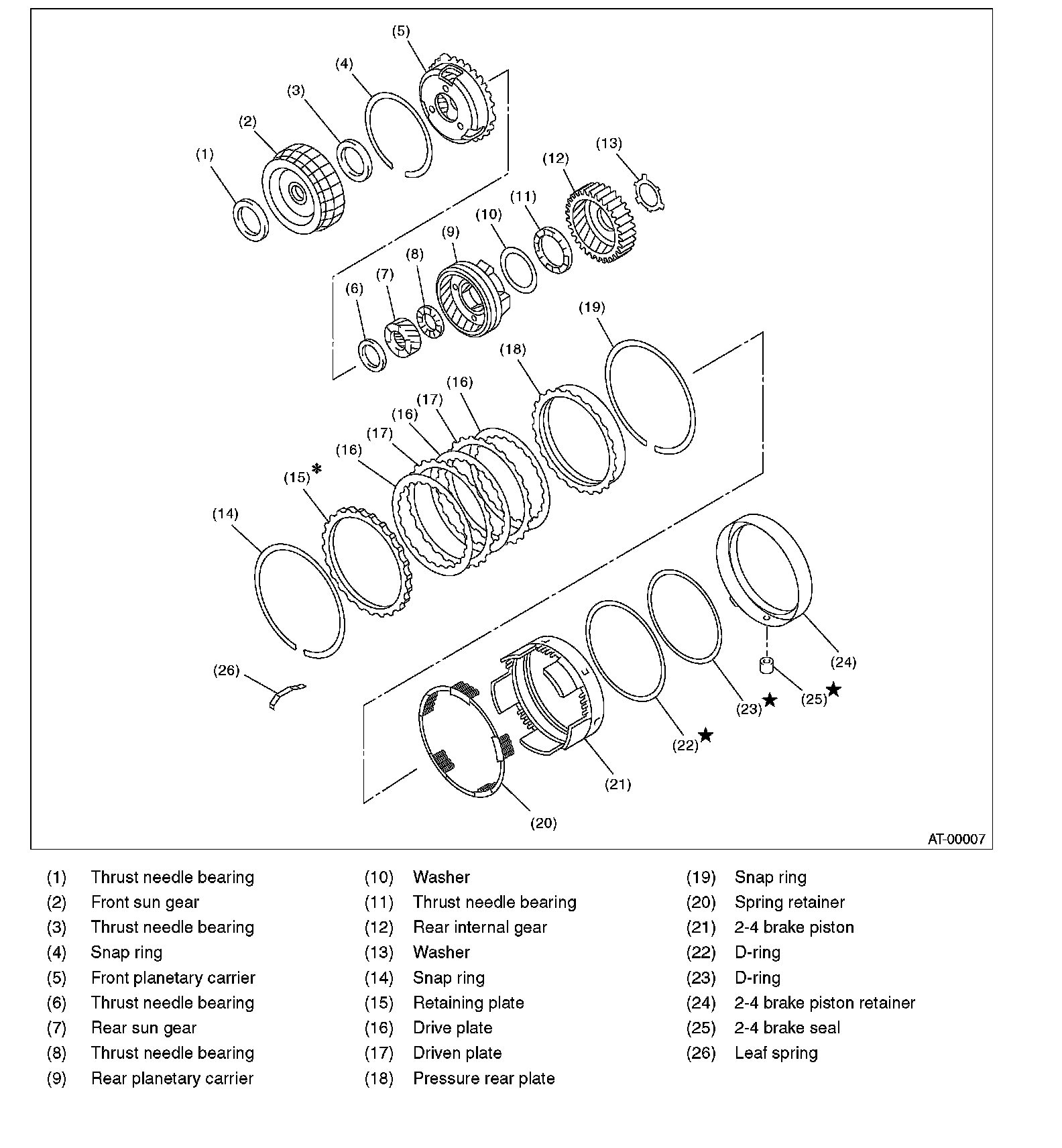

PLANETARY GEAR AND 2-4 BRAKE

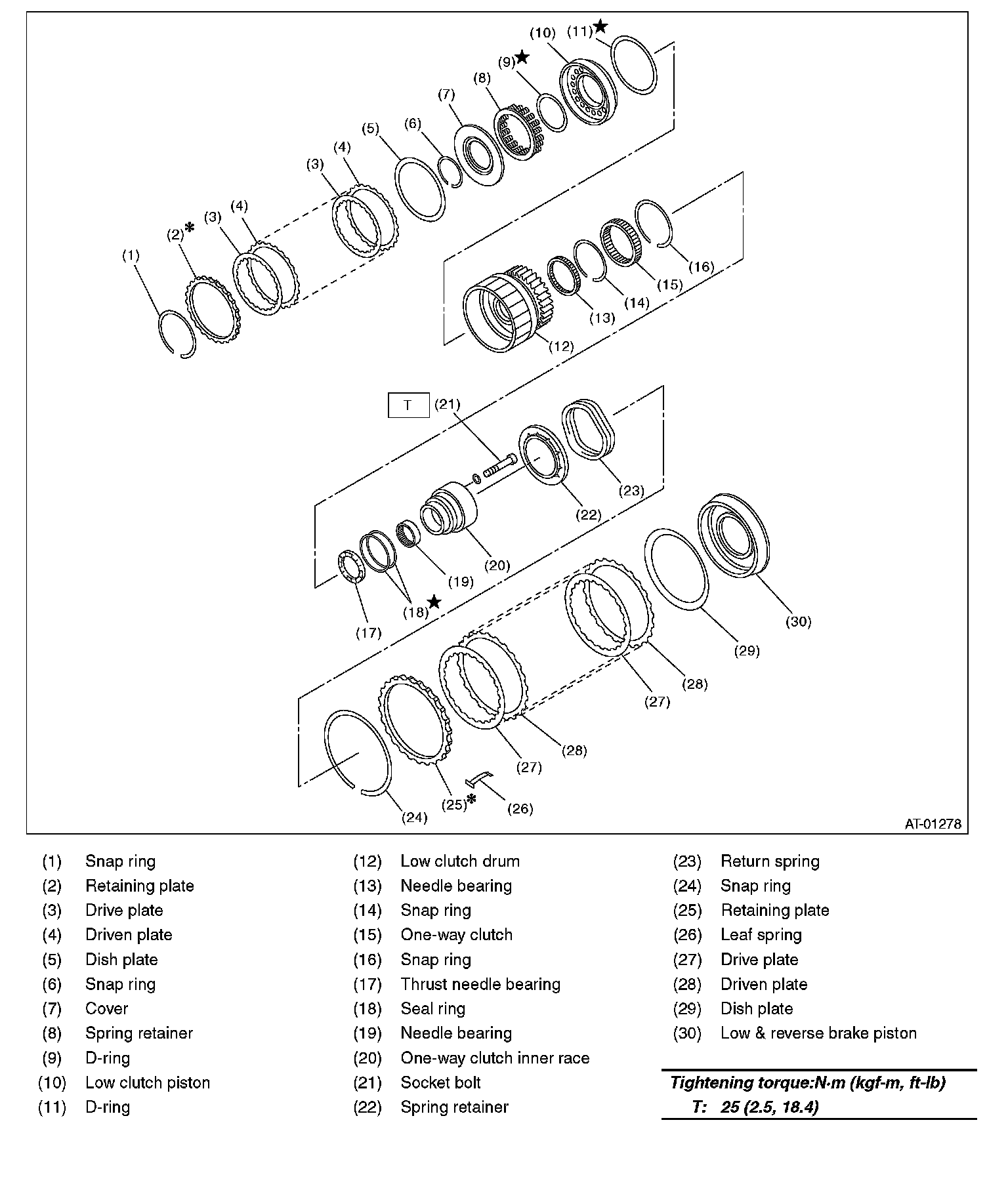

LOW CLUTCH AND LOW & REVERSE BREAK

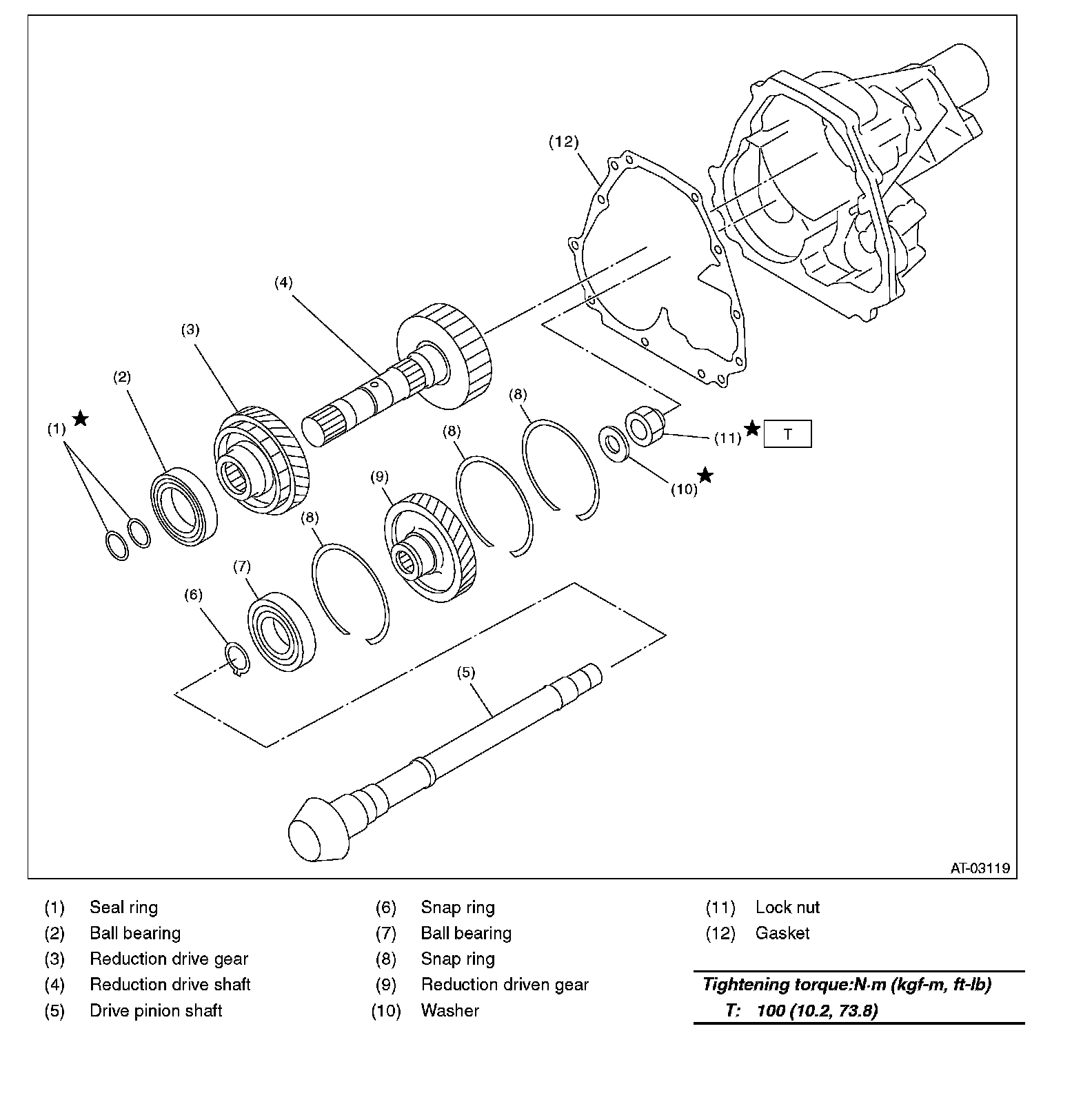

REDUCTION GEAR

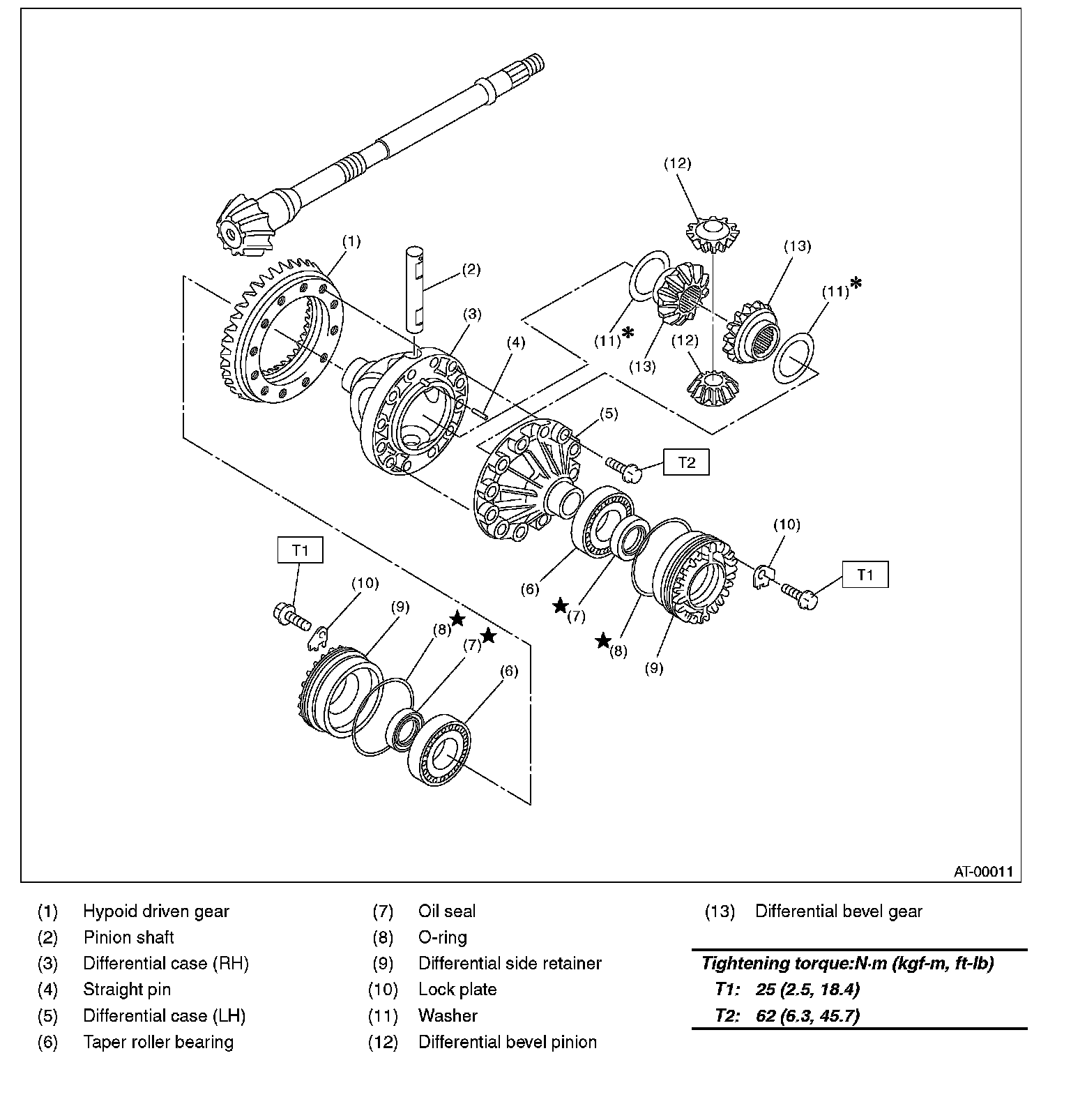

DIFFERENTIAL GEAR

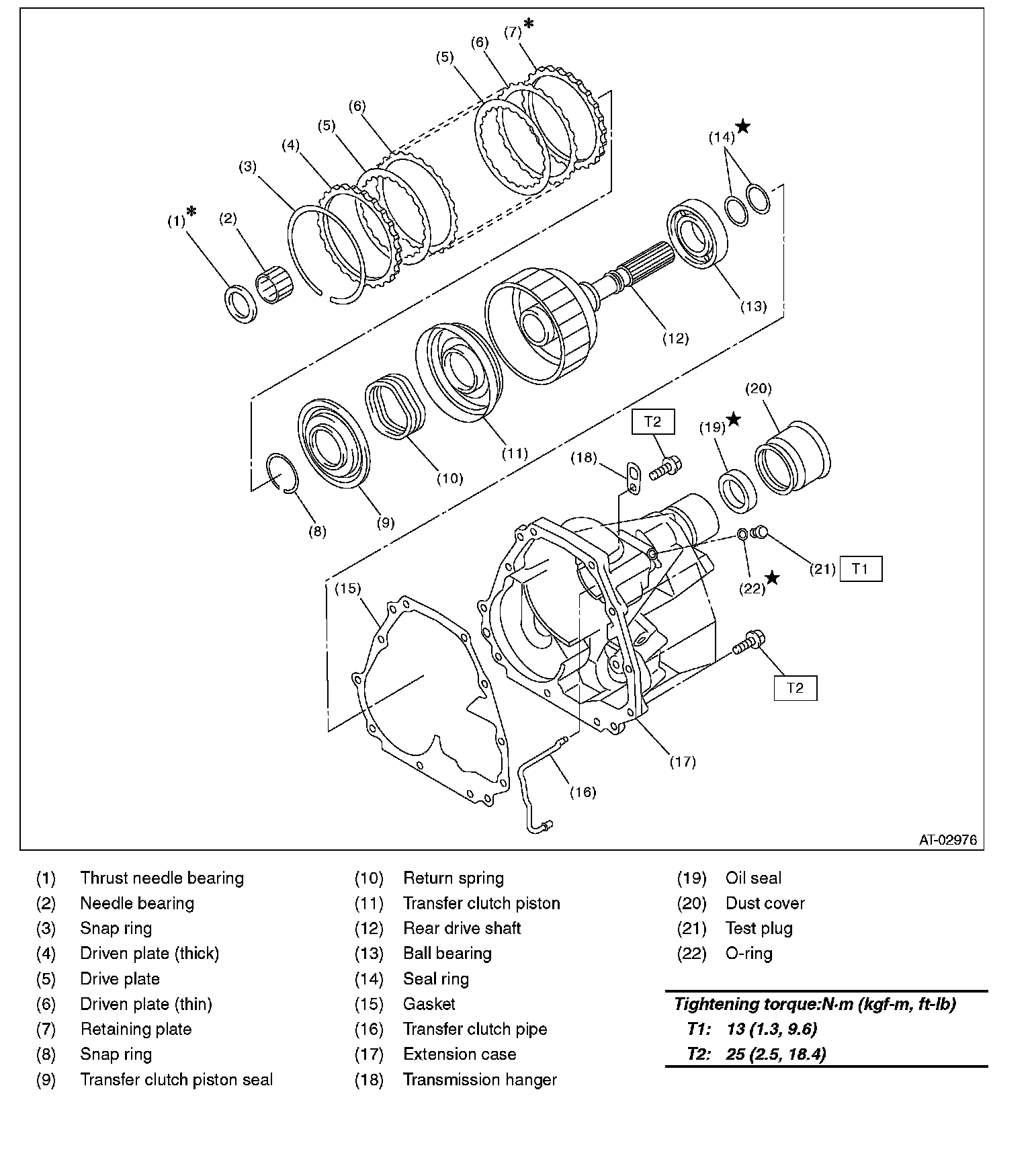

TRANSFER AND EXTENSION CASE
