Power Window Switch: Testing and Inspection
POWER WINDOW CONTROL SWITCHINSPECTION
1. MAIN SWITCH
1. Remove the main switch.

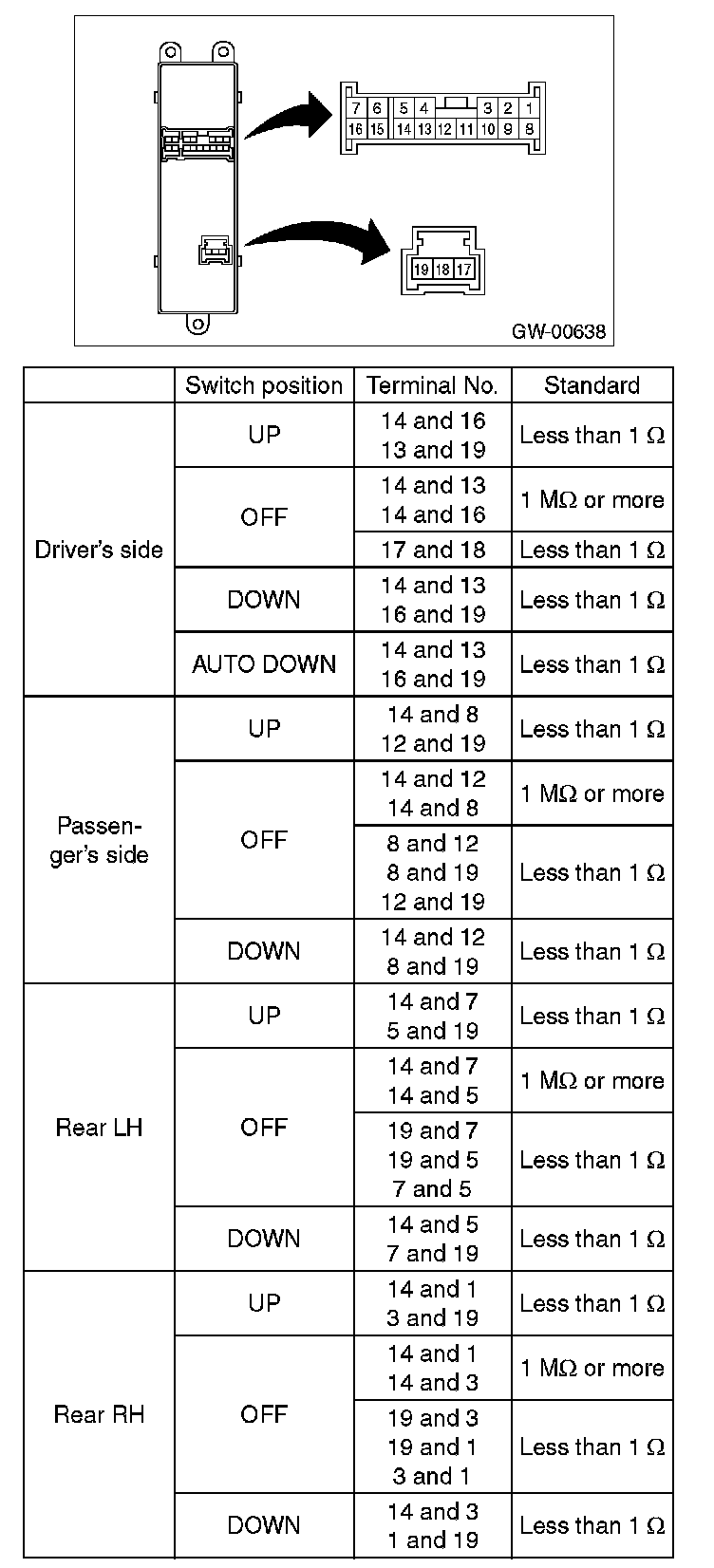

2. Measure the switch resistance.
2. SUB-SWITCH
1. Remove the sub-switch.
2. Measure the sub-switch resistance.
INSPECTION
1. MAIN SWITCH
1. Remove the main switch.
2. Measure the switch resistance.
2. SUB-SWITCH
1. Remove the sub-switch.
2. Measure the sub-switch resistance.
