Conditions For Abs Sequence Control

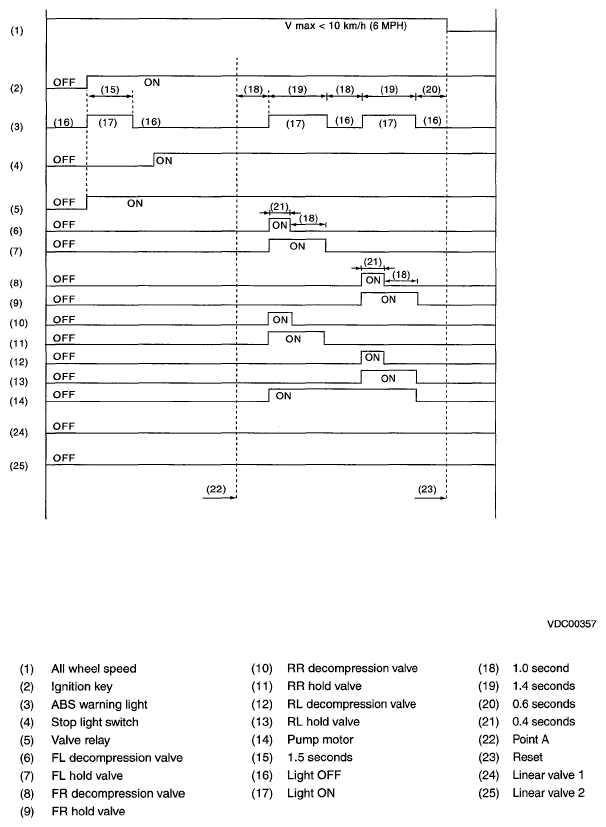

Fig 1: ABS Sequence Control Conditions Diagram
G05664704Courtesy of SUBARU OF AMERICA, INC.
NOTE: The control operation starts from point A.
