Oil Pump: Installation

Install the oil pump to the bracket.
Tightening torque:

15.7 N.m (1.6 kgf-m, 11.6 ft-lb)

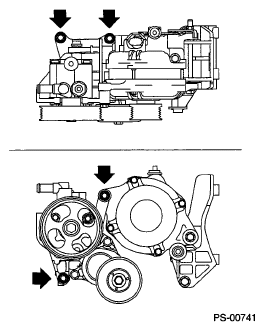

Fig 1: Locating Oil Pump Bracket Bolt
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

36.8 N.m (3.75 kgf-m, 27.1 ft-lb)

Fig 2: Locating Oil Pump Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the power steering pump bracket.
Tightening torque:

<Ref. to OIL PUMP , COMPONENT, General Description.>

Fig 3: Locating Power Steering Pump Bracket Bolt
Courtesy of SUBARU OF AMERICA, INC.
After installing the oil pump, fill the oil pump with fluid while rotating the pulley by hand and perform air bleeding from the oil pump.
CAUTION: Be sure to fill oil pump with fluid fully in order to prevent the oil pump from noise or seizure.
Connect the pressure hose and suction hose.
Tightening torque:

Eye bolt

40 N.m (4.08 kgf-m, 29.5 ft-lb)

CAUTION: Be careful not to twist hoses. Twisted hoses may contact other parts.

Fig 4: Identifying Pressure Hose And Suction Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the power steering oil pressure switch.
Install the tensioner adjuster.
Install the V belts.
Install the pulley belt cover.
Connect the ground cable to the battery.
Fill with specified power steering fluid. <Ref. to POWER STEERING FLUID .>
CAUTION: Never start the engine before feeding the fluid otherwise the vane pump might be seized.
