Conditions For VDC Sequence Control

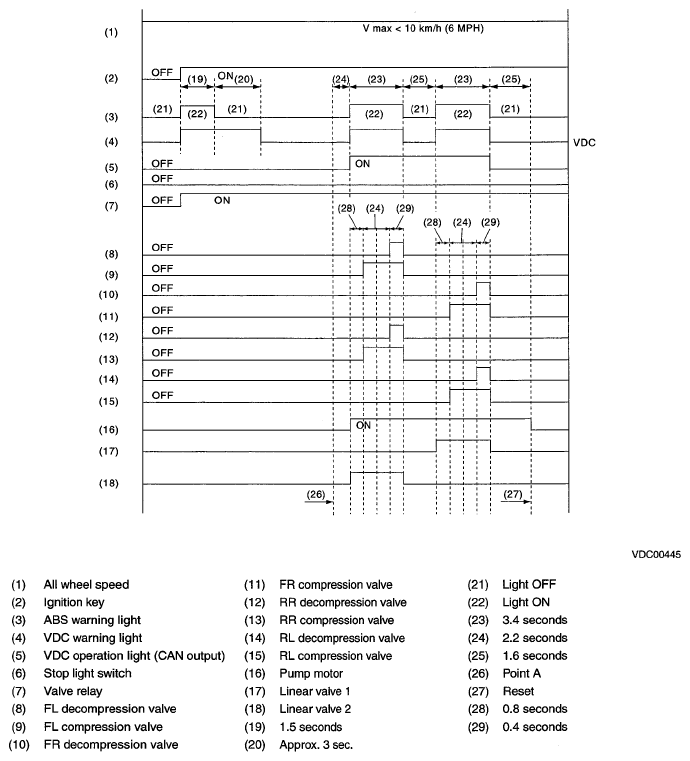

Fig 1: VDC Sequence Control Conditions Diagram
G05664705Courtesy of SUBARU OF AMERICA, INC.
NOTE: The control operation starts from point A.
