Transmission Mounting

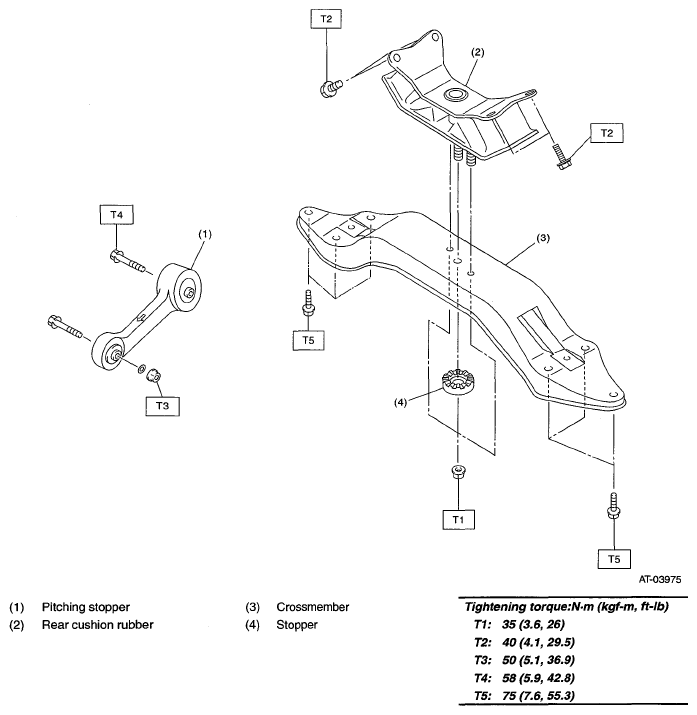

Fig 1: Transmission Mounting Component With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
