Control Module I/O Signal
Control Module I/O Signal
ELECTRICAL SPECIFICATION

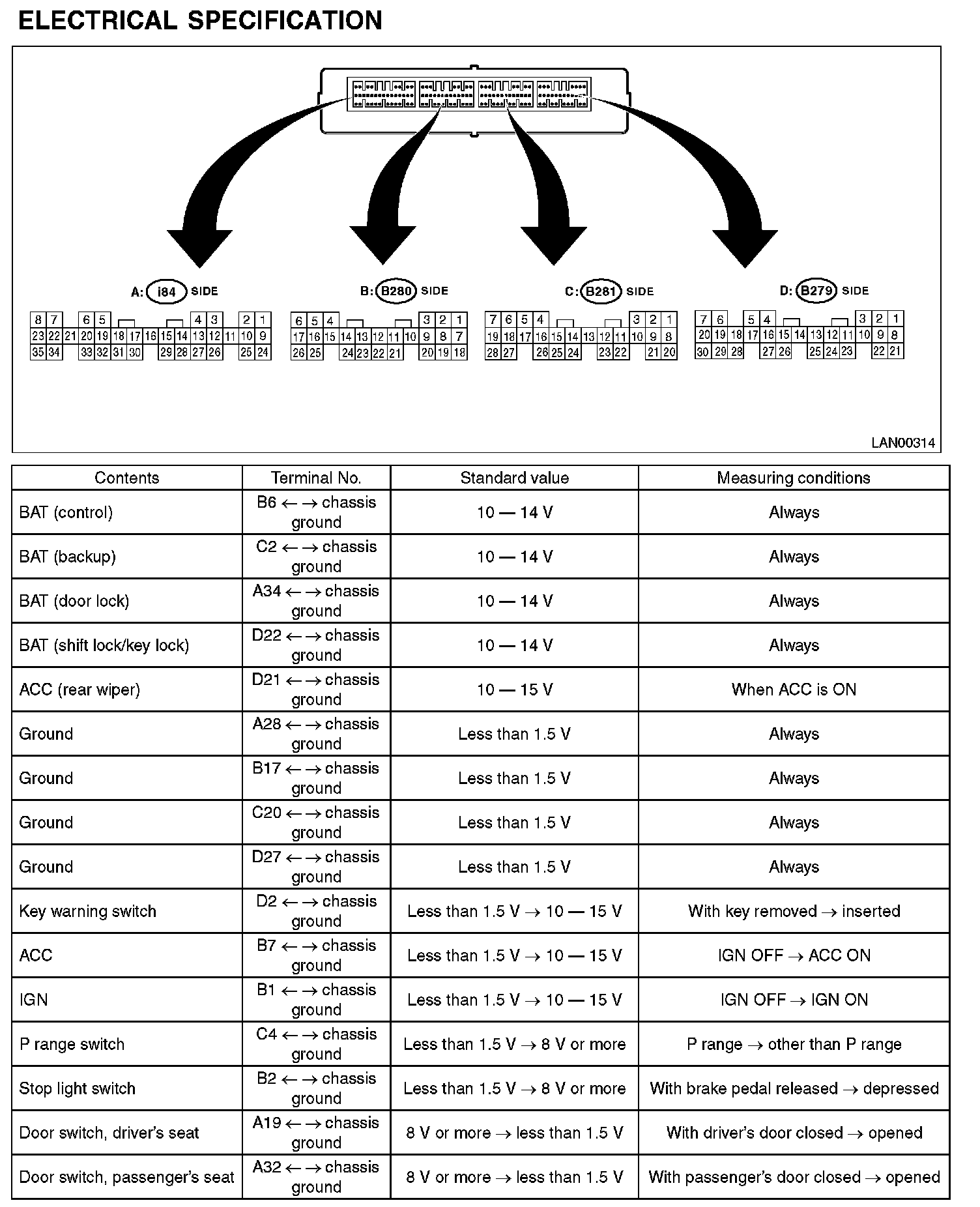

Electrical Specification (Part 1):

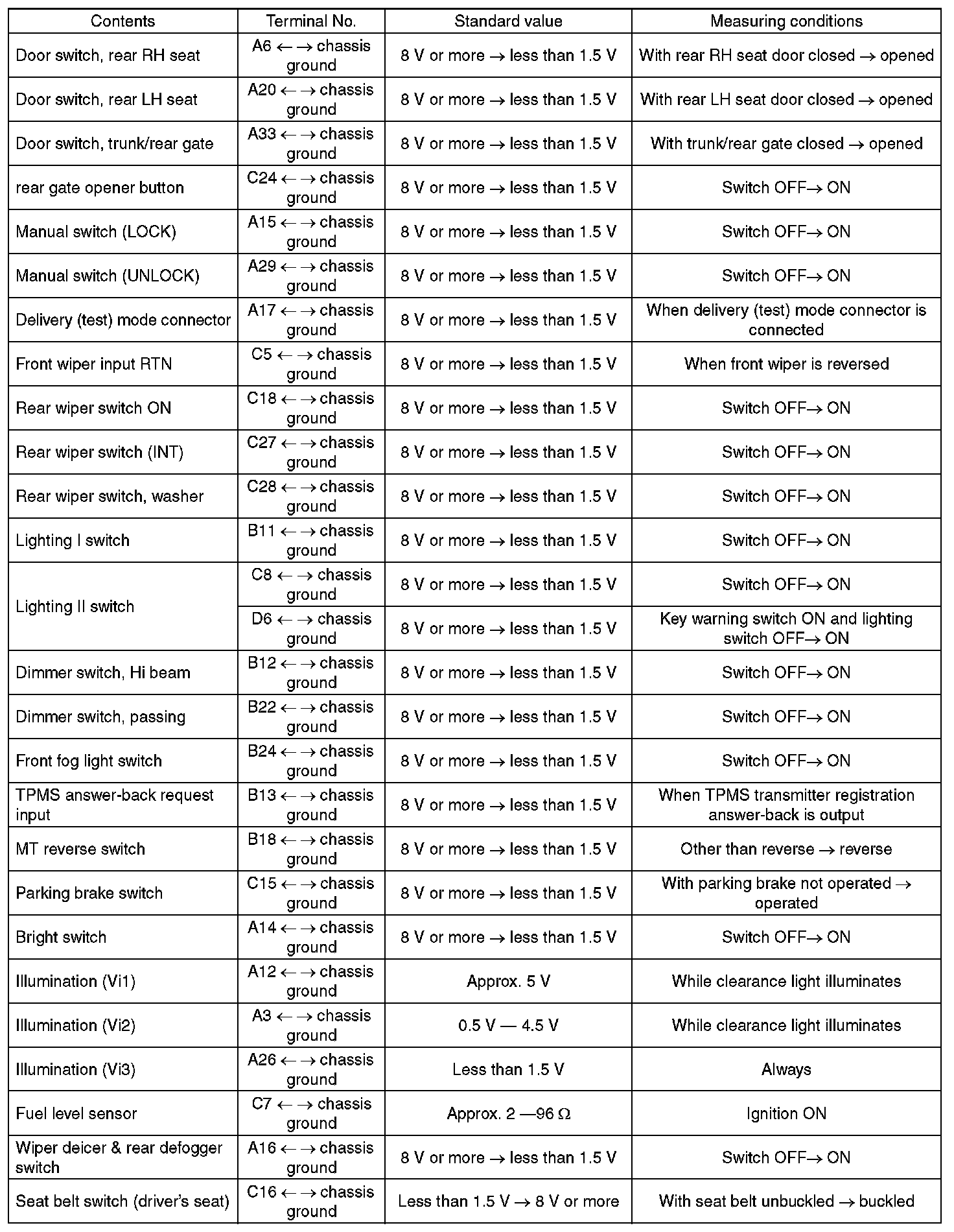

Electrical Specification (Part 2):

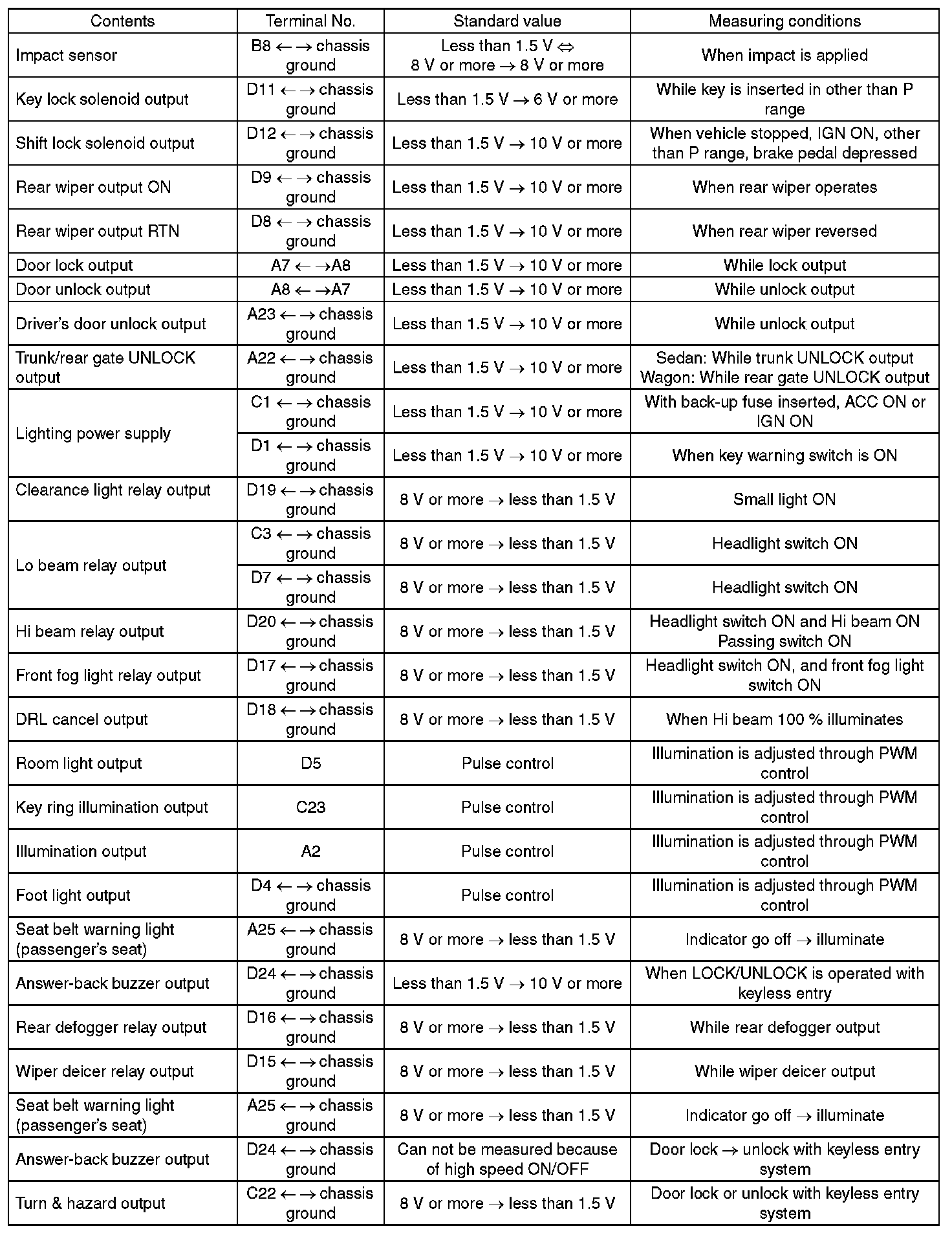

Electrical Specification (Part 3):

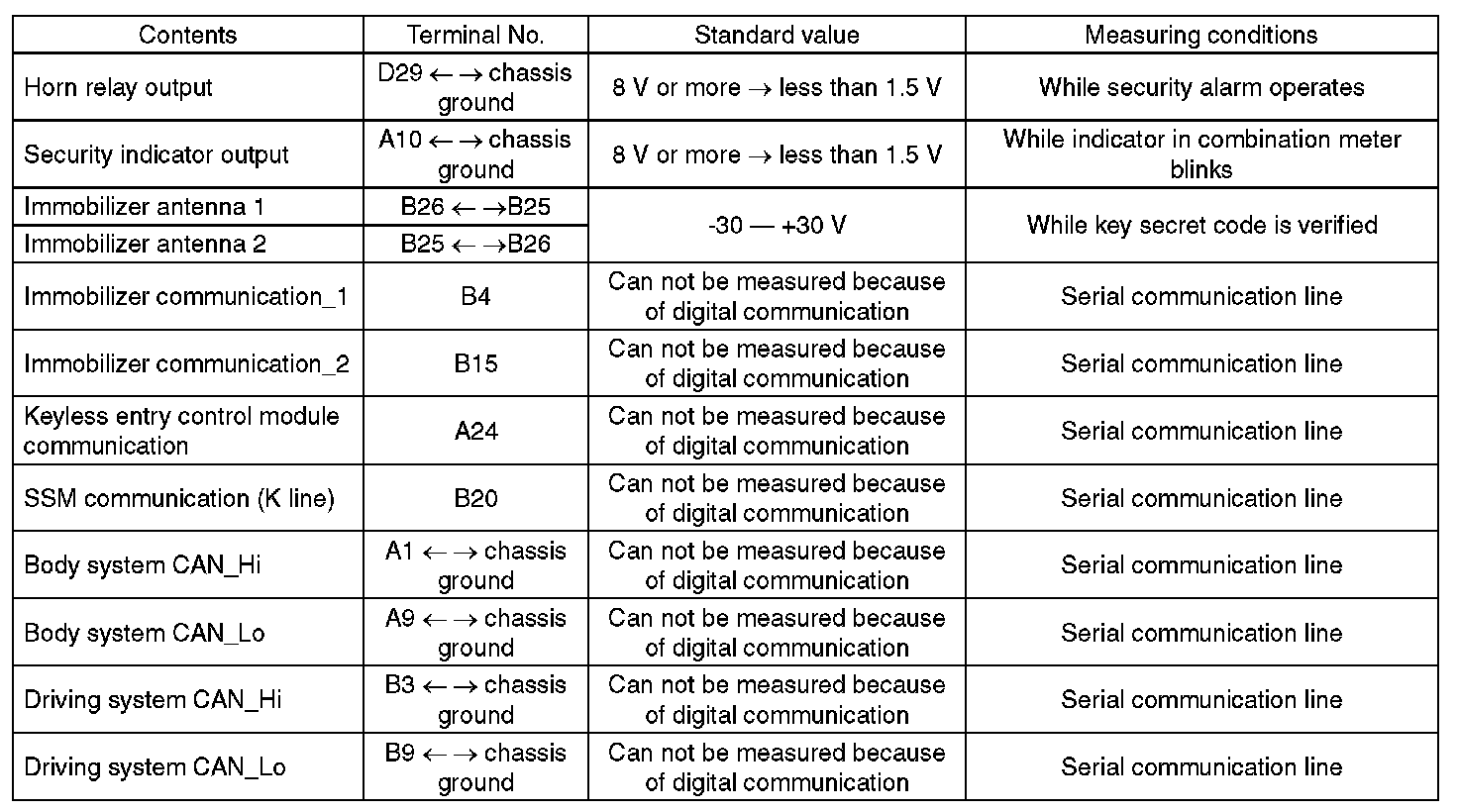

Electrical Specification (Part 4):
