Lift And Jack
>>
Jack-Up Point
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Jack-Up Point

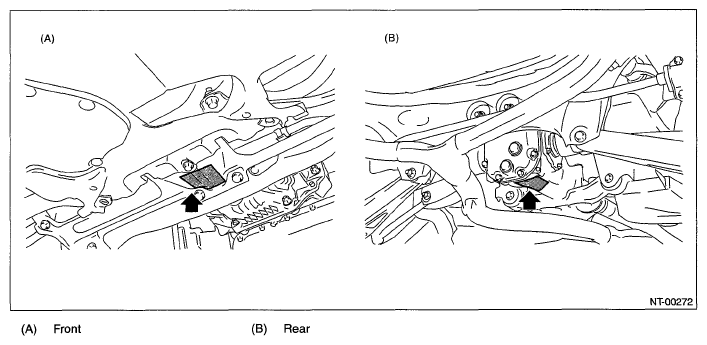

Fig 1: Identifying Jack-Up Points - Front And Rear
Courtesy of SUBARU OF AMERICA, INC.
CAUTION:
If jacking up the front side of the vehicle, make sure that the jack is attached at the center of the jack-up plate not at the sides.
